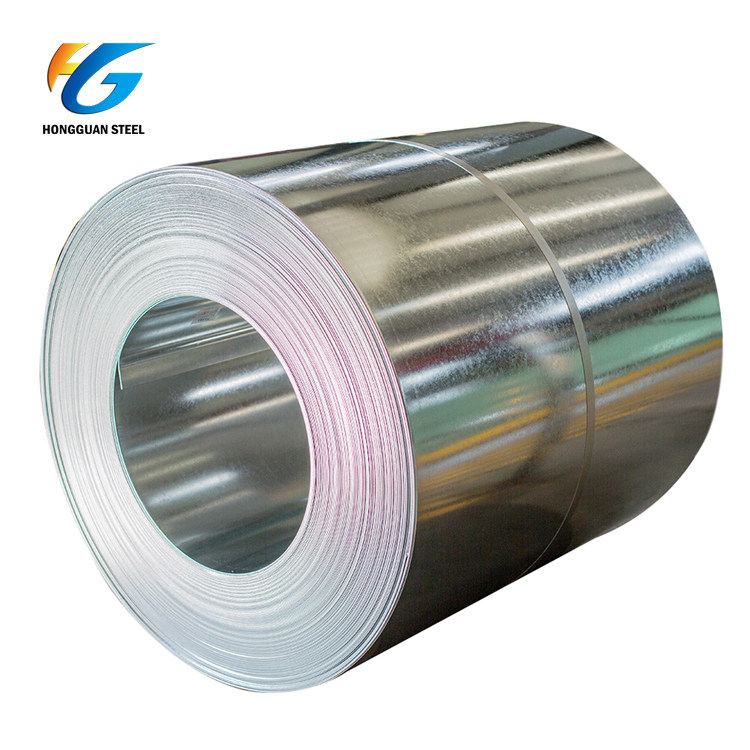

Galvanized steel coils are coated with a layer of zinc, as rust does not attack this protective metal. The outermost layer is all zinc, but successive layers are a mixture of zinc and iron, and the interior is pure steel. These multiple layers are responsible for the metal's amazing properties of withstanding corrosive environments. Zinc also protects steel by acting as a "sacrificial layer". If rust is on the surface of a galvanized steel coil, the zinc will be the first to corrode away. This allows the zinc laid on top of a break or scratch to prevent rust from entering the steel. Galvanized steel coil is an important manufacturing component in countless outdoor, marine or industrial applications.
| Grade | SGCC,DX51D+Z/DC51D+Z,DX52D+Z/DC52D+Z,S220GD-S550GD+Z |
| Thickness | 0.2-4.0mm |
| Width | 900/1000/1219/1200/1220/1250mm or other widths |
| Coil ID | 508 or 610mm |
| Coil weight | 3-10/mT per coil |
| Zinc coating | 20-275g/m2 |
| Tolerance | Thickness:+/-0.02mm |
| Width:+/-2mm | |
| Surface processing | Regular spangle,minimal spangle,zero spangle , |
| bright and big spangle | |
| Coil chemical processing | Chromate, un-chromate passivation and finger resistant treatment |
| Base Material | Cold rolled steel sheet,hot rolled steel sheet,galvanized |
| Surface Treatment | chromed/skin pass/oiled/slightly oiled/dry/anti-fingerprint |
| Coating Thickness | Min. Single Side Coating Thickness: 20 g/m2 |
| Max. Single Side Coating Thickness: 225 g/m2 |
S250GD Galvanized Steel Coil
DX53D Galvanized Steel Coil
SGCC Galvanized Steel Coil
SGCH Galvanized Steel Coil
SGH440 Galvanized Steel Coil
PPGI Galvanized Steel Coil
DX51D DX52D Galvanized Coil
Z100 Z275 Galvanized Coil
S250GD Galvanized Steel Coil
SGH340 Galvanized Steel Coil
DX51D+Z Galvanized Steel Coil
Z40 Z60 Galvanized Coil
Z350 Z80 Galvanized Coil
z85 Galvanized Steel Coil
z180 Galvanized Steel Coil
G90 Galvanized Steel Coil
G60 Galvanized Steel Coil
G40 Galvanized Steel Coil
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
| SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
| SGCD(DX53D+Z) | - | ≥270 | 38 | |||
| SGCE(DX54D+Z) | - | ≥270 | 4 | |||
(1)Fast delivery time, good quality and reasonable price
(2)We can process different finished products according to your requirements
(3)High production volume will shorten your waiting time
(4)Accept the buyer's specification
(5)Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for your visit.
