17-7 PH grade stainless steel is a precipitation hardening stainless steel that offers high strength and hardness, excellent fatigue properties, good corrosion resistance, good formability and minimal distortion after heat treatment. This alloy offers a valuable combination of properties that are particularly suited for aerospace applications. This particular alloy also offers advantages for other applications requiring high strength and good corrosion resistance, while also providing excellent performance for flat springs at temperatures up to 600 ° F (316 ° C).

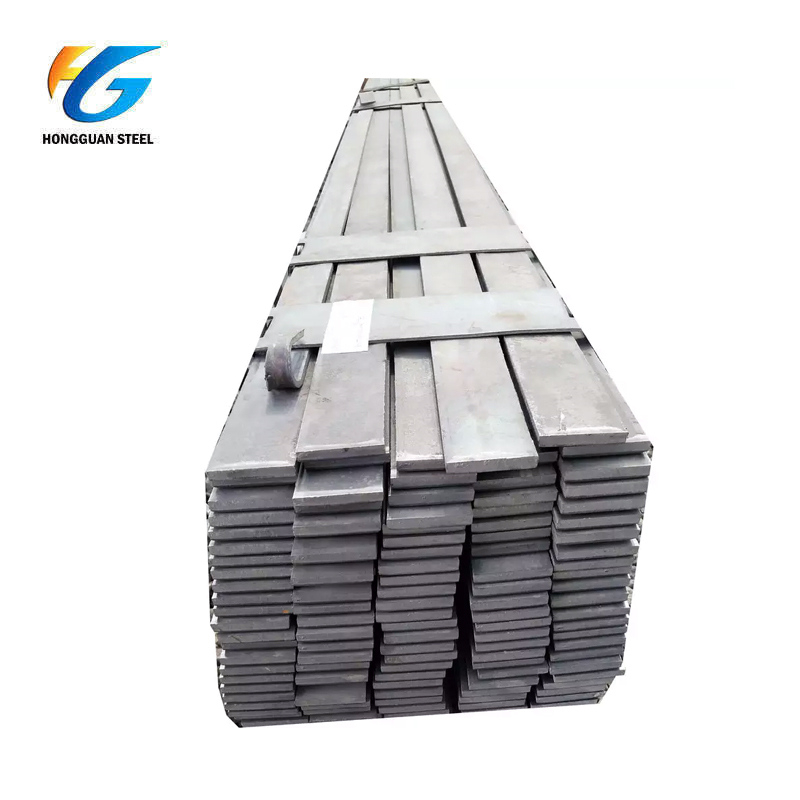

Product Name | Stainless Steel 17-7PH Flat Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| TYPE | Cr | Ni | Al | C | Mn | P | S | Si |
| 7-17 | min: 16.0 max: 18.0 | min: 6.75 max: 7.75 | min: 0.75 max: 1.50 | 0.09 max | 1max | 0.05max | 0.03max | 1max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| 7-17 | 130 | 40 | 35 | B85 |
17-7 PH grade stainless steel is a precipitation hardening stainless steel that offers high strength and hardness, excellent fatigue properties, good corrosion resistance, good formability and minimal distortion after heat treatment. This alloy offers a valuable combination of properties that are particularly suited for aerospace applications. This particular alloy also offers advantages for other applications requiring high strength and good corrosion resistance, while also providing excellent performance for flat springs at temperatures up to 600 ° F (316 ° C).
Product Name | Stainless Steel 17-7PH Flat Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| TYPE | Cr | Ni | Al | C | Mn | P | S | Si |
| 7-17 | min: 16.0 max: 18.0 | min: 6.75 max: 7.75 | min: 0.75 max: 1.50 | 0.09 max | 1max | 0.05max | 0.03max | 1max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| 7-17 | 130 | 40 | 35 | B85 |
