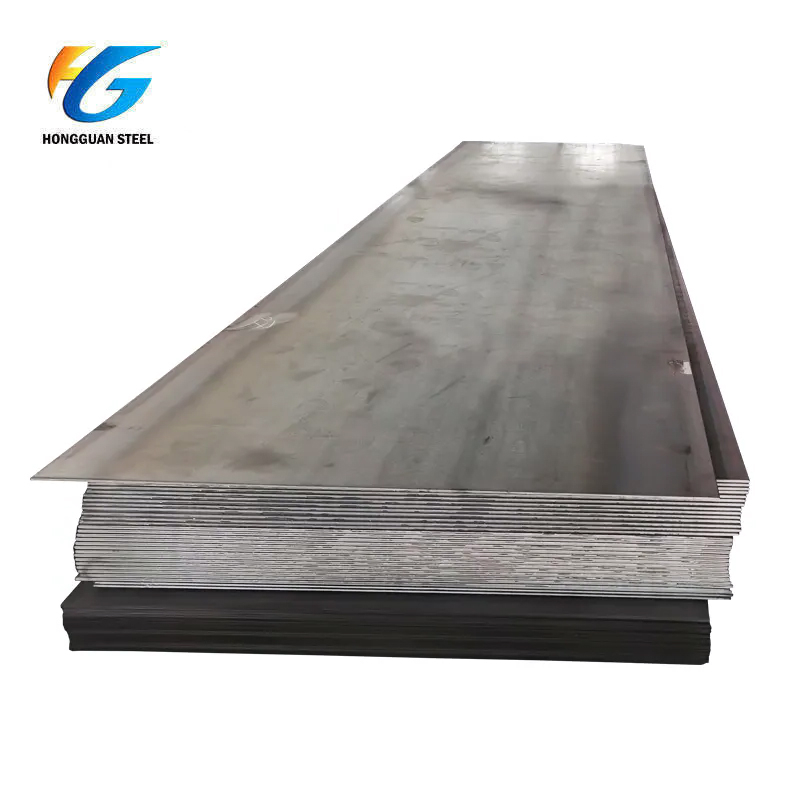

St52 Carbon Steel Plate

St52 steel (St52-3) is an unalloyed structural steel according to DIN 17100:1980, which was abandoned in 2004. According to the German standard DIN 17100, St52 steel is divided into two materials St52-3U (1.0553) and St52-3N (1.0570).
  • As customers' demands

  • Hongguan

ST52 Carbon Steel Plate Manufacturers and Suppliers

St52 is a standard structural steel grade. st52 steel plates are designed with an excellent chemical composition of carbon, silicon, manganese, phosphorus and sulfur. The contents embedded in these plates enhance their resistance to corrosive and oxidizing media. st 52 plates are designed to be more than 6 mm thick. These plates have enhanced resistance to pitting and crevice corrosion. They provide good stability and support for different applications. st52-3 plates are a low manganese carbon grade and do not exert stress on subsequent modules. These robust steel plates can be easily welded in place following standard procedures. The generic St52-3 steel exhibits slightly lower strength and tolerances compared to the St52 plate. These lightweight components comply with different national and international standards. st52 steel sheets are produced in thicknesses below 6 mm and above 0.5 mm. These sheets do not provide stability and increase the aesthetic appeal of the different components.

St52 steel grade has a design density of 7.85 g/cm3 and a hardness of 180 on the Brinell scale. the steel has good weldability and machinability, similar to mild steel. Steel modules are more common in the construction of bridges, buildings, and general engineering. 1.0570 steel works well at extreme and low temperatures. The steel has good impact resistance and is usually supplied in standard normalized conditions. st52 material is designed to have superior mechanical properties. These parts have a minimum tensile strength of 335mpa and a tensile strength between 510 and 630mpa. The item can easily be extended by 21% of the system. License plate St52 equivalent Indian standard is IS 2062 as specified by Bureau of Indian Standards. to learn more about our products or to get a quote for them, contact us for more information.

ST52 Carbon Steel Plate Description

Product Name
Carbon steel plate sheet
Q195,  Q215,Q235,Q345,ST37, A36,45#, 16Mn, SPHC,SGCC,CGCC,etc
Hot Rolled  Thickness:2.75mm-100mm, as Your Request
Cold Rolled Thickness:0.2mm-3mm, as Your Request
600-2500mm as  customer's requirement(( regular width 1 000mm, 1 250mm, 1 500mm )
1000,2000,2440,2500,3000,5800,6000mm  or as customer's requirement
Steel plate applies to  construction field, ships building industry, petroleum,chemical industries,  war and electricity industries,food processing and medical industry, boiler  heat exchanger, machinery and hardware fields,etc.
If you have any  question,please feel free to contact me. we are sure your inquiry or  requirements will get prompt attention.
400,000 tons per year

Carbon Steel Sheet 2

ST52 Carbon Steel Plate Chemical Composition

C % 0.22 (max)
Si % 0.55 (max)
Mn 1.60%
P 0.05%
S 0.05%

Mechanical Properties of ST52 Carbon Steel Plate

Class Kind Thickness Yield Strength Tensile Strength            MPa Elongation
mm Mpa(min) % (min)
A ST 52 Normalized <16 355 510-650 20
16 -40 345 510-650 20
40-60 335 460-580 20
60-100 315 490-630 20
10-150 295 480-630 20
150-250 280 470-630 20

Carbon Steel Plate Production workshop

Carbon Steel Sheet 3


stainless steel Certificates (1)

Our Service/Why Choose Us

(1)Fast delivery time, good quality and reasonable price

(2) We can process different finished products according to your requirements

(3) High production capacity will shorten your waiting time

(4) Accepting buyer's specification

(5) Experienced R&D department

For more details about our products, please contact our sales for more information. Thank you for visiting
