As customers' demands
Hongguan

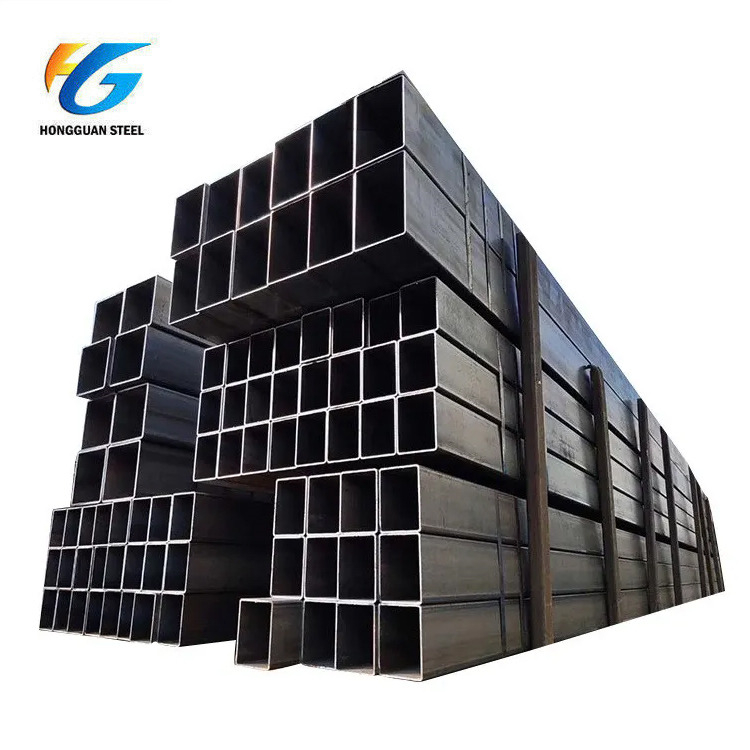

SS400 square tube is one of the most demanding but most commonly used structural steel available in hot rolled form.SS400 grade steel pipe, also known as JIS 3101 steel pipe, is a widely used low alloy carbon steel pipe. This type of steel grade is well known for its high tensile strength and offers excellent properties. The grade includes excellent properties and characteristics that make this grade even more demanding than other structural steel grades.
| Product Type | EN-10025-2 Grade SS400 square Tube |
| Specification | OD15*15mm-400*400mm |
| OD | 15*15-400*400mm, WT0.8-12.0mm |
| Wall Thickness | 0.8~12.0mm |
| Standard | GB, BS, ASTM |
| Steel material | Q195. Q215, Q235, Q345 |
| Size length | 15mm-400mm, WT: 0.313mm |
| Surface Treatment | Bared, Black Painted (varnish coating), Galvanized, With Oiled, 3 PE, FBE, corrosion resistant coating |
| Section Shape | Square and rectangular |
| Package | Bundle, In Bulk, Bags square galvanised steel hollow section tube, Clients’ Requirements |
| USA | Germany | Japan | France | England | Canada | European old | Belgium | Spain |
| DIN,WNr | JIS | AFNOR | BS | HG | EN | NBN | UNE | |
| A283D | RSt42-2 | SS400 | E28-2 | 161-430 | 260W | Fe430B | AE295B | AE255B |
| A529 | St 44-2 | 43A | 260WT | |||||
| Gr.D | 43B |
| C | Mn | P | S | N | Cu | CEV |
| max 0.22 | max 1.5 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.42 |
| Tensile strength Rm | Minimum elongation – A | ||||||||||
| Minimum yield strength Reh | MPa | Lo = 5,65 * √So (%) | |||||||||
| MPa | |||||||||||
| Steel grade | Nominal thickness | Nominal thickness | Nominal thickness | ||||||||
| mm | mm | mm | |||||||||
| ≤16 | >16 | >40 | >63 | >80 | >100 | >3 | >100 | >3 | >40 | >63 | |
| ≤40 | ≤63 | ≤80 | ≤100 | ≤125 | ≤100 | ≤125 | ≤40 | ≤63 | ≤100 | ||
| SS400 | 275 | 265 | 255 | 245 | 235 | 225 | 410-560 | 400-540 | 23 | 22 | 21 |
Competitive price and quality from our own factory
Approved by ISO9001, CE, SGS every year
Best service with 24 hour's reply
Flexible payment with T/T,L/C
Smooth production ability(50000tons/month)
Quick delivery and standard exporting package
OEM/ODM
SS400 square tube is one of the most demanding but most commonly used structural steel available in hot rolled form.SS400 grade steel pipe, also known as JIS 3101 steel pipe, is a widely used low alloy carbon steel pipe. This type of steel grade is well known for its high tensile strength and offers excellent properties. The grade includes excellent properties and characteristics that make this grade even more demanding than other structural steel grades.
| Product Type | EN-10025-2 Grade SS400 square Tube |
| Specification | OD15*15mm-400*400mm |
| OD | 15*15-400*400mm, WT0.8-12.0mm |
| Wall Thickness | 0.8~12.0mm |
| Standard | GB, BS, ASTM |
| Steel material | Q195. Q215, Q235, Q345 |
| Size length | 15mm-400mm, WT: 0.313mm |
| Surface Treatment | Bared, Black Painted (varnish coating), Galvanized, With Oiled, 3 PE, FBE, corrosion resistant coating |
| Section Shape | Square and rectangular |
| Package | Bundle, In Bulk, Bags square galvanised steel hollow section tube, Clients’ Requirements |
| USA | Germany | Japan | France | England | Canada | European old | Belgium | Spain |
| DIN,WNr | JIS | AFNOR | BS | HG | EN | NBN | UNE | |
| A283D | RSt42-2 | SS400 | E28-2 | 161-430 | 260W | Fe430B | AE295B | AE255B |
| A529 | St 44-2 | 43A | 260WT | |||||
| Gr.D | 43B |
| C | Mn | P | S | N | Cu | CEV |
| max 0.22 | max 1.5 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.42 |
| Tensile strength Rm | Minimum elongation – A | ||||||||||
| Minimum yield strength Reh | MPa | Lo = 5,65 * √So (%) | |||||||||
| MPa | |||||||||||
| Steel grade | Nominal thickness | Nominal thickness | Nominal thickness | ||||||||
| mm | mm | mm | |||||||||
| ≤16 | >16 | >40 | >63 | >80 | >100 | >3 | >100 | >3 | >40 | >63 | |
| ≤40 | ≤63 | ≤80 | ≤100 | ≤125 | ≤100 | ≤125 | ≤40 | ≤63 | ≤100 | ||
| SS400 | 275 | 265 | 255 | 245 | 235 | 225 | 410-560 | 400-540 | 23 | 22 | 21 |
Competitive price and quality from our own factory
Approved by ISO9001, CE, SGS every year
Best service with 24 hour's reply
Flexible payment with T/T,L/C
Smooth production ability(50000tons/month)
Quick delivery and standard exporting package
OEM/ODM
