As customers' demands
Hongguan

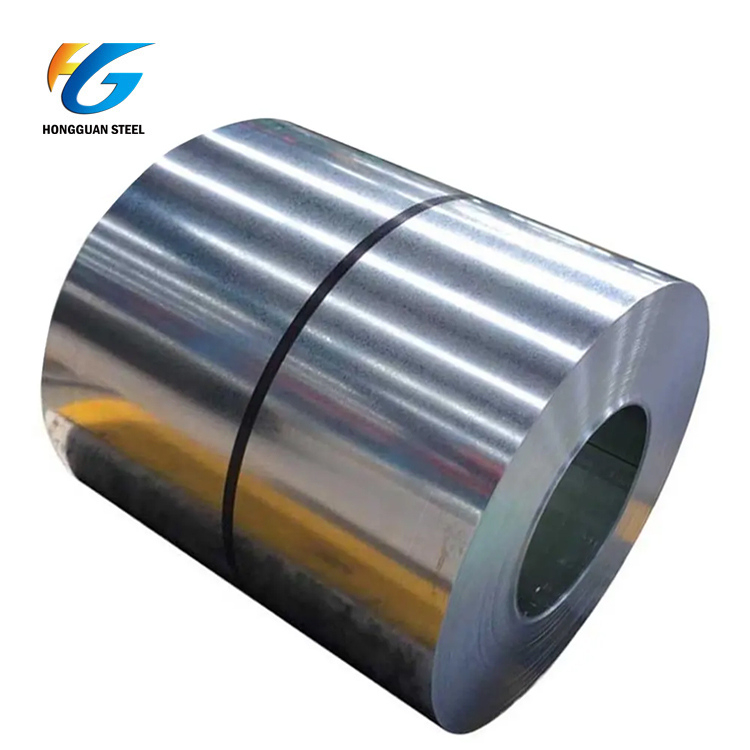

Galvanized steel coils are coated with a layer of zinc, as rust does not attack this protective metal. The outermost layer is all zinc, but successive layers are a mixture of zinc and iron, and the interior is pure steel. These multiple layers are responsible for the metal's amazing properties of withstanding corrosive environments. Zinc also protects steel by acting as a "sacrificial layer". If rust is on the surface of a galvanized steel coil, the zinc will be the first to corrode away. This allows the zinc laid on top of a break or scratch to prevent rust from entering the steel. Galvanized steel coil is an important manufacturing component in countless outdoor, marine or industrial applications.
| Product Name | Galvanized Steel Strip / Coil / GI coil |
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, |
| SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ | |
| CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement | |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m 2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by |
| seven steel belt.or according to customer's requirement | |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
| Grade | Euronorm | China GB | Japanese JIS | US ASTM | German | ||
| EN10130-2006 | GB/T 5213-2008 | JISG3141-2005 | ASTMA1008-2005 | Q/SGZGS 324.3-2011 | |||
| SPCG | DC06 | DC06 | SPCG | EDDS | St16 | ||
| Grade | Element | C | Mn | P | S |
| SPCG | Min. | - | - | - | - |
| Max. | 0.2 | 0.25 | 0.02 | 0.02 |
| Tensile strength | Yield strength | Elongation |
| ≥270 MPa | ≤190 MPa | 32~42% |
(1)Fast delivery time, good quality and reasonable price
(2)We can process different finished products according to your requirements
(3)High production volume will shorten your waiting time
(4)Accept the buyer's specification
(5)Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for your visit.
