As customers' demands
Hongguan

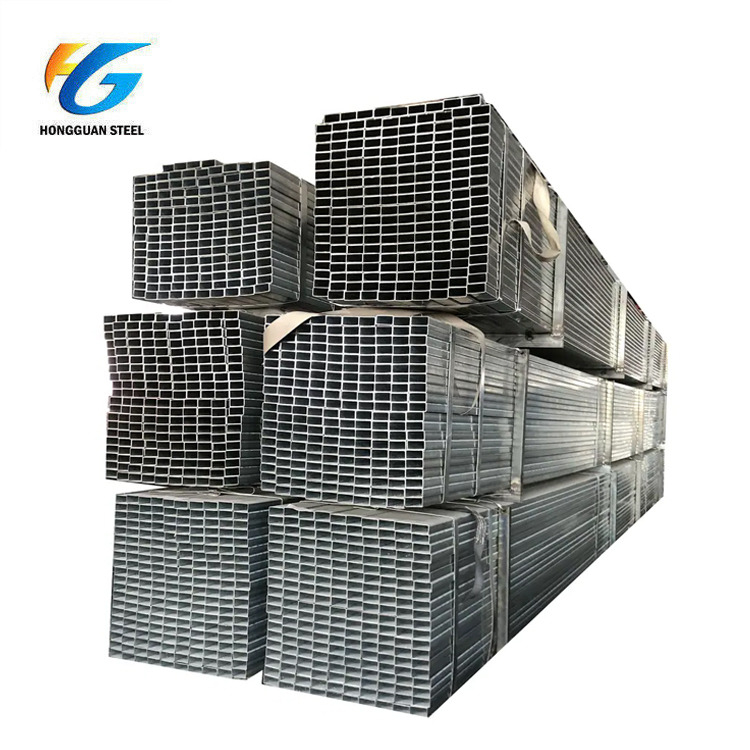

S355J0 grade square tube is a structural steel known for its high tensile strength and corrosion resistance. This material is widely preferred by industrialists due to its excellent properties and performance. It is characterized by high tensile strength, corrosion resistance, durability, workability, weldability and long service life.
| Product Type | EN-10025-2 Grade S355J0 square Tube |
| Dimension Range | S:40-400mm R:50*30 500*300mm |
| OD | 20~3020mm In Theory |
| Standard | GB, BS, ASTM |
| Steel material | Q195. Q215, Q235, Q345 |
| Size length | Any Length Below 16 Meter |
| Surface Treatment | Bared, Black Painted (varnish coating), Galvanized, With Oiled, 3 PE, FBE, corrosion resistant coating |
| Section Shape | Square and rectangular |
| Package | Bundle, In Bulk, Bags square galvanised steel hollow section tube, Clients’ Requirements |
| USA | Germany | Japan | France | England | Norway | European old | Belgium | Spain |
| DIN,WNr | JIS | AFNOR | BS | NS | EN | NBN | UNE | |
| A441 | St52-3U | SS490B/td> | E36-3 | 50C | NS12153 | Fe510C | AE355C | AE355C |
| A633 |
| C | Si | Mn | P | S | N | Cu | CEV |
| max 0.22 | max 0.55 | max 1.6 | max 0.035 | max 0.035 | max 0.012 | max 0.55 | max 0.47 |
| Tensile strength Rm | Minimum elongation – A | Notch impact test | ||||||||||||
| Minimum yield strength Reh | MPa | Lo = 5,65 * √So (%) | ||||||||||||
| MPa | ||||||||||||||
| Steel grade | Nominal thickness | Nominal thickness | Nominal thickness | Temperature | Min. absorbed energy | |||||||||
| mm | mm | mm | ||||||||||||
| ≤16 | >16 | >40 | >63 | >80 | >100 | >3 | >100 | >3 | >40 | >63 | >100 | °C | J | |
| ≤40 | ≤63 | ≤80 | ≤100 | ≤125 | ≤100 | ≤125 | ≤40 | ≤63 | ≤100 | ≤125 | ||||
| S355J0 | 355 | 345 | 335 | 325 | 315 | 295 | 470-630 | 450-600 | 22 | 21 | 20 | 18 | 0 | 27 |
Competitive price and quality from our own factory
Approved by ISO9001, CE, SGS every year
Best service with 24 hour's reply
Flexible payment with T/T,L/C
Smooth production ability(50000tons/month)
Quick delivery and standard exporting package
OEM/ODM
