As customers' demands
Hongguan

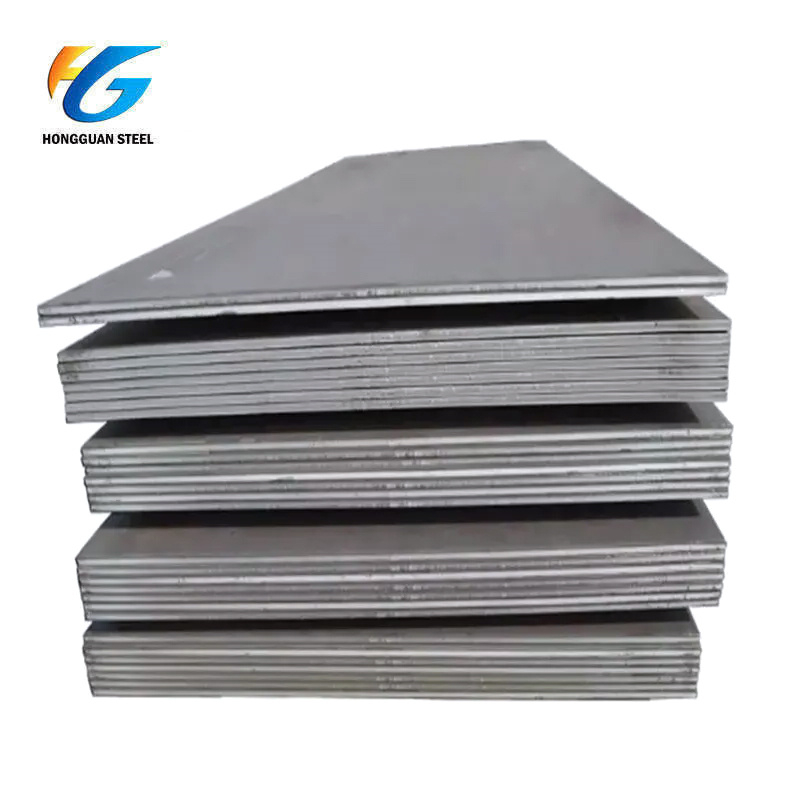

S355J0 is the latest version of DINEN10025-2 standard.S355J0 steel plate, as a low-alloy high-strength steel plate, has a minimum yield strength of 355Mpa and is subject to a 0 °C impact test in production ('J0' means 0 °C impact test).S355J0 steel plate is used in applications S355J0 steel plate is widely used in the construction and manufacture of bridges, ships, power plant equipment, lifting and transportation machinery and other engineering welded structures.
| Specifications | ASTM / ASME |
| Standard | EN 10025-2: 2004 Hot rolled products of structural steels. Technical delivery conditions for non-alloy structural steels |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Size | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | EN 10025 S355J0 DIN 1.0553 |
| Steel grade | C | Mn | Si | P | S | N | Cu | Other | CEV | ||||
| max. | max. | max. | max. | max. | max. | max. | max. | max. | |||||
| % | % | % | % | % | % | % | % | % | |||||
| Nominal thickness | Nominal thickness | ||||||||||||
| mm | mm | ||||||||||||
| ≤16 | >16 | >40 | ≤30 | >30 | >40 | ||||||||
| ≤40 | ≤40 | ≤125 | |||||||||||
| S355J0 | 0,20 | 0,20 | 0,22 | 1,60 | 0,55 | 0,035 | 0,035 | 0,012 | 0,55 | – | 0,45 | 0,47 | 0,47 |
| Tensile strength Rm | Minimum elongation – A | Notch impact test | ||||||||||||
| Minimum yield strength Reh | MPa | Lo = 5,65 * √So (%) | ||||||||||||
| MPa | ||||||||||||||
| Steel grade | Nominal thickness | Nominal thickness | Nominal thickness | Temperature | Min. absorbed energy | |||||||||
| mm | mm | mm | ||||||||||||
| ≤16 | >16 | >40 | >63 | >80 | >100 | >3 | >100 | >3 | >40 | >63 | >100 | °C | J | |
| ≤40 | ≤63 | ≤80 | ≤100 | ≤125 | ≤100 | ≤125 | ≤40 | ≤63 | ≤100 | ≤125 | ||||
| S355J0 | 355 | 345 | 335 | 325 | 315 | 295 | 470-630 | 450-600 | 22 | 21 | 20 | 18 | 0 | 27 |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
