As customers' demands
Hongguan

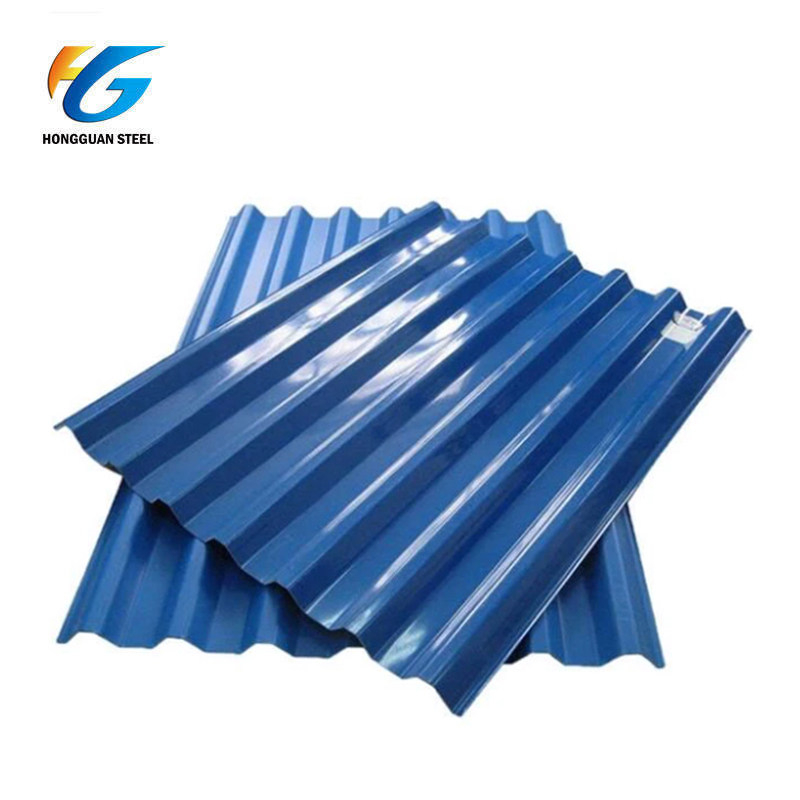

Corrugated galvanized roofing sheet begins as carbon steel sheet and is then pressed into a three-dimensional pattern by a series of rolls during the cold roll forming process, which is known as corrugation. Different roll die arrangements produce different types of corrugation, including waves, squares and angles. Cold rolling results in a product that is thicker, stronger and has a better appearance than hot formed steel. The finished sheet is then cut to the desired length.
| Commodity | Q235B Corrugated galvanized roofing sheet | |||
| Product | Galvanized Steel | Galvalume Steel | Prepainted Steel (PPGI) | Prepainted Steel (PPGL) |
| Thickness(mm) | 0.13-1.5 | 0.13-0.8 | 0.13-0.8 | 0.13-0.8 |
| Width(mm) | 750-1250 | 750-1250 | 750-1250 | 750-1250 |
| Surface Treatment | Zinc | Aluzinc coated | Ral color coated | Ral color coated |
| Standard | AISI ASTM JIS DIN GB EN | |||
| Grade | SGCC,SGHC,DX51D,SGLCC,SGLHC,CGCC,CGLCC | |||
| Width(mm) | 610-1250mm (after corrugated) Raw material width 762mm to 665mm(after corrugated) Raw material width 914mm to800mm(after corrugated) Raw material width 1000mm to 900mm(after corrugated) Raw material width 1200mm to 1000mm(after corrugated) | |||
| Shape | According to different application requirements,the profiled steel sheet can be pressed into a wave type,a Ttype,a V type,a rib type and the like. | |||
| Color coating（Um) | Top:5-25um Back:5-20 um or as client's requirement | |||
| Paint Color | RAL code No. or customer's requirement | |||
| Surface treatment | Chromed passivation,anti-finger print,skinpassed.Ral color. | |||
| Pallet weight | 2-5MT customer's requirement | |||
| Quality | Softy,half hard and hard quality | |||
| Packaging | Export standard ,seaworthy | |||
Corrugated Roof Sheet
Corrugated roof sheet is also called roof sheet. It uses colored coated steel sheet, galvanized steel sheet and other metal plates to roll and cold bend into various wave profiled boards.It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain proof, long service life and maintenance free.It has been widely popularized and applied.
Corrugated galvanized roofing sheet begins as carbon steel sheet and is then pressed into a three-dimensional pattern by a series of rolls during the cold roll forming process, which is known as corrugation. Different roll die arrangements produce different types of corrugation, including waves, squares and angles. Cold rolling results in a product that is thicker, stronger and has a better appearance than hot formed steel. The finished sheet is then cut to the desired length.
| Commodity | Q235B Corrugated galvanized roofing sheet | |||
| Product | Galvanized Steel | Galvalume Steel | Prepainted Steel (PPGI) | Prepainted Steel (PPGL) |
| Thickness(mm) | 0.13-1.5 | 0.13-0.8 | 0.13-0.8 | 0.13-0.8 |
| Width(mm) | 750-1250 | 750-1250 | 750-1250 | 750-1250 |
| Surface Treatment | Zinc | Aluzinc coated | Ral color coated | Ral color coated |
| Standard | AISI ASTM JIS DIN GB EN | |||
| Grade | SGCC,SGHC,DX51D,SGLCC,SGLHC,CGCC,CGLCC | |||
| Width(mm) | 610-1250mm (after corrugated) Raw material width 762mm to 665mm(after corrugated) Raw material width 914mm to800mm(after corrugated) Raw material width 1000mm to 900mm(after corrugated) Raw material width 1200mm to 1000mm(after corrugated) | |||
| Shape | According to different application requirements,the profiled steel sheet can be pressed into a wave type,a Ttype,a V type,a rib type and the like. | |||
| Color coating（Um) | Top:5-25um Back:5-20 um or as client's requirement | |||
| Paint Color | RAL code No. or customer's requirement | |||
| Surface treatment | Chromed passivation,anti-finger print,skinpassed.Ral color. | |||
| Pallet weight | 2-5MT customer's requirement | |||
| Quality | Softy,half hard and hard quality | |||
| Packaging | Export standard ,seaworthy | |||
Corrugated Roof Sheet
Corrugated roof sheet is also called roof sheet. It uses colored coated steel sheet, galvanized steel sheet and other metal plates to roll and cold bend into various wave profiled boards.It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain proof, long service life and maintenance free.It has been widely popularized and applied.
