As customers' demands
Hongguan

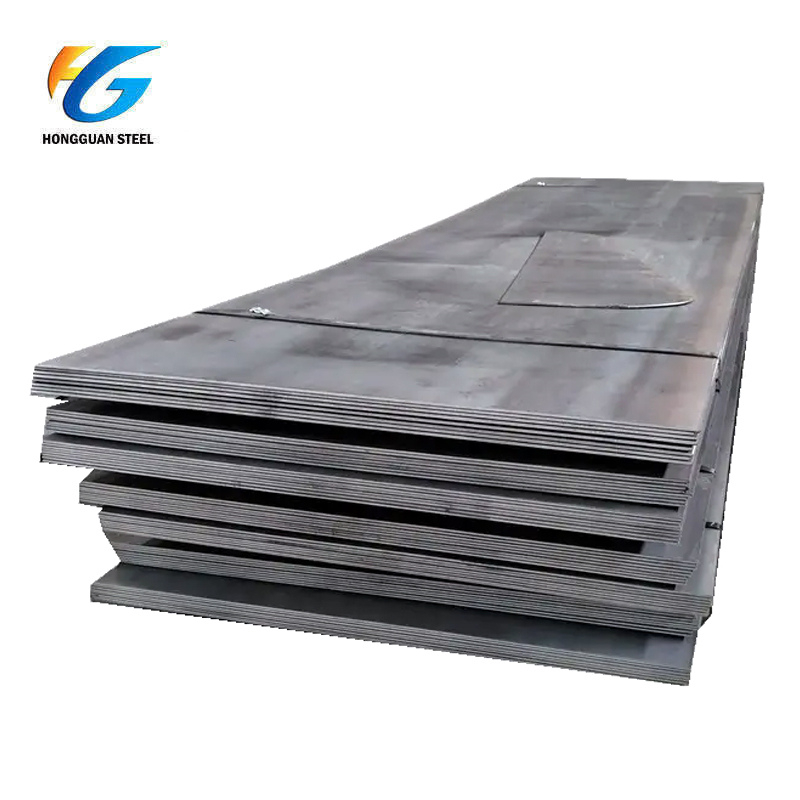

S420NL steel plate is one of the steel grades of EN 10025-3 standard steel. It contains steel grades such as S275N, S460N, S275NL, S420N, S355NL and A460NL. however, all grades are offered in the quality specified by the industry during ordering and enquiry. Shandong Hongguan Steel Group Co., Ltd. is fully involved in providing quality steel sheets using high quality raw materials. The production process of steel plates is well improved with the help of latest technology and modern tools. Moreover, a team of professional staff is working hard to bring out the best possible quality of the product.
S420NL steel plates are produced for the precision industry and these plates are manufactured to a higher standard. The products offered by this industry to the buyers are available in various specifications as per the requirements of the clients. The suppliers also offer customized plate designs as per the specifications provided by the clients. This industry is offering these steel sheets to the buyers at reasonable prices.
Buyers can now order and get great discounts.
| Specifications | ASTM / ASME |
| Standard | EN 10025-3: 2004 Hot rolled products of structural steels. Technical delivery conditions for normalized/normalized rolled weldable fine grain structural steels |
| EN 10113-2: 1993 Hot-rolled products in weldable fine grain structural steels. Delivery conditions for normalized/normalized rolled steels | |
| Classification | Alloy special structural steel |
| Thickness | 5mm to 150mm |
| Width | 1000mm to 4500mm |
| Length | 3000mm to 18000mm |
| Dimension range | 2-400mm * 1000-3800mm * 3000-18000mm |
| Supply Condition | As Rolled, Vacuum Degassing, Furnace Normalizing, Simulated Post-Weld Heat Treatment or as per customer requirement, Normalized Rolling |
| Grade | Steel S420NL ( 1.8912) |
| Grade | C % | Si % | Mn % | P % | S % | V % | AL % | Cr % |
| S420NL | 0.2 | 0.6 | 1.0-1.7 | 0.025 | 0.03 | 0.02 | 0.02 | 0.3 |
| Cu % | Mo % | Nb % | Ni % | Ti % | N % | |||
| 0.55 | 0.1 | 0.05 | 0.8 | 0.05 | 0.025 |
| Grade | Thickness(mm) | Min Yield (Mpa) | Tensile(MPa) | Elongation(%) | Min Impact Energy | |
| S420NL | 8mm-100mm | 360Map-420Mpa | 520-680Mpa | 19% | -50 | 27J |
| 101mm-200mm | 330Mpa-360Mpa | 500-650Mpa | 18% | -50 | 27J | |
| 201mm-250mm | 320Mpa-330Mpa | 500-650Mpa | 18% | -50 | 27J | |
| The min impact energy is longitudinal energy | ||||||
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
S420NL steel plate is one of the steel grades of EN 10025-3 standard steel. It contains steel grades such as S275N, S460N, S275NL, S420N, S355NL and A460NL. however, all grades are offered in the quality specified by the industry during ordering and enquiry. Shandong Hongguan Steel Group Co., Ltd. is fully involved in providing quality steel sheets using high quality raw materials. The production process of steel plates is well improved with the help of latest technology and modern tools. Moreover, a team of professional staff is working hard to bring out the best possible quality of the product.
S420NL steel plates are produced for the precision industry and these plates are manufactured to a higher standard. The products offered by this industry to the buyers are available in various specifications as per the requirements of the clients. The suppliers also offer customized plate designs as per the specifications provided by the clients. This industry is offering these steel sheets to the buyers at reasonable prices.
Buyers can now order and get great discounts.
| Specifications | ASTM / ASME |
| Standard | EN 10025-3: 2004 Hot rolled products of structural steels. Technical delivery conditions for normalized/normalized rolled weldable fine grain structural steels |
| EN 10113-2: 1993 Hot-rolled products in weldable fine grain structural steels. Delivery conditions for normalized/normalized rolled steels | |
| Classification | Alloy special structural steel |
| Thickness | 5mm to 150mm |
| Width | 1000mm to 4500mm |
| Length | 3000mm to 18000mm |
| Dimension range | 2-400mm * 1000-3800mm * 3000-18000mm |
| Supply Condition | As Rolled, Vacuum Degassing, Furnace Normalizing, Simulated Post-Weld Heat Treatment or as per customer requirement, Normalized Rolling |
| Grade | Steel S420NL ( 1.8912) |
| Grade | C % | Si % | Mn % | P % | S % | V % | AL % | Cr % |
| S420NL | 0.2 | 0.6 | 1.0-1.7 | 0.025 | 0.03 | 0.02 | 0.02 | 0.3 |
| Cu % | Mo % | Nb % | Ni % | Ti % | N % | |||
| 0.55 | 0.1 | 0.05 | 0.8 | 0.05 | 0.025 |
| Grade | Thickness(mm) | Min Yield (Mpa) | Tensile(MPa) | Elongation(%) | Min Impact Energy | |
| S420NL | 8mm-100mm | 360Map-420Mpa | 520-680Mpa | 19% | -50 | 27J |
| 101mm-200mm | 330Mpa-360Mpa | 500-650Mpa | 18% | -50 | 27J | |
| 201mm-250mm | 320Mpa-330Mpa | 500-650Mpa | 18% | -50 | 27J | |
| The min impact energy is longitudinal energy | ||||||
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
