As customers' demands
Hongguan

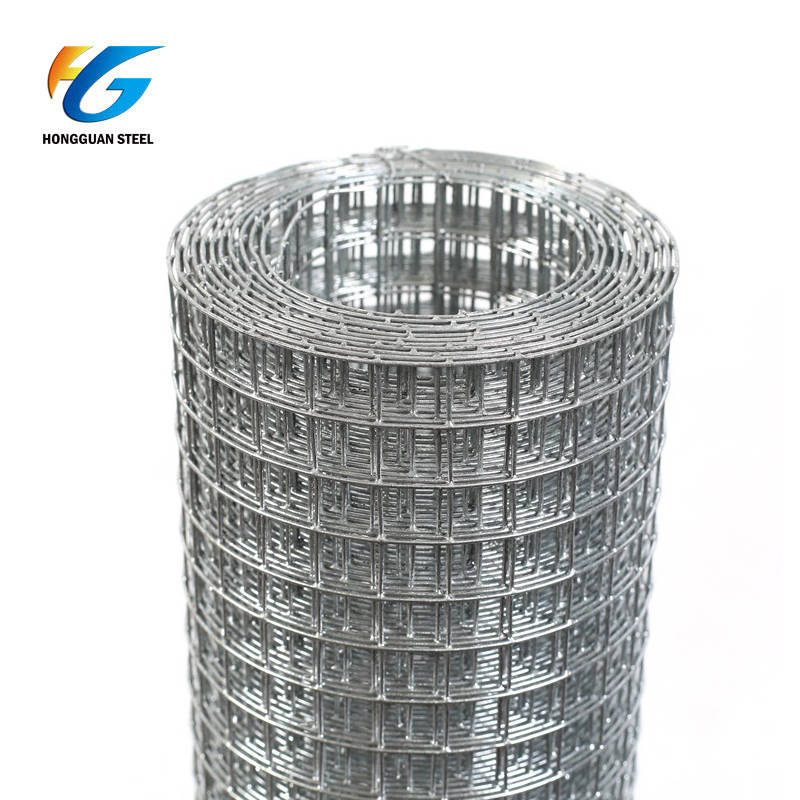

Galvanized steel wire mesh is divided into two types: hot-dip galvanized steel wire mesh and cold-dip galvanized steel wire mesh. The galvanized steel wire mesh is made of high-quality low-carbon steel wire through precise automatic mechanical technology and electric welding. The mesh surface is flat, the structure is firm, and the integrity is strong. Even if the galvanized steel wire mesh is partially cut or partially subjected to pressure, it will not loosen Phenomenon, after the steel mesh is formed, galvanizing (hot-dip) has good corrosion resistance and has the advantages that the general steel mesh does not have. It can be used as an external wall insulation series.
| Specification | ||
| Opening | Wire Diameter | |
| Inch | metric Unit(mm) | |
| 1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: | ||
| 1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request | ||
(1)Fast delivery time, good quality and reasonable price
(2)We can process different finished products according to your requirements
(3)High production volume will shorten your waiting time
(4)Accept the buyer's specification
(5)Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for your visit
