EN -354 materials offer ductility, good toughness, tensile strength, non-corrosiveness and greater durability. In addition, these excellent quality steel alloy rods offer flexibility, better heat distribution, etc.
We offer EN -354 round bars in specified custom sizes as per the requirements of our clients. Owing to its versatility, these high grade bars are widely used in many industrial sectors.
It has excellent creep strength, good robustness, outstanding stability, and superior resistance to rust and stress corrosion cracking. The easy-to-install round bars are widely used over various manufacturing industries.

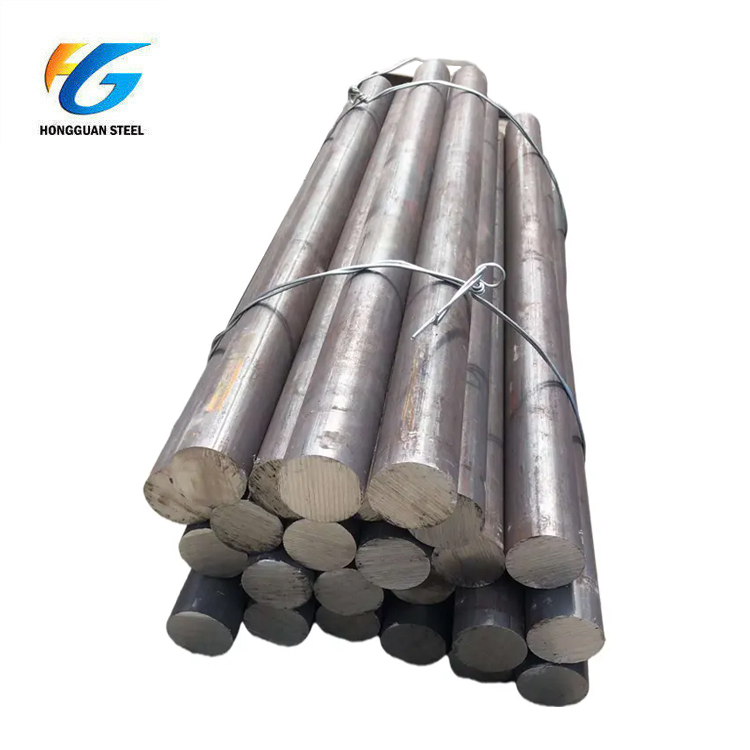

Product Name | En354 Carbon Steel Bar/Rod |
Carbon structure steel | Q195, Q215, Q235, Q275 |
Low alloy high strength structure steel | Q295, Q345, Q390, Q420, Q460 |
Prime Carbon structure steel | 10#, 20#, 35#, 45#, 60#, 20Mn, 65Mn, B2, B3, JM20, SH45,S45C, C45 1015 1020 1025 1030 1035 1045 1050 |
Outer diameter | 0.8mm-500mm |
Technology | hot rolled/cold rolled/cold drawn/forged |
Length | 1-12m/customized |
Other sections | Angle bar/Square bar/Flat bar/Flat bar |
Standard | GB/T799,ASTM A29,A108,A321,A575,BS970,DIN1652,JIS G4051 |
Surface | Black painted,galvanized |
Advantages | High strength, good weldability, good machining performance, good corrosion resistance |
Shipment time | 7-15 days subject to the clients' requirement and quantity |
USA | Japan | Germany | U.K. | France | Italy | Spain | Sweden | China | ||
AISI/SAE | JIS | W‐nr. | DIN | BS | EN | AFNOR | UNI | UNE | SS | |
A570.36 | STKM 12A | 1.0038 | RSt.37‐2 | 4360 | ‐ | E 24‐2 | ‐ | ‐ | 1311 | 15 |
STKM 12C | 40 C | Ne | ||||||||
1015 | ‐ | 1.0401 | C15 | 080M15 | ‐ | CC12 | C15, C16 | F.111 | 1350 | 15 |
1020 | ‐ | 1.0402 | C22 | 050A20 | 2C | CC20 | C20, C21 | F.112 | 1450 | 20 |
1213 | SUM22 | 1.0715 | 9SMn28 | 230M07 | 1A | S250 | CF9SMn28 | F.2111 | 1912 | Y15 |
11SMn28 | ||||||||||
12L13 | SUM22L | 1.0718 | 9SMnPb28 | ‐ | ‐ | S250Pb | CF9SMnPb28 | 11SMnPb28 | 1914 | ‐ |
‐ | ‐ | 1.0722 | 10SPb20 | ‐ | ‐ | 10PbF2 | CF10Pb20 | 10SPb20 | ‐ | ‐ |
1215 | ‐ | 1.0736 | 9SMn36 | 240M07 | 1B | S300 | CF9SMn36 | 12SMn35 | ‐ | Y13 |
12L14 | ‐ | 1.0737 | 9SMnPb36 | ‐ | ‐ | S300PB | CF9SMnPb36 | 12SMnP35 | 1926 | ‐ |
1015 | S15C | 1.1141 | Ck15 | 080M15 | 32C | XC12 | C16 | C15K | 1370 | 15 |
1025 | S25C | 1.1158 | Ck25 | ‐ | ‐ | ‐ | ‐ | ‐ | ‐ | 25 |
A572‐60 | ‐ | 1.89 | StE380 | 4360 55 | ‐ | ‐ | FeE390KG | ‐ | 2145 | ‐ |
E | ||||||||||
1035 | ‐ | 1.0501 | C35 | 060A35 | ‐ | CC35 | C35 | F.113 | 1550 | 35 |
1045 | ‐ | 1.0503 | C45 | 080M46 | ‐ | CC45 | C45 | F.114 | 1650 | 45 |
1140 | ‐ | 1.0726 | 35S20 | 212M36 | 8M | 35MF4 | ‐ | F210G | 1957 | ‐ |
1039 | ‐ | 1.1157 | 40Mn4 | 150M36 | 15 | 35M5 | ‐ | ‐ | ‐ | 40Mn |
1335 | SMn438(H) | 1.1167 | 36Mn5 | ‐ | ‐ | 40M5 | ‐ | 36Mn5 | 2120 | 35Mn2 |
1330 | SCMn1 | 1.117 | 28Mn6 | 150M28 | 14A | 20M5 | C28Mn | ‐ | ‐ | 30Mn |
1035 | S35C | 1.1183 | Cf35 | 060A35 | ‐ | XC38TS | C36 | ‐ | 1572 | 35Mn |
1045 | S45C | 1.1191 | Ck45 | 080M46 | ‐ | XC42 | C45 | C45K | 1672 | Ck45 |
1050 | S50C | 1.1213 | Cf53 | 060A52 | ‐ | XC48TS | C53 | ‐ | 1674 | 50 |
1055 | ‐ | 1.0535 | C55 | 070M55 | 9 | ‐ | C55 | ‐ | 1655 | 55 |
1060 | ‐ | 1.0601 | C60 | 080A62 | 43D | CC55 | C60 | ‐ | ‐ | 60 |
1055 | S55C | 1.1203 | Ck55 | 070M55 | ‐ | XC55 | C50 | C55K | ‐ | 55 |
1060 | S58C | 1.1221 | Ck60 | 080A62 | 43D | XC60 | C60 | ‐ | 1678 | 60Mn |
1095 | ‐ | 1.1274 | Ck101 | 060A96 | ‐ | XC100 | ‐ | F.5117 | 1870 | ‐ |
W1 | SK3 | 1.1545 | C105W1 | BW1A | ‐ | Y105 | C36KU | F.5118 | 1880 | ‐ |
W210 | SUP4 | 1.1545 | C105W1 | BW2 | ‐ | Y120 | C120KU | F.515 | 2900 | ‐ |
Grade | Element | ||||||
C | Mn | Si | S | P | Cr | Ni | |
EN-354 | 0.35 – 0.45 | 0.60 – 1.00 | 0.10 – .35 | 0.050 MAX | 0.050 MAX | – | – |
Condition | Tensile Strength | Yeild Strength | Elongation |
Annealed | 80 (551) | 35 (241) | 30 |
