As customers' demands
Hongguan
Galvanized sheet is a steel plate with a layer of zinc applied to the surface. Galvanizing is an economical and effective method of corrosion protection and is often used. About half of the world's zinc production is used in this process. Galvanized steel sheets are designed to prevent corrosion on the surface of the steel sheet and to extend its service life. The surface of the steel sheet is coated with a layer of metallic zinc. This galvanized steel sheet is called galvanized sheet.
Hot-dipped galvanized steel sheet. A thin steel sheet that is dipped into a molten zinc bath so that a layer of zinc adheres to its surface. At present, it is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped into the galvanizing tank with molten zinc to make galvanized steel plate.
Alloy galvanized steel. This steel sheet is also manufactured by the hot dipping method, but is heated to about 500°C immediately after leaving the bath to form an alloy film of zinc and iron. This type of galvanized steel has good coating adhesion and weldability.
Electro-galvanized steel sheet. Galvanized steel sheets produced by the electroplating method have good workability. However, the coating is thin and the corrosion resistance is not as good as that of hot-dip galvanized steel.
Single-sided and double-sided poorly galvanized steel sheets. Single-sided galvanized steel sheet is a product that is galvanized on one side only. It has better adaptability than double-sided galvanized steel in terms of welding, painting, rust treatment and processing. In order to overcome the disadvantage of not applying zinc on one side, there is also a kind of galvanized steel with a thin layer of zinc on the other side, i.e. double-sided differential galvanized steel.
Alloy, composite galvanized sheet. It is an alloy or even composite coated steel sheet made of zinc and other metals such as aluminum, lead, zinc, etc. This type of steel sheet not only has excellent rust-proof performance, but also has good coating performance.
In addition to the five types mentioned above, there are also colored galvanized steel sheets, printed coated galvanized steel sheets and polyvinyl chloride composite galvanized steel sheets. However, hot-dip galvanized steel is still the most commonly used.

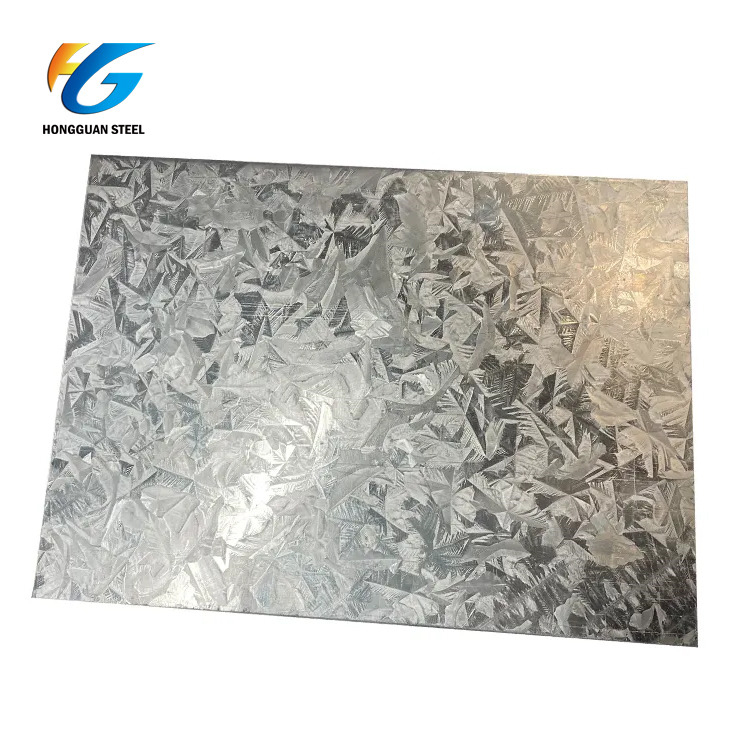

| product name | DX54D+Z Galvanized Steel Sheet |
| Steel Grade | Q195/Q235/Q345SGCC/SGCH/SGC340/SGC400/SGC440/SGC490/SGC570 |
| SGHC/SGH340/SGH400/SGH440/SGH490/SGH540 | |
| DX51D/DX52D/DX53D/DX54D | |
| S220GD/S250GD/S280GD/S320GD/S350GD/S400GD/S500GD/S550GD | |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| zinc coating | 30-275gsm or as your requirement |
| Surface treatment | Chromated and oiled, and anti-finger |
| Thickness : | 0.2mm-50mm or as your requirement |
| Width | 100-2000mm or as your requirement |
| Length: | 2000-12000mm or as customer's request |
| Technology: | Hot Rolled, Cold Rolled |
| Spangle | Big spangle, normal spangle, small spangle, non-spangle |
| features | beautiful surface, corrosion resistant, good welding performance, certain stamping properties, durable |
| Payment Term: | Within 7-15 days after receipt of TT |
| Trade Term: | EXW, FOB, CFR, CIF |
| Application | anti - corrosion roofing panel/roofing pile/Home appliance shell/chimney/kitchenware/ Anti-Corrosion resistant parts of |
| cars/Refrigerating equipment for food/ Storage, transportation and packaging of products |
Regular spangled 、Big spangled、Mini spangled、Zero spangled.
Multiple specifications are available.
Regular spangled
Big spangled
Mini spangled
Zero spangled
Shandong Hongguan Group Co., Ltd offers high quality hot dip galvanized steel sheet electro galvanized steel sheet. As a cost-effective construction and decoration material with cheap price and high corrosion resistance, our products are sold all over the world and favored by local customers. We welcome friends from all over the world to buy our products.
| Grade | Euronorm | China GB | Japanese JIS | US ASTM | ||
| EN 10346:2009 | GBT 2518-2008 | JIS:G3302-2005 | ASTM A653M | |||
| DX54D+Z | DX54D+Z | DX54D+Z | SGCD3 | DDS TypeC | ||
| Grade | Element | C | Si | Mn | P | S | Ti |
| DX54D+Z | Min. | - | - | - | - | - | - |
| Max. | 0.12 | 0.5 | 0.6 | 0.12 | 0.045 | 0.3 |
| Tensile strength | Yield strength | Elongation |
| 260~350 MPa | 120~220 MPa | ≥36% |
(1)Fast delivery time, good quality and reasonable price
(2)We can process different finished products according to your requirements
(3)High production volume will shorten your waiting time
(4)Accept the buyer's specification
(5)Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for your visit.
