As customers' demands
Hongguan
Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.

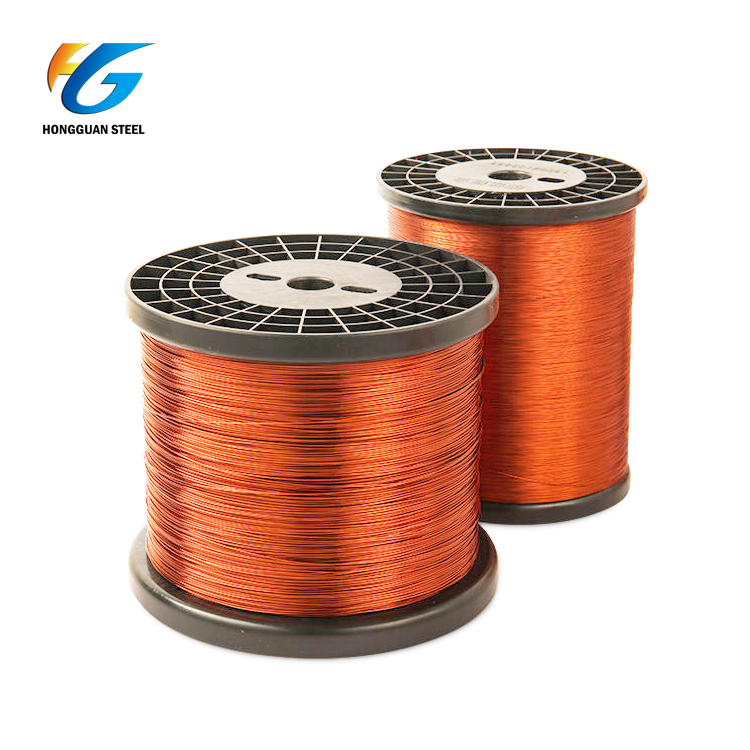

| Product name | Enamelled copper wire, round copper winding wire, magnet copper wire |
| Application | Transformer, Motor, Pump, Generator, Reactor, Inductor, Choke, Welding machine, etc |
| Conductor | Round 99.9% pure copper rod |
| Size | 0.10-3.00mm, AWG 9-38, Swg ll~Swg 42 |
| Elongation | ≥15% |
| Tensile strength | 130Mpa~150Mpa |
| Thermal class | 130C~220C |
| Standard | IEC 60317, NEMA MW, GB JIS |
| Insulation material | PEW UEW EIW EI/AIW AIW |
| Certificates | ROHS/UL/CCC/VDE/SGS/ISO9001/ISO14001/CNAS |
| Color | Golden, Brown, Black (according to the wire diameter) |
| Type | Polyester | Modified Polyester | Polyurethane | Polyesterimide | Polyamide-imide | Polyamide |
| Code | PEW, QZ | PEW, QZ | UEW, QA | EIW, QZY | EI/AIW, QZY/XY | AIW, QXY |
| Thermal Class | Class B, 130℃ | Class F, 155℃ | Class F, 155℃ | Class H, 180℃ | Class H, 200℃ | Class L, 220℃ |
| Insulation thickness | Grade 1, 2, 3 | |||||
| Standard | IEC 60317, NEMA MW, JIS | |||||
| Characteristics | Good heat resistance and mechanical strength. Low cost. | High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance | Solderability(no need to remove the insulation). High frequency resistance and dyeability | Good thermal shock resistance and refrigerant resistance. Excellent chemical resistance, abrasion resistance | More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance | Highest heat class High heat resistance, good solvent and refrigerant resistance |
| Diameter of wire & reference current(DC+) | ||||
| Diameter of wire (mm) | φ0.8 | φ1.0 | φ1.2 | φ1.6 |
| Reference current (A) | 40-180 | 100-220 | 160-320 | 170-550 |
| Arc voltage (V) | 16-21 | 17-27 | 18-32 | 23-43 |
| Chemical composition of welding wire (%) | ||||||
| C | Mn | Si | S | P | Cu | |
| standard value | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.035 | ≤0.025 | ≤0.5 |
| sample value | 0.07 | 1.50 | 0.94 | 0.008 | 0.007 | 0.20 |
| Mechanical properties of deposited metal | |||||
| Tensile strength σb(mpa) | Yield point σ0.2(mpa) | Elongation σ5(%) | AKV impact value (J)(-30℃) | Shielding gas | |
| Standard value | ≥ 500 | ≥420 | ≥22 | ≥27 | CO2 |
| Typical value | 558 | 472 | 27 | 98 | CO2 |
