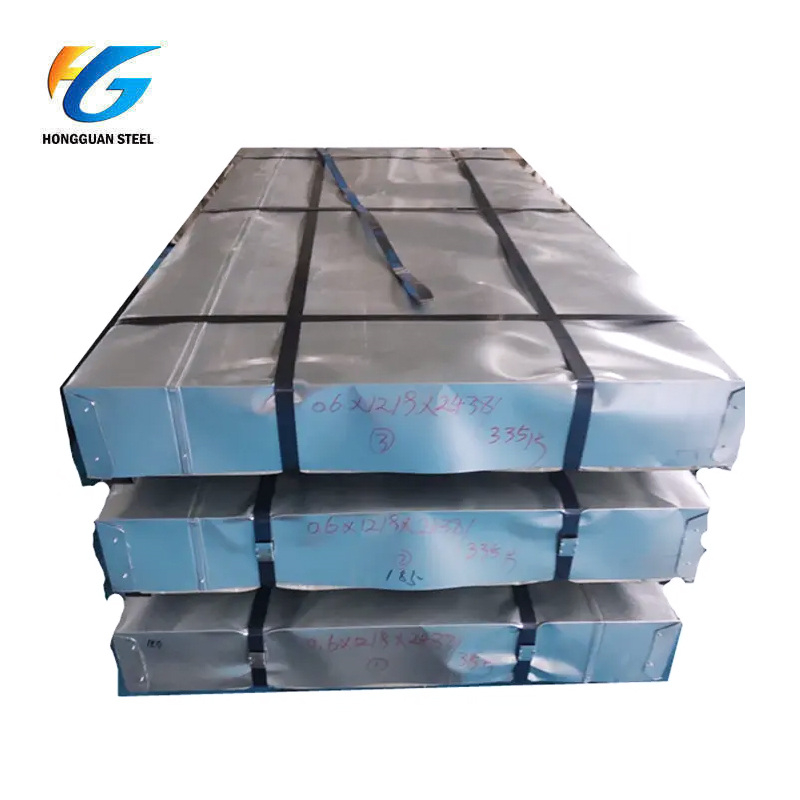

ASTM A516 Grade 65 is an excellent weldable carbon steel choice for pressure vessel and boiler fabrication. The material performs well at service temperatures below ambient, with good weldability and excellent notch toughness.
Compared to ASTM A516 Grade 60, A516 Grade 65 has greater specified tensile and yield strengths.
Used throughout the oil, gas and petrochemical industry, this steel grade has also been found for use in sour service and wet H2S applications (this steel grade is HIC tested).
Hongguan Steel stocks ASTM A516 Grade 65 carbon steel plates with factory certification in accordance with EN10204 3.1 or EN10204 3.2.
| Specifications | ASTM A516 Gr. 65 / ASME A516 Grade 65 |
| Thickness | 8-100mm |
| Length | 3000 mm – 8000 mm |
| Width | 1500-3500mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Astm A516 Grade 65 Plates
A516 Grade 65 Hr Boiler Plates
Sa 516 Gr 65 Carbon Steel Plate
Sa516 Grade 65 Pressure Vessel Steel Plates
Astm A516 Gr 65 Plates
Sa516 Gr 65 Bq Plate
| Grade | C | Mn | P | S | Si |
| A516 Grade 65 | 0.24-0.29 | 0.79 – 1.30 | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Yield | Tensile | Thickness | Elongation |
| A516 Grade 65 | MPa -240 min | MPa – 450-585 | 6-100mm | 19-23% |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
