As customers' demands
Hongguan

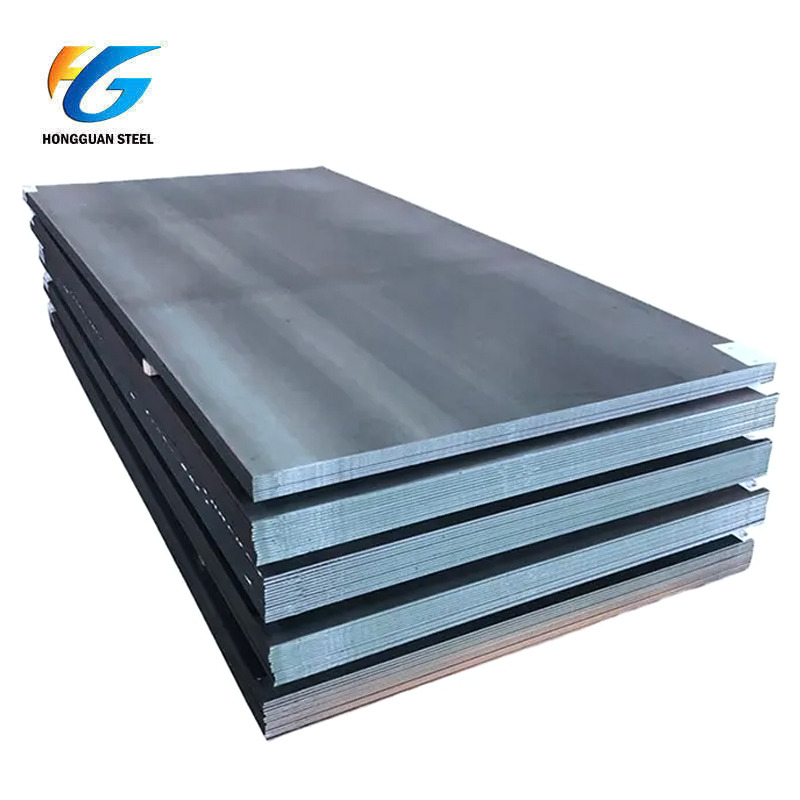

Shandong Hongguan Steel Group Co., Ltd. is a professional manufacturer and customer-oriented supplier of 515gr 70 steel plates for boilers and pressure vessels. We have these plates in various specifications including lengths, widths, wall thicknesses, forms, surface finishes, finishes and packaging.ASTM A515 standard is mainly used for medium and high temperature welded boilers and other pressure vessels in carbon silicon steel.
ASTM A515 Gr 70 plates have the advantages of wear resistance, high strength, strong structure, corrosion resistance, robust design and excellent quality. These plates can receive surface finishes such as chevron, brush, sandblasted and embossed, 2B, BA, 8K, No. 1, etc. It is commonly available in hot rolled post-treatment.
A515 Grade 70 carbon steel plate is suitable for the manufacture of high strength steel plates used in medium to high temperature pressure vessels. Its cutting properties are good and similar to those of ordinary carbon steel.
Low temperature carbon steel 70 steel plate can be easily formed by conventional methods. It is essentially a carbon steel and is not resistant to corrosion. Unless protected, it will rust. It can be easily bent or cold formed as is typical of plain carbon steel.
| Specifications | ASTM / ASME |
| Standard | AISI, ASTM, BS, GB, JIS |
| Thickness | 6mm-300mm |
| Width | 1500mm-4050mm |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Length | 3000mm to 15000mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | ASME SA515 GR.70 |
Astm A515 Gr 70 Plates
A515 Grade 70 Pressure Vessel Steel Plate
Sa 515 Gr 70 Boiler Quality Plates
Sa515 Grade 70 Boiler & Pressure Vessel Steel Plates
A515 Gr.70 Hr Boiler Plates
Lower Temperature Carbon Steel Grade 70 Plate
| Grade | The Element Max (%) | ||||
| C | Mn | P | S | Si | |
| A515 grade 70 | 0.30-0.35 | 1.3 | 0.035 | 0.035 | 0.13-0.45 |
| Yield strength (Mpa) | Tensile strength (Mpa) | Elongation in ≥,% | |
| 260 | 485-620 | 200mm | 50mm |
| 17 | 21 | ||
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
