As customers' demands
Hongguan

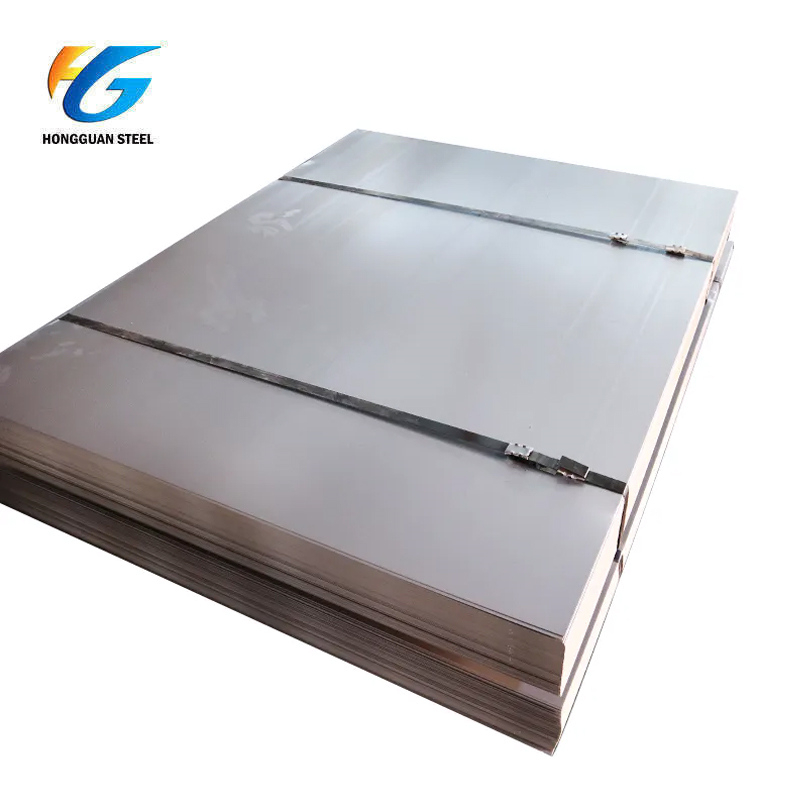

ASTM A283 Grade C is a carbon steel pressure vessel steel plate with a low to medium tensile strength.ASTM A283 Grade C should be manufactured from pressed billet, semi-pressed billet, header or flanged steel, selected by the manufacturer for use in fusion welded pressure vessels.
| Standard | ASTM A283, EN 10025 |
| Thickness | 5-300mm |
| Width | 1500-3500mm |
| Length | 3000-12000mm |
| Heat Treatment | AR,CR,TMCP,N or QT Heat Treatment, PWHT, UT,Low Temperature Impacting Test,HIC and so on. |
| Grade | C (t≤16mm) | Si | Mn | P | S | Cu |
| A283 Grade C | 0.24 max | 0.04 max | 0.09 max | 0.035 max | 0.04 max | 0.20 min |
| Grade | Yield strength ReH/(N/mm2) | Tensile strength Rm/(N/mm2) (3mm≤t≤16mm) | Elongation A/% |
| (t≤16mm) min | (3mm≤t≤40mm) min | ||
| A283 Grade C | 205 | 380-515 | 25 |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
ASTM A283 Grade C is a carbon steel pressure vessel steel plate with a low to medium tensile strength.ASTM A283 Grade C should be manufactured from pressed billet, semi-pressed billet, header or flanged steel, selected by the manufacturer for use in fusion welded pressure vessels.
| Standard | ASTM A283, EN 10025 |
| Thickness | 5-300mm |
| Width | 1500-3500mm |
| Length | 3000-12000mm |
| Heat Treatment | AR,CR,TMCP,N or QT Heat Treatment, PWHT, UT,Low Temperature Impacting Test,HIC and so on. |
| Grade | C (t≤16mm) | Si | Mn | P | S | Cu |
| A283 Grade C | 0.24 max | 0.04 max | 0.09 max | 0.035 max | 0.04 max | 0.20 min |
| Grade | Yield strength ReH/(N/mm2) | Tensile strength Rm/(N/mm2) (3mm≤t≤16mm) | Elongation A/% |
| (t≤16mm) min | (3mm≤t≤40mm) min | ||
| A283 Grade C | 205 | 380-515 | 25 |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
