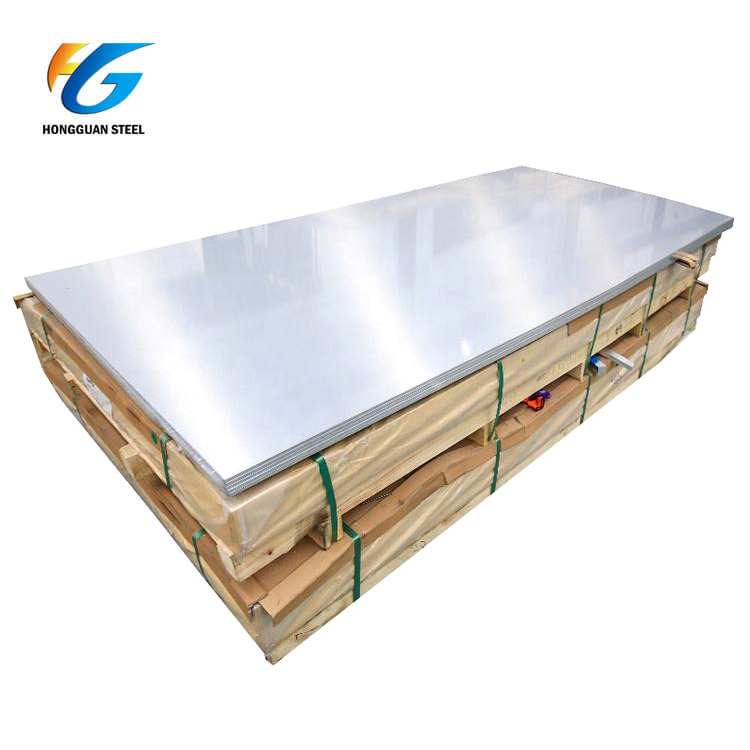

Aluminum Sheet/Plate

Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.

Aluminum Sheet/Plate Description

Item	Aluminium sheet ,Aluminium plate, Aluminium alloy sheet, Aluminium alloy plate
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Grade	1000, 2000, 3000, 4000, 5000, 6000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc.
Thickness	0.1mm-200mm
Width	2mm-2200mm
Length	1-12m or as required
Temper	0-H112,T3-T8, T351-851
Surface	mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc
Aplication	1)Further making utensil2）Solar reflective film 3)The appearance of the building 4)Interior decorating; ceilings, walls,etc 5)Furniture cabinets 6)Elevator decoraction 7)Signs, nameplate,bags making 8)Decorated inside and outside the car 9)Household appliances:refrigerators, microwave ovens, audio equipment,etc

Aluminum Sheet/Plate Surface

Related Products

Aluminum Sheet/Plate

Aluminum Coil

Aluminum Square Tube

Aluminum Round Tube

Aluminum Rod/Bar

Aluminum Hexagonal Bar

Aluminum Flat Bar

Aluminum Circle

Aluminum Wire

Aluminum Ingot

Aluminum Sheet/Plate Workshop

Aluminum Sheet

Certificate

证书展示2

Aluminum Sheet/Plate Chemical composition

CHEMICAL COMPOSITION
Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

Aluminum Sheet/Plate Chemical Properties

PHYSICAL PROPERTIES
Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
