Product Description

Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.

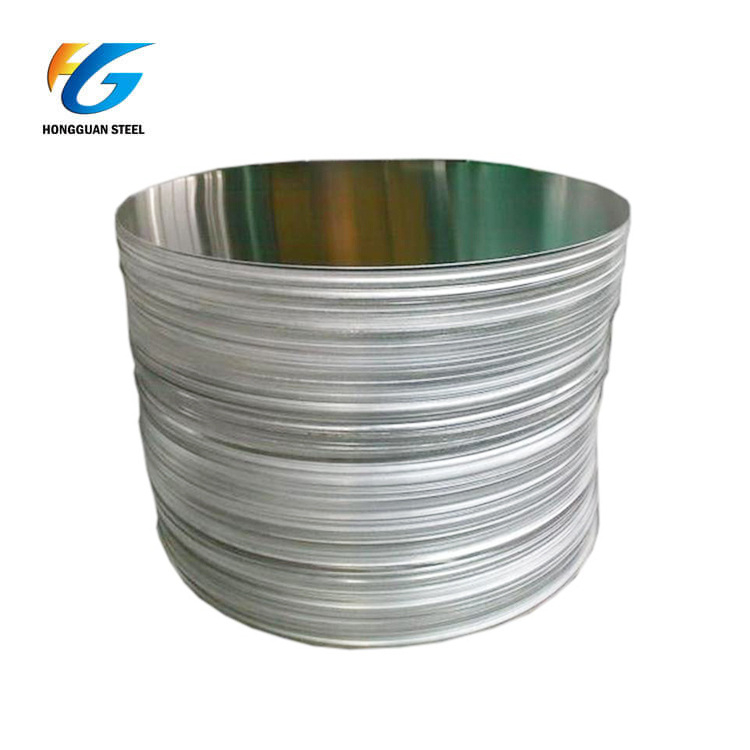

Aluminum Circle Disc Description

Product Name	Aluminum Circle Disc
Alloy/Grade	1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series,8000 Series
Temper	O-H112,T3-T8,T351-T851
Thickness	0.13mm-6.5mm
Width	3mm-2600mm
Length	As per your requirements
Application	Industry,Decoration,Building,Packing,Pressing,Etc.
Surface treatment	Mill Finish,Coated,Powder Coated,Anodized,Polished mirror,Embossed,Etc.
Tolerances	As per your requirements
Delivery time	7-30 days after order confirmation
MOQ	1 ton
Loading Port	China Main Port
Coil ID	As per your requirements
Price terms	FOB, CIF, Etc.
Payment terms	T/T ,L/C

Aluminum Grade
Alloy	Temper	Thickness (MM)	Diameter (MM)	Application
1050, 1060, 1100	O, H14, H14, H16, H18, H22, H24, H26	1.0-6.0	100-1600	Ordinary cookware: pot lid, aluminum pot; lamp accessories: lampshade, street lamp
3003, 3304	O, H14, H14, H16, H18, H22, H24, H26	1.0-6.0	100-1600	Advanced cookware: pressure cooker, non-stick cookware
5052, 5754	O, H18, H32, H34, H36	1.0-6.0	100-1600	Road signs, high-grade cookware
8011	OH12, H14, H16, H18, H22, H24, H26	1.0-4.5	100-1600	Liner for cookware and ther

Aluminum Circle Disc

Aluminum Circle Disc Chemical Properties

Chemical composition
Alloy (%)	AA 1050	AA 1070	AA 1100	AA 3003
Fe	0.40	0.25	1.00	0.70
Si	0.25	0.20	(Fr + Si)	0.60
Mg	0.05	0.03	-	-
Mn	0.05	0.03	0.05	1.00 _ 1.50
Cu	0.05	0.04	0.05	0.05 _ 0.20
Zn	0.05	0.04	0.10	0.10
Ti	0.03	0.03	0.05	0.10 (Ti + Zr)
Cr	-	-	-	-
Each (others)	0.03	0.03	0.05	0.05
Total (Others)	-	-	0.125	0.15
Al	99.50	99.70	99.00	Remaining

Aluminum Circle Disc Mechanical Properties

Mechanical properties
Alloy (AA)	Temper	%E (min) (at 50 mm gauge length)	UTS (mpa)		Bend test: radius of bend (T=material thickness)
Alloy (AA)	Temper	%E (min) (at 50 mm gauge length)	Min	Max	Bend test: radius of bend (T=material thickness)
1050	O	29	55	95	close
	H14	6	95	125	1/2T
	H18	4	125	-	1T
1070	O	29	95	-	close
	H14	6	95	120	1/2T
	H18	4	120	-	1T
3003	O	25	90	130	close
	H14	5	130	180	1/2T
	H16	4	150	195	1T
	H18	3	170	-	3T
