Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.
Alloy 400 (UNS N04400) is a solid-solution alloy that can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments.

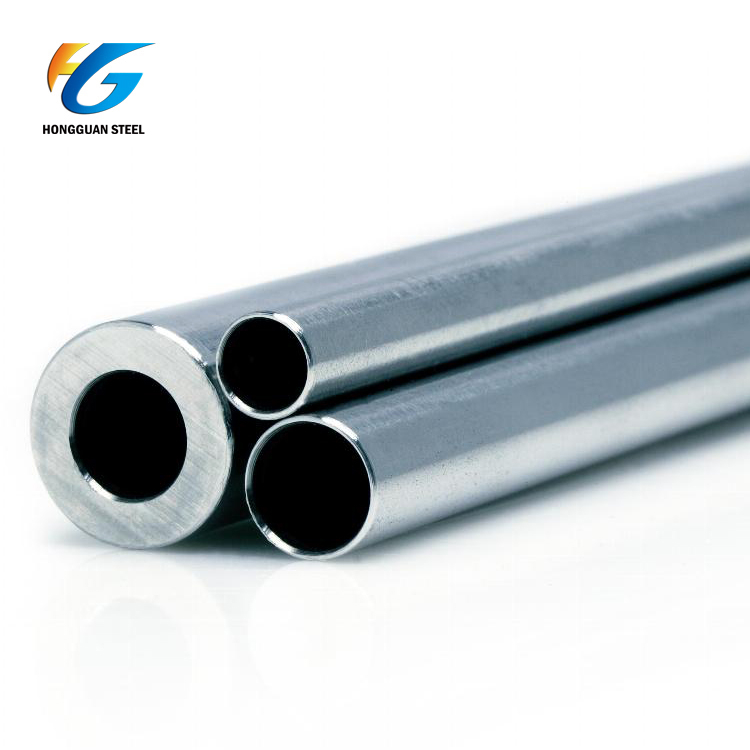

Available Tube Product form
Straight
Coiled
Typical Applications
Steam Generators
Reboiler tubes
Brine heaters and evaporator bodies in salt plant
Sulphuric and hydrofluric acid alkylation plant acids
Industries predominantly using this Grade
Chemical processing
Typical Manufacturing Specifications
ASTM B163
ASTM B165
AMS 4574
BS3074
Technical Data / Mechanical Properties
| Temper | Annealed | |
|---|---|---|
| Tensile Rm | 70 | ksi (min) |
| Tensile Rm | 480 | MPa (min) |
| R.p. 0.2% Yield | 28 | ksi (min) |
| R.p. 0.2% Yield | 195 | MPa (min) |
| Elongation (2” or 4D gl) | 40 | % (min) |
| Specific Heat (0-100°C) | 427 | J.kg-1.°K-1 |
| Thermal Conductivity | 21.8 | W.m -1.°K-1 |
| Thermal Expansion | 13.9 | mm/m/°C |
| Modulus Elasticity | 173 | GPa |
| Electrical Resistivity | 5.47 | μohm/cm |
| Density | 8.83 | g/cm3 |
| Element | Min | Max |
|---|---|---|
| C | - | 0.3 |
| Si | - | 0.5 |
| Mn | - | 2 |
| S | - | 0.24 |
| Cu | Balance | |
| Fe | - | 2.5 |
| Ni | 63 | 70 |
