As customers' demands
Hongguan
China pure nickel 200 bar is commercially pure (99.6%) wrought nickel. It has good mechanical properties and excellent resistance to many corrosive environments. Other valuable characteristics of this alloy are its magnetic and magnetostrictive properties, high thermal and electrical conductivity, low gas content, and low vapor pressure.
The corrosion resistance of China pure nickel 200 bar makes it particularly useful for maintaining product purity when handling foodstuffs, synthetic fibers, and caustic soda. Corrosion resistance is also excellent in structural applications, where it is often used in components such as chemical shipping drums, electrical and electronic parts, aerospace, and missiles.
Pure Nickel 200 Bar Description| Product Name | Nickel 200 bar |
|---|---|
| Thickness | Hot rolled: 3.0 - 180mm |
| Shape: Round, Forging, Ring, Coil, Flange, Disc, Foil, Spherical, Ribbon, Square, Bar, Pipe, Sheet | |
| Cold rolled: 0.15mm-10mm | |
| Width | 10~2000mm |
| Length | 1000mm-6000mm or as customer' s requirement |
| Surface | 2B, 2D, HL |
| Technique | Hot rolled or Cold rolled |
| Grade | Hastelloy: HastelloyB3/B2/X/C/C22/C276/G-30 |
| Inconel: Inconel600/625/Nickel 200 (UNS N02200)/725 | |
| Incoloy: Incoloy800/800h/825/925 | |
| Monel: Monel400/k500/404 | |
| Nickel: Nickel200/201 | |
| Nitronic: Nitronic50/60 | |
| Alloy: Alloy20/28/330/31/33/75, 4J36/1J50/1J79/4J29/4J42,/3J53 | |
| Nimonic: Nimonic80/80a/90/75, etc. | |
| Price Term | EXW/FOB/CFR/CIF/FCA |
| Package | Clients' requirement and Standard export sea-worthy packing |
| Delivery time | 7-25 days or according to the product |
| Grade | Ni+Co | As | Bi | C | Cd | Cu | Fe | Mg | Mn |
| Ni201 Ni200 | ≥99,9 ≥99,5 | ≤0,001 ≤0,002 | ≤0,001 ≤0,02 | ≤0,01 ≤0,1 | ≤0,001 ≤0,002 | ≤0,015 ≤0,1 | ≤0,04 ≤0,1 | ≤0,01 ≤0,1 | ≤0,002 ≤0,05 |
| P | Pb | S | Sb | Si | Sn | Zn | Impurity | ||
| Ni201 Ni200 | ≤0,001 ≤0,002 | ≤0,001 ≤0,002 | ≤0,001 ≤0,005 | ≤0,001 ≤0,002 | ≤0,03 ≤0,15 | ≤0,001 ≤0,002 | ≤0,005 ≤0,007 | ≤0,1 ≤0,5 |
| Material condition | Tensile strength, MPa (kgf / mm2), not less than, grades | elongation, % not less than grades | |
| Ni201; Ni200 | Ni201; Ni200 | ||
| δ10 | δ5 | ||
| Soft | 390 ( 40) | 32 | 35 |
| 1/2 Hard | 440 ( 45) | 10 | 12 |
| Hard | 540 ( 55) | 2 | 3 |
| Alloy grade | Density | Melting point | Thermal conductivity | Specific heat capacity | Elastic Modulus | Resistivity |
| g/cm3 | ℃ | λ/(W/m•℃) | J/kg•℃ | GPa | μΩ•m | |
| Ni201 | 8.89 | 1435-1446 | 79.3 | 456 | 205 | 0.085 |
| Ni200 | 8.89 | 1435-1446 | 70.2 | 456 | 205 | 0.096 |
| Alloy grade | Form | Specification | |
| Ni201; Ni200 | Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.4~40mm | Thick=0.03~2.9mm | |
| Strip | Width=1~250mm | Thick=0.05~3.0mm | |
| Foil | Width=5~120mm | Thick=0.001~3mm | |
| Bar | Diameter=3~100mm | Length=50~1000 | |
| Plate | Thickness :1mm~50mm；Width:50mm~1000mm Length:500mm~6000mm | ||

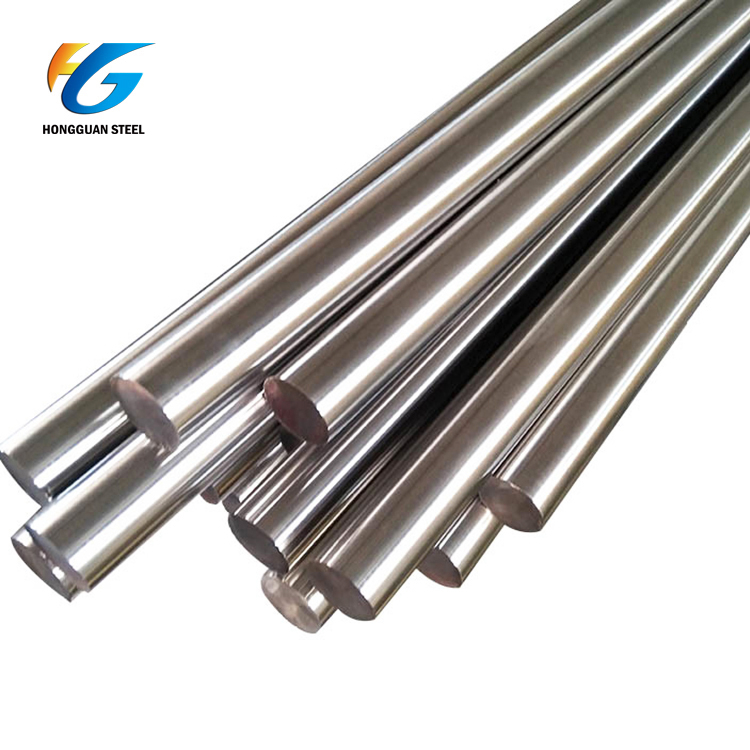

Nickel 200 Round Bar Show
About usHongguan steel is an ISO 9001 certified supplier of pure alloy nickel 200 bars serving the global aerospace, oil and gas, power generation, petrochemical, biomedical, pharmaceutical, and other high-tech manufacturing industries. We supply nickel alloy bars to manufacturers and distributors in the United States and over 60 countries worldwide. Contact us for more information on pure nickel 200 bars. The following are some of our related services.
Qualified tensile strength and hardness
ISO9001, CE, SGS, BV, Form-E, CO, and MTC certificates passed
Fast delivery and standard wooden export packaging
Low minimum order quantity
Support T/T, L/C, PayPal, Kunlun Bank, and other payment
OEM, ODM, welcome customers to visit our factory to understand
Trustworthy, long-term commitment to providing services to our valued customers
Certificate
