Super austenitic stainless steel 904l contains 14.0-18.0% chromium, 24.0-26.0% nickel and 4.5% molybdenum.

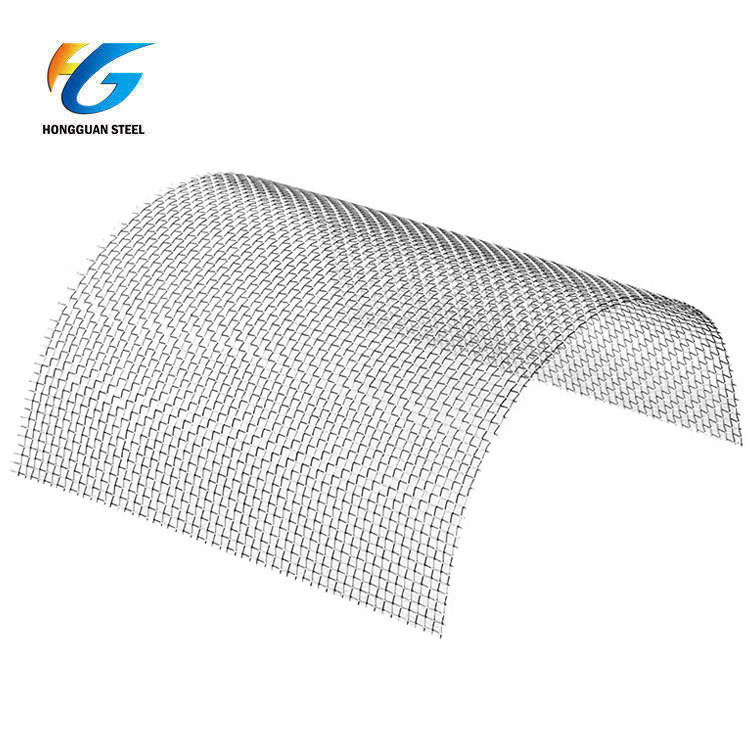

This stainless steel is a low carbon, high nickel, molybdenum stainless steel. It has good corrosion resistance in non-oxidizing acids such as sulfuric acid, acetic acid, formic acid and phosphoric acid. It is effective in pore corrosion, crevice corrosion, and stress corrosion. It is suitable for sulfuric acid at various concentrations up to 70 °C. It has good corrosion resistance at atmospheric pressure, at any concentration and temperature, and in a mixture of formic and acetic acids. Highland Ltd. is a professional manufacturer and seller of 904L stainless steel wire mesh.
Grades and standards of 904L stainless steel
UNS N08904 (Standard designed by the Society of Automotive Engineers and the American Society for Testing and Materials in 1967) ,
dIN 1.4539 (German standard) ,
American Society for Testing and Materials Standards
DIN 1.4539 Weaving terminology for stainless steel wire mesh
Plain weave, twill weave, Dutch weave, welded weave, crimped weave.
| Specification of Plain Weave | ||||||
| Mesh/lnch (mesh) | Wire Diameter (mm) | Aperture (mm) | Mesh/lnch (mesh) | Wire Diameter (mm) | Aperture (mm) | |
| 2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 | |
| 3 | 1.6 | 6.866 | 70 | 0.14 | 0.223 | |
| 4 | 1.2 | 5.15 | 80 | 0.12 | 0.198 | |
| 5 | 0.91 | 4.17 | 90 | 0.11 | 0.172 | |
| 6 | 0.8 | 3.433 | 100 | 0.1 | 0.154 | |
| 8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 | |
| 10 | 0.55 | 1.99 | 140 | 0.07 | 0.111 | |
| 12 | 0.5 | 1.616 | 150 | 0.065 | 0.104 | |
| 14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 | |
| 16 | 0.4 | 1.188 | 180 | 0.053 | 0.088 | |
| 18 | 0.35 | 1.06 | 200 | 0.053 | 0.074 | |
| 20 | 0.3 | 0.97 | 250 | 0.04 | 0.061 | |
| 26 | 0.28 | 0.696 | 300 | 0.035 | 0.049 | |
| 30 | 0.25 | 0.596 | 325 | 0.03 | 0.048 | |
| 40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 | |
| 50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 | |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | Cu | |
| 904L | min. | – | – | – | – | – | 19 | 4.0-5.0 | 23 | 1 |
| max. | 0.2 | 2 | 1 | 0.045 | 0.035 | 23 | 28 | 2 | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 446 | 490 | 220 | 35 | 70-90 typical | – |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
