As customers' demands
Hongguan

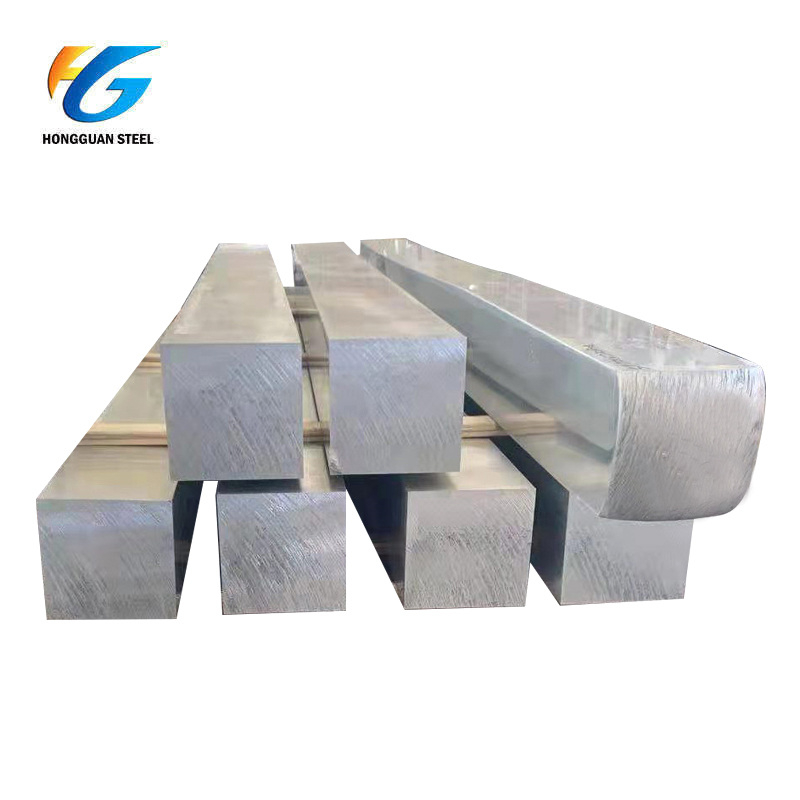

Aluminum square bar 6063 is an aluminum alloy with magnesium and silicon as alloying elements. It generally has good mechanical properties and can be heat treated and welded. 6063 is mostly used in extruded shapes for construction, especially for window frames, door frames and roofing. It is usually produced with a very smooth surface suitable for anodizing. It shows very good corrosion resistance, moderate fatigue strength, and good cold formability.
| Product | 6063 Aluminum Square Bar |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Grade | 1000series：1050/1060/1070/1080/1100/1350/1050A/1090/1200/1530 |
| 2000series：2011/2014/2017/2024/2017A/2017B/2020/2020R/2040/2040A/2080/2080W/2018A/2018B | |
| 3000series：3002/3003/3104/3204/3030/3030A/3030GA/3030/3030GE/3030R/3060/3060G/3090G/3090 | |
| 5000series：5005/5025/5052/5040/5054/5056/5083/5152/5A05 | |
| 6000series：6101/6003/6061/6063/6020/6201/6262/6082/6060G/6060/6060W/6060R/6090A/6090/6090C | |
| 7000series：7003/7005/7050/7075/7075-T6/7050-T651/7001/7004/7051/7076/7079/7090 | |
| 8000series：8011/8011A | |
| Diameter | 2-800mm or as required |
| Length | 1-12m or as required |
| Service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| Executive Standard | GB/DIN/ANSI/BS/JIS/ASTM/BS |
| Certificate | SGS/BV/MTC/IOS/CE |
| Delivery time | 7-15 days after deposit |
| Container Info | Bundles Packing：Each covered by plastic film, then wraped to be bundles by craft paper |
| Carton Packing：Each pcs packed by plastic bag, then put in one carton | |
| Wood Pallet packing：Bundles or cartons packing, then put them on wood pallet |
| Aluminium 6063 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.35 | 0.20 - 0.60 | 0.45 - 0.90 | 0.10 | 0.10 | 0.10 | 0.10 | 97.5 |
| Temper | Tensile | Hardness | ||||
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T5, T52 | 27 | 186 | 21 | 145 | 12 | 60 |
| T6 | 35 | 241 | 31 | 214 | 12 | 73 |
(1)Fast delivery time, good quality and reasonable price
(2)We can process different finished products according to your requirements
(3)High production volume will shorten your waiting time
(4)Accept the buyer's specification
(5)Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for your visit.
