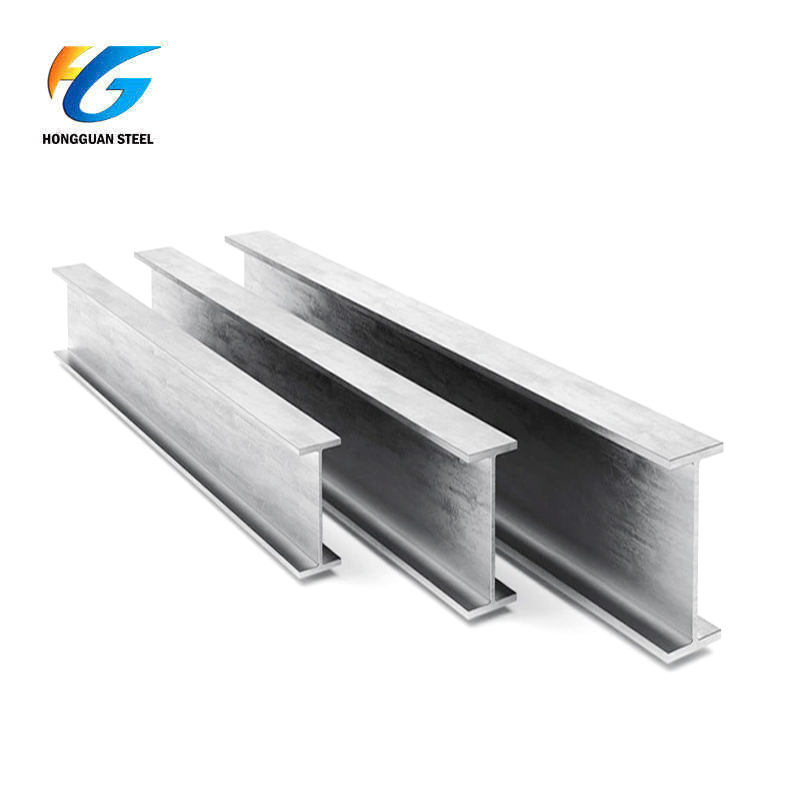

444 Stainless Steel H Beam

Material Grade: 201/304/304l/316/316l/321/309s/310s/410/420/430/904l/2205/2507
Type:Ferritic, Austenite, Martensite, Duplex
Technology:Cold Rolled and Hot Rolled
Size: According to the customer's requests
Certifications: ISO 9001,SGS,BV
Payment: TT, LC, Western Union.
Service: Third party testing
Delivery: within 10-15 days or considering the quantity
  • As customers' demands

  • Hongguan

444 Stainless Steel H Beam/I Beam China Manufacturers

444 stainless steel beam:

444 steel is a high-alloy ferritic stainless steel, compared with the commonly used steel SUS430:1.

The chromium content is about 1.0% higher, and the addition of the alloying element molybdenum (Mo), so the steel has good resistance to pore corrosion, crevice corrosion, stress corrosion, in some places the corrosion resistance is even better than SUS304 and SUS316.

The addition of titanium (Ti), niobium (Nb), zirconium (Zr) and other stabilizing elements gives the steel good resistance to weld rust and high temperature oxidation.

The old brand is 00CR18MO2 and the new brand is 019CR19MO2NB1 & IUML;

The unified numerical code is S11972 (GB/T 20878-2007)

This is the most economical steel grade. As a result, 444 stainless steel sheet is less expensive than other grades of stainless steel and all metal products in general. There are different versions of the material with low and high carbon content. The low carbon version, 444 sheet is very good for welding applications as they have less carbide precipitation and less localized corrosion.

444 stainless steel beam Product Description

Product Name

444 Stainless steel H-beam / stainless steel I-beam

Grade 201, 202 , 304 , 304L , 304H , 309, 309S , 310 , 310S ,316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 ,
430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-4pH ,N08367 (AL 6XN ) ,etc.
Tolerance +/-1%
Length 1-12m or customized
Size regular or customized
Service OEM, customized processing service
Technique Hot rolled/Cold Rolled
Export packing Standard export seaworthy package
Delivery time 7-10 days after receiving deposit
Application costruction industry/fabrication industry/home decoration/building materials
444 Stainless steel H-beam

H-beam - H-beam is stronger than I-beam, but it requires more effort to produce. instead of being rolled together as one part, H-beam is made from three separate pieces and welded together. This makes each part stronger because you are using the milling equipment three times to reinforce the material, rather than using the equipment one at a time to fabricate an item. Overall, H-beams are much heavier than I-beams and can withstand more force and stress.

444 Stainless steel I-beam

I-beam - is the most common beam in our inventory. I-beams have a center web that can only be rolled as far as the rolling mill equipment can handle (5/8"). I-beams are lighter in weight, which is why they are used so often. The I-beam is also a complete piece of metal. It is rolled from a single part. It can be hot rolled or laser fused.

Stainless Steel Beam Product Show

444 Stainless steel H beam

Stainless Steel Surface

stainless steel surface

444 Stainless Steel H Beam/I Beam Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
444 Min. ≤0.025 ≤1.00 ≤1.00 ≤0.04 ≤0.03 17.5~19.5 1.75~2.5 ≤1.00 ≤0.035

444 Stainless Steel H Beam/I Beam Mechanical Properties

Properties Metric Imperial
Tensile strength 415 MPa 60200 psi
Yield strength  (@strain 0.200%) 275 MPa 39900 psi
Elastic modulus 200 GPa 29000 ksi
Shear modulus 80-83 GPa 11600-12000 ksi

Stainless Steel Beam Production Workshop

444 Stainless steel H beam


444 Stainless steel H beam

Our Service/Why Choose Us

(1)Fast delivery time, good quality and reasonable price

(2) We can process different finished products according to your requirements

(3) High production capacity will shorten your waiting time

(4) Accepting buyer's specification

(5) Experienced R&D department
