430 stainless steel beam :
430 stainless steel is resistant to oxidation and corrosion, but has a tendency to intergranular corrosion.
430 stainless steel wire is widely used for shafts.
It is widely used for food tableware because it is safe and non-toxic.
This is the most cost effective grade of steel. As a result, 430 stainless steel sheet is generally less expensive compared to other grades of stainless steel and all metal products. There are different versions of the material with low carbon and high carbon content. The low carbon version, 430 plate is very good for welding applications because they have less carbide precipitation and less localized corrosion.

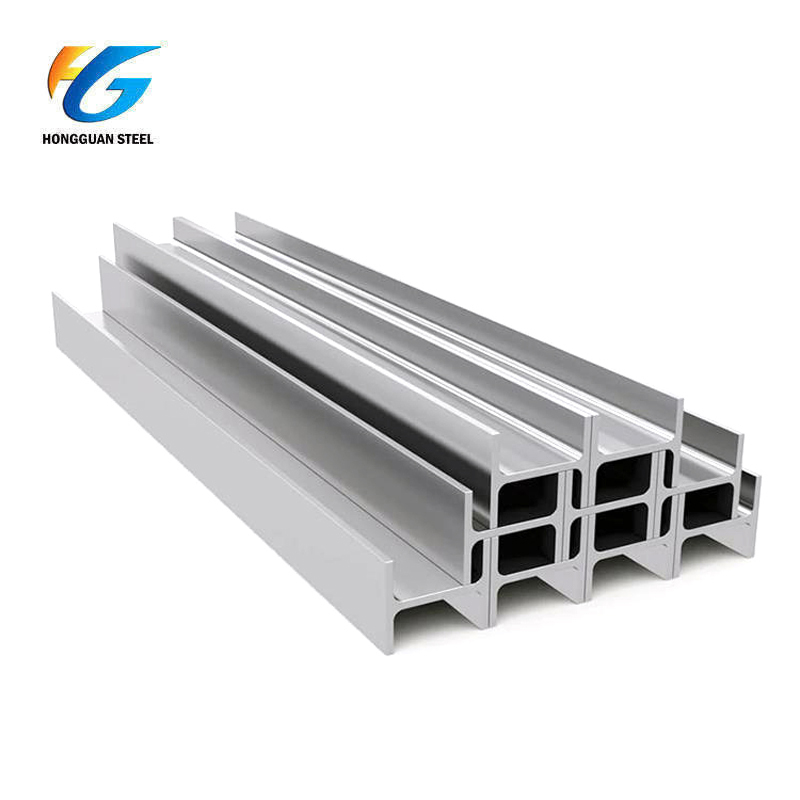

| Product Name | 430 Stainless steel H-beam / stainless steel I-beam |
| Standard | ASTM, JIS, AISI, ASTM, GB, DIN, EN |
| Grade | 201, 202 , 304 , 304L , 304H , 309, 309S , 310 , 310S ,316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 , |
| 430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-4pH ,N08367 (AL 6XN ) ,etc. | |
| Tolerance | +/-1% |
| Length | 1-12m or customized |
| Size | regular or customized |
| Service | OEM, customized processing service |
| Technique | Hot rolled/Cold Rolled |
| Export packing | Standard export seaworthy package |
| Delivery time | 7-10 days after receiving deposit |
| Application | costruction industry/fabrication industry/home decoration/building materials |
H-beam - H-beam is stronger than I-beam, but it requires more effort to produce. instead of being rolled together as one part, H-beam is made from three separate pieces and welded together. This makes each part stronger because you are using the milling equipment three times to reinforce the material, rather than using the equipment one at a time to fabricate an item. Overall, H-beams are much heavier than I-beams and can withstand more force and stress.
I-beam - is the most common beam in our inventory. I-beams have a center web that can only be rolled as far as the rolling mill equipment can handle (5/8"). I-beams are lighter in weight, which is why they are used so often. The I-beam is also a complete piece of metal. It is rolled from a single part. It can be hot rolled or laser fused.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 430 | Min. | ≤0.12% | ≤1.00% | ≤0.75% | ≤0.040% | ≤0.030% | 16.00~18.00% | / | ≤0.60% | |
| Max. | ||||||||||
| Grade | Tensile Strength | Yield Strength | Elongation (2") | Rockwell Hardness |
| 430 | 75,000 | 50,000 | 25% | 85 |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
