347 is similar to 321 stainless steel, which is often used as a stable alternative to type 304. However, in the case of 347, the stabilizer is niobium. This metal strengthens 347's already present ability to withstand intergranular corrosion to its maximum capacity. In addition, niobium allows 347 to be heated repeatedly at temperatures up to 1650°F. As a result, this metal is commonly used in high-temperature equipment such as gaskets and expansion joints, as well as in rocket engines and chemical manufacturing.
In addition to its heat resistance, 347 enjoys better resistance to creep and stress fracture corrosion. This is another advantage of Type 304, as the characteristics of Type 347 may be more suitable for environments where stability is a major concern.
Type 347 is known to be machinable by all common welding techniques, along with hot and cold working. However, when being heat treated, the metal must be heated in the 2100 to 2250°F range. This is due to the fact that 347 cannot be work hardened under heat treatment. Cold reduction is the only way to take advantage of the high temperature properties of this alloy.

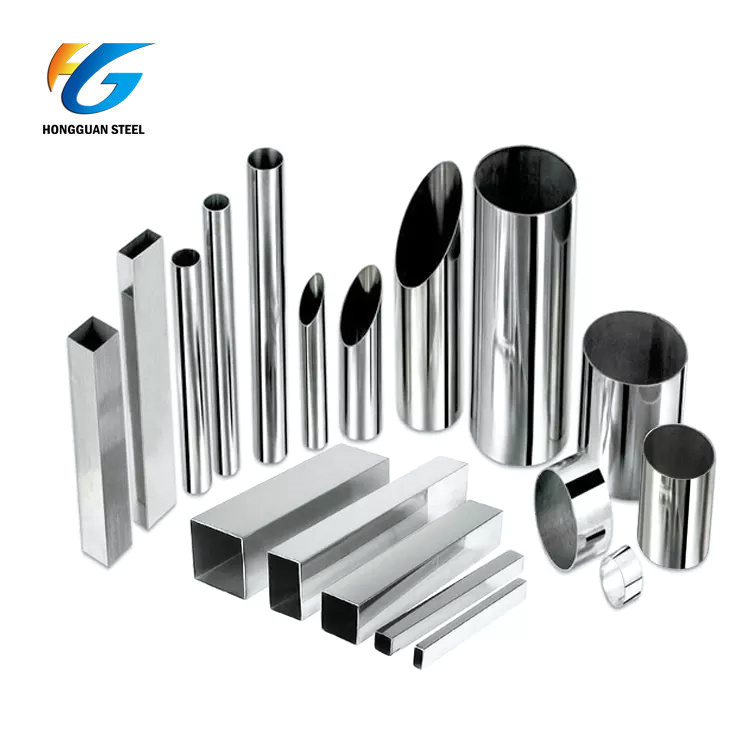

Product Name | 347 Stainless Steel Square Pipe |
Shape | Round tubes, Square tubes, rectangular tubes |
Length | As required |
Outer diameter | Round tube: 8mm to 680 mm |
Square tube: 10x10mm to 300x300mm | |
Rectangular tube: 10x20mm to 120x180mm | |
Technique | Hot rolled / cold rolled |
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
Surface Treatment | Polishing,annealing,pickling,bright |
Material | 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L |
Application | Decoration, Construction, Upholstery, Water supplying, handrail, railing, staircase, door, window, balcony, fence, bench, furniture etc |
Shipment time | Within 7-15 workdays after receiving deposit or L/C |
Export packing | Standard Export Seaworthy Package.Suit for all kinds of transport,or as require |
Honggang steel is an ISO certified China 347 stainless square steel pipe exporter. Our 347 stainless steel square pipe/tube is tested to international standards and specifications by DIN, JIS, EN, ASTM, etc. As a distributor and dealer of 347 stainless steel square tubes in your country/region, we are a trustworthy supplier. We have a large inventory in Asia, GCC, Gulf, the Middle East, UK, supplying more than 38 countries, and we provide various services as follows.
Support third-party inspection
Customized processing stainless steel one-stop sourcing
Provide free samples
Provide a full range of stainless steel customization
24 hours online, able to reply on time
Thank you for visiting Honggang steel. Please send us an email to start our first cooperation. For more details of each item, please contact our sales for information.
347 is similar to 321 stainless steel, which is often used as a stable alternative to type 304. However, in the case of 347, the stabilizer is niobium. This metal strengthens 347's already present ability to withstand intergranular corrosion to its maximum capacity. In addition, niobium allows 347 to be heated repeatedly at temperatures up to 1650°F. As a result, this metal is commonly used in high-temperature equipment such as gaskets and expansion joints, as well as in rocket engines and chemical manufacturing.
In addition to its heat resistance, 347 enjoys better resistance to creep and stress fracture corrosion. This is another advantage of Type 304, as the characteristics of Type 347 may be more suitable for environments where stability is a major concern.
Type 347 is known to be machinable by all common welding techniques, along with hot and cold working. However, when being heat treated, the metal must be heated in the 2100 to 2250°F range. This is due to the fact that 347 cannot be work hardened under heat treatment. Cold reduction is the only way to take advantage of the high temperature properties of this alloy.
Product Name | 347 Stainless Steel Square Pipe |
Shape | Round tubes, Square tubes, rectangular tubes |
Length | As required |
Outer diameter | Round tube: 8mm to 680 mm |
Square tube: 10x10mm to 300x300mm | |
Rectangular tube: 10x20mm to 120x180mm | |
Technique | Hot rolled / cold rolled |
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
Surface Treatment | Polishing,annealing,pickling,bright |
Material | 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L |
Application | Decoration, Construction, Upholstery, Water supplying, handrail, railing, staircase, door, window, balcony, fence, bench, furniture etc |
Shipment time | Within 7-15 workdays after receiving deposit or L/C |
Export packing | Standard Export Seaworthy Package.Suit for all kinds of transport,or as require |
Honggang steel is an ISO certified China 347 stainless square steel pipe exporter. Our 347 stainless steel square pipe/tube is tested to international standards and specifications by DIN, JIS, EN, ASTM, etc. As a distributor and dealer of 347 stainless steel square tubes in your country/region, we are a trustworthy supplier. We have a large inventory in Asia, GCC, Gulf, the Middle East, UK, supplying more than 38 countries, and we provide various services as follows.
Support third-party inspection
Customized processing stainless steel one-stop sourcing
Provide free samples
Provide a full range of stainless steel customization
24 hours online, able to reply on time
Thank you for visiting Honggang steel. Please send us an email to start our first cooperation. For more details of each item, please contact our sales for information.
347 | |
Ni | 9 – 13 |
Cr | 17 – 19 |
C | 0.08 max |
Mo | 3 – 4 |
Fe | Balance |
Mn | 2 max |
Si | 0.75 max |
S | 0.03 max |
P | 0.045 max |
Co + Ta | 10xC min |
1.00 max |
The chemical composition and mechanical properties provided are general approximations. Please contact our customer service department for material test reports.
347 | |
Ni | 9 – 13 |
Cr | 17 – 19 |
C | 0.08 max |
Mo | 3 – 4 |
Fe | Balance |
Mn | 2 max |
Si | 0.75 max |
S | 0.03 max |
P | 0.045 max |
Co + Ta | 10xC min |
1.00 max |
The chemical composition and mechanical properties provided are general approximations. Please contact our customer service department for material test reports.
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
347 | 515 | 205 | 40 | 92 | 201 |
The chemical composition and mechanical properties provided are general approximations. Please contact our customer service department for material test reports.
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
347 | 515 | 205 | 40 | 92 | 201 |
The chemical composition and mechanical properties provided are general approximations. Please contact our customer service department for material test reports.
