317LN has excellent corrosion resistance in a wide range of chemicals, especially those encountered in acidic chloride environments in pulp and paper mills. The increased chromium, nickel and molybdenum content improves resistance to chloride pitting and general corrosion compared to 316LN stainless steel. Resistance increases with increasing molybdenum alloy content. 317LN can withstand sulfuric acid concentrations of up to 5% at temperatures up to 120 ° F (49 ° C). The alloy has excellent resistance to highly concentrated solutions at temperatures below 100 ° F (38 ° C). However, it is recommended that tests be used to consider the effects of specific operating conditions that may affect corrosion behavior. 317LN is more resistant to corrosion than conventional 316 alloy at the point of condensation where condensation of sulfur-containing gases occurs. Acid concentration has a significant effect on the rate of attack in this environment and should be carefully determined by service testing.

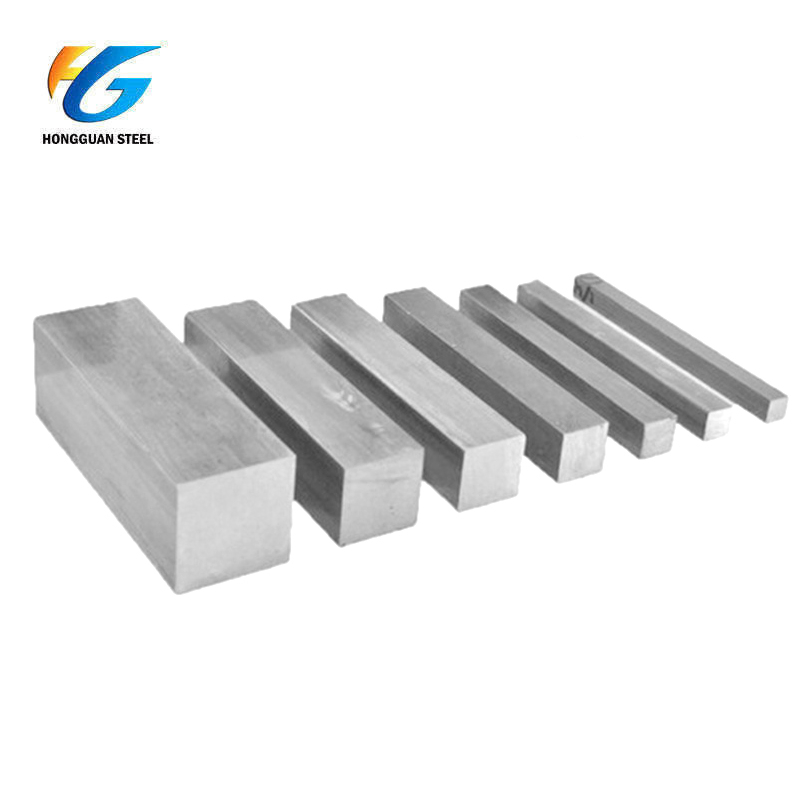

Product Name | 317LN Stainless Steel Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| Ni | Cr | Mo | Mn | Si |
| 11.0 - 15.0 | 18.0 - 20.0 | 3.0 - 4.0 | 2.0 Max | 0.75 Max |
| C | N | S | P | Fe |
| 0.03 Max | 0.1 Max | 0.03 Max | 0.045 Max | Balance |
| Ultimate Tensile Strength, ksi Minimum | 0.2% Yield Strength, ksi Minimum | Elongation Percent | Hardness Max. |
| 75 | 30 | 35 | 217 Brinell |
317LN has excellent corrosion resistance in a wide range of chemicals, especially those encountered in acidic chloride environments in pulp and paper mills. The increased chromium, nickel and molybdenum content improves resistance to chloride pitting and general corrosion compared to 316LN stainless steel. Resistance increases with increasing molybdenum alloy content. 317LN can withstand sulfuric acid concentrations of up to 5% at temperatures up to 120 ° F (49 ° C). The alloy has excellent resistance to highly concentrated solutions at temperatures below 100 ° F (38 ° C). However, it is recommended that tests be used to consider the effects of specific operating conditions that may affect corrosion behavior. 317LN is more resistant to corrosion than conventional 316 alloy at the point of condensation where condensation of sulfur-containing gases occurs. Acid concentration has a significant effect on the rate of attack in this environment and should be carefully determined by service testing.
Product Name | 317LN Stainless Steel Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| Ni | Cr | Mo | Mn | Si |
| 11.0 - 15.0 | 18.0 - 20.0 | 3.0 - 4.0 | 2.0 Max | 0.75 Max |
| C | N | S | P | Fe |
| 0.03 Max | 0.1 Max | 0.03 Max | 0.045 Max | Balance |
| Ultimate Tensile Strength, ksi Minimum | 0.2% Yield Strength, ksi Minimum | Elongation Percent | Hardness Max. |
| 75 | 30 | 35 | 217 Brinell |
