As customers' demands
Hongguan

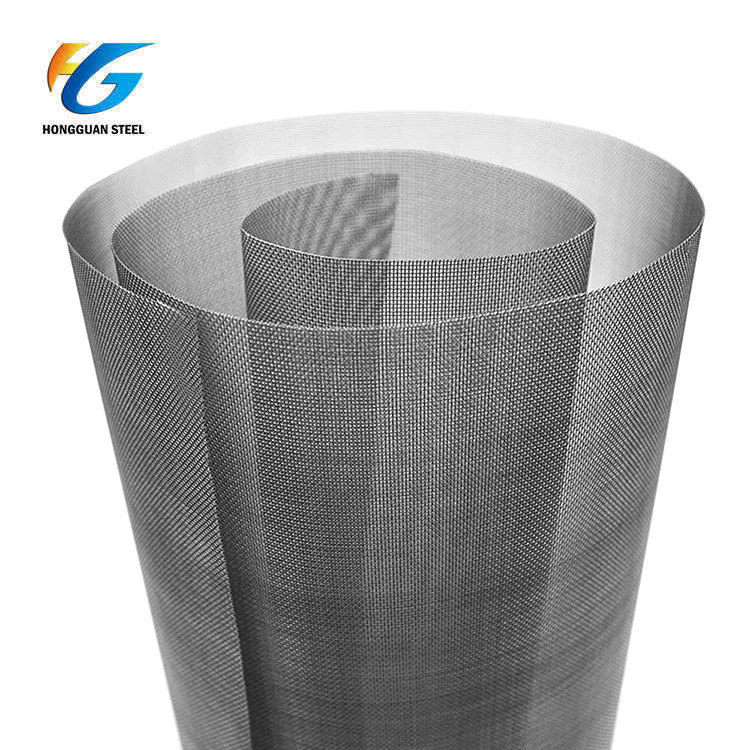

317 stainless steel wire mesh is identical to 316 stainless steel wire mesh, except that its slightly higher chromium, nickel and molybdenum content (18% chromium, 14% nickel, 3% molybdenum) increases corrosion resistance. Type 317 exhibits excellent pitting resistance in many chemical environments, including sulfur, acetic acid, formic acid, citric acid, chlorides, phosphoric acid, tartaric acid solutions and seawater.
| Specification of Plain Weave | ||||||
| Mesh/lnch (mesh) | Wire Diameter (mm) | Aperture (mm) | Mesh/lnch (mesh) | Wire Diameter (mm) | Aperture (mm) | |
| 2 | 1.8 | 10.9 | 60 | 0.15 | 0.273 | |
| 3 | 1.6 | 6.866 | 70 | 0.14 | 0.223 | |
| 4 | 1.2 | 5.15 | 80 | 0.12 | 0.198 | |
| 5 | 0.91 | 4.17 | 90 | 0.11 | 0.172 | |
| 6 | 0.8 | 3.433 | 100 | 0.1 | 0.154 | |
| 8 | 0.6 | 2.575 | 120 | 0.08 | 0.132 | |
| 10 | 0.55 | 1.99 | 140 | 0.07 | 0.111 | |
| 12 | 0.5 | 1.616 | 150 | 0.065 | 0.104 | |
| 14 | 0.45 | 1.362 | 160 | 0.065 | 0.094 | |
| 16 | 0.4 | 1.188 | 180 | 0.053 | 0.088 | |
| 18 | 0.35 | 1.06 | 200 | 0.053 | 0.074 | |
| 20 | 0.3 | 0.97 | 250 | 0.04 | 0.061 | |
| 26 | 0.28 | 0.696 | 300 | 0.035 | 0.049 | |
| 30 | 0.25 | 0.596 | 325 | 0.03 | 0.048 | |
| 40 | 0.21 | 0.425 | 350 | 0.03 | 0.042 | |
| 50 | 0.19 | 0.318 | 500 | 0.025 | 0.0385 | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317 | 0.08 max | 2 max | 1.0max | 0.045 max | 0.030 max | 18 – 20 | 3.0-4.0 | 11.0-15.0 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
