SS 317/317L grades have many distinguishing features, including corrosion resistance, high strength, good ductility, durability and extended service life. They also have strong creep fracture properties, high tensile strength and resistance to stress cracking. Suitable for use in a variety of corrosive and acidic media. Due to this composition containing nickel and chromium, SS 317L coils are corrosion resistant, have high tensile strength, and are long lasting. It has excellent heat transfer coefficient, thermal and electrical conductivity. SS 317 is a modified version of another stainless steel alloy with molybdenum alloy accumulation. This is done to increase strength and improve resistance to porous corrosion. SS 317 alloy sheet has excellent toughness and thermal strength. On the other hand, 317L stainless steel is a lower carbon version of the 317 grade alloy with the same corrosion resistance and strength. They both have high tensile strength and high stress rupture ratio.

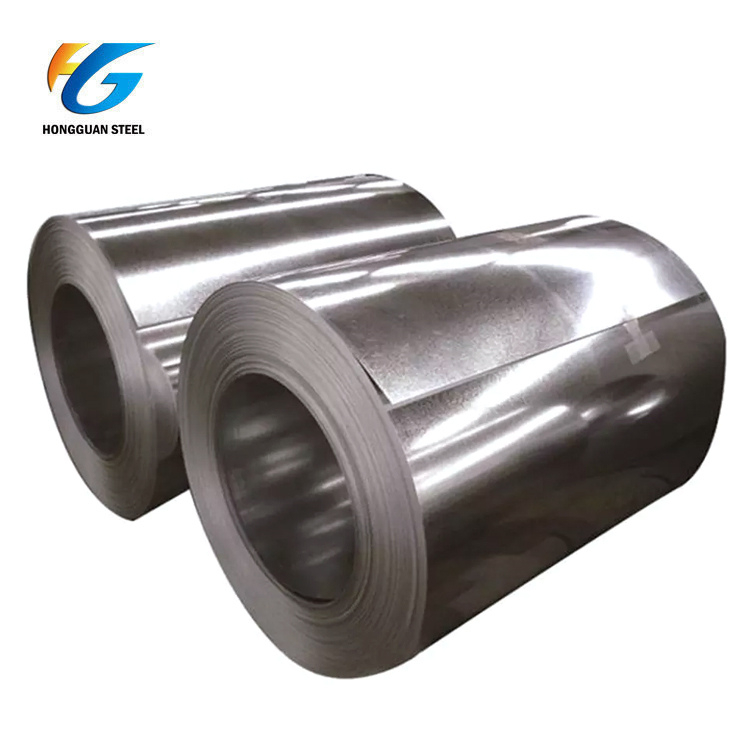

Product Name | 317 Stainless Steel Coil |
Thinckness | Cold rolled: 0.15mm-10mm Hot rolled: 3.0mm-180mm or as customer' s requirement |
Width | Cold rolled: 1000, 1219, 1250mm, and so on Hot rolled: 1250, 1500, 2000, 2200mm, and so on |
Finish | 2B, 2D, 4B, BA, HL, MIRROR, brush, NO. 1-NO. 4, 8K, and so on |
Color | Gold mirror, Sapphire mirror, Rose mirror, black mirror, bronze mirror; Gold brushed, Sapphire brushed, Rose brushed, black brushed etc |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Material | 300series: 301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 |
Package | Clients' requirement and Standard export sea-worthy packing |
Delivery time | 7-15 days subject to the clients' requirement and quantity |
Hongguan steel is an ISO 9001:2008 certified company and a leading supplier and exporter of wholesale 317 stainless steel coil. We can produce many rare grades and non-standard sizes to meet special customer requirements. 317 stainless steel coil can be cut to your requirements and specifications, with all edges securely protected. Complete mill test reports and third-party inspection are provided before shipment. Our staff is online 24 hours a day and can respond promptly if you need us.
SS 317/317L grades have many distinguishing features, including corrosion resistance, high strength, good ductility, durability and extended service life. They also have strong creep fracture properties, high tensile strength and resistance to stress cracking. Suitable for use in a variety of corrosive and acidic media. Due to this composition containing nickel and chromium, SS 317L coils are corrosion resistant, have high tensile strength, and are long lasting. It has excellent heat transfer coefficient, thermal and electrical conductivity. SS 317 is a modified version of another stainless steel alloy with molybdenum alloy accumulation. This is done to increase strength and improve resistance to porous corrosion. SS 317 alloy sheet has excellent toughness and thermal strength. On the other hand, 317L stainless steel is a lower carbon version of the 317 grade alloy with the same corrosion resistance and strength. They both have high tensile strength and high stress rupture ratio.
Product Name | 317 Stainless Steel Coil |
Thinckness | Cold rolled: 0.15mm-10mm Hot rolled: 3.0mm-180mm or as customer' s requirement |
Width | Cold rolled: 1000, 1219, 1250mm, and so on Hot rolled: 1250, 1500, 2000, 2200mm, and so on |
Finish | 2B, 2D, 4B, BA, HL, MIRROR, brush, NO. 1-NO. 4, 8K, and so on |
Color | Gold mirror, Sapphire mirror, Rose mirror, black mirror, bronze mirror; Gold brushed, Sapphire brushed, Rose brushed, black brushed etc |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Material | 300series: 301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 |
Package | Clients' requirement and Standard export sea-worthy packing |
Delivery time | 7-15 days subject to the clients' requirement and quantity |
Hongguan steel is an ISO 9001:2008 certified company and a leading supplier and exporter of wholesale 317 stainless steel coil. We can produce many rare grades and non-standard sizes to meet special customer requirements. 317 stainless steel coil can be cut to your requirements and specifications, with all edges securely protected. Complete mill test reports and third-party inspection are provided before shipment. Our staff is online 24 hours a day and can respond promptly if you need us.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
317/317L | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
317/317L | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
