317/317L Stainless Steel Square Bar/Rod
Home » Products(1) » Stainless steel products » Stainless Steel Bar/Rod » Stainless Steel Square Bar » 317/317L Stainless Steel Square Bar/Rod

Product Category

Leave a Message
Get Relpy Now


317/317L Stainless Steel Square Bar/Rod

Material Grade: 201/304/304l/316/316l/321/309s/310s/410/420/430/904l/2205/2507
Type: Ferritic, Austenite, Martensite, Duplex
Technology: Cold Rolled and Hot Rolled
Size: According to the customer's requests
Certifications: ISO 9001,SGS,BV
Payment: TT, LC, Western Union.
Service: Third party testing
Delivery: Within 7-15 days or considering the quantity
  • As customers' demands

  • Hongguan

317/317L Stainless Steel Square Bar&Rod China Manufacturer

Hongguan Steel is a renowned manufacturer, trader and exporter of Stainless Steel 317/317L Square Steel, which is non-magnetic in annealed condition but may be slightly magnetic after welding. Stainless steel 317 square bar is annealed at 1010 degrees C-1121 degrees C (1850 degrees F-2050 degrees F) and then cooled. SS 317L square bar is tougher than stainless steel 304 square bar and has long chips and chip breakers are recommended. one known exception to this rule in SS 317 square bar is highly oxidizing acids such as nitric acid which contains molybdenum stainless steel which is less resistant to oxidation. Therefore, if your process uses very dilute (less than 3-4%) hydrochloric acid, moderately concentrated (10%) sulfuric acid, or sodium hydroxide (aka caustic soda), then SS 317L square bars may be worth the extra cost over SS 316 square bars or SS 304 square bars.

Alloy 317 square bar is easy to weld with the full range of conventional welding procedures (except oxyacetylene). Alloy 317L square bar is an austenitic chromium-nickel stainless steel with excellent corrosion resistance, and its high molybdenum content enhances the grade's superior pitting resistance.

317/317L Stainless Steel Square Bar&Rod Description

Product name 317/317L Stainless steel square bar/rod
Material 304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202,405,409,
Type Round,square,hexagonal,flat,angle
Surface Pickled,Black,Bright,Polishing,Blasting,etc
Specification Round bar Diameter: 3mm~800mm
Angle bar Size: 3mm*20mm*20mm~12mm*100mm*100mm
Square bar Size: 4mm*4mm~100mm*100mm
Flat bar Thickness: 2mm~100mm
Width:  10mm~500mm
Hexagonal Size: 2mm~100mm
Quality test we can offer MTC (mill test certificate)
MOQ 500 kilograms
Payment terms L/C T/T
Stock or not enough stock
Packing Bundled,wooden box for export standard package
Delivery time 7-15 dyas,or according to the order quantity or upon negotiation

317/317L Stainless Steel Square Bar&Rod Chemical Properties

Grade C Cr Mn Ni P S Si
SS 317 0.08 max. 18.0 - 20.0 2.00 max. 11.0 - 14.0 0.045 max. 0.03 max. 1.00 max.
SS 317L 0.03 max. 18.0 - 20.0 2.00 max. 11.0 - 15.0 0.045 max. 0.03 max. 0.75 max.

317/317L Stainless Steel Square Bar&Rod Mechanical Properties

Grade Density MeltingPoint TensileStrength YieldStrength(0.2%Offset) Elongation
SS 317 / 317L 7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35%

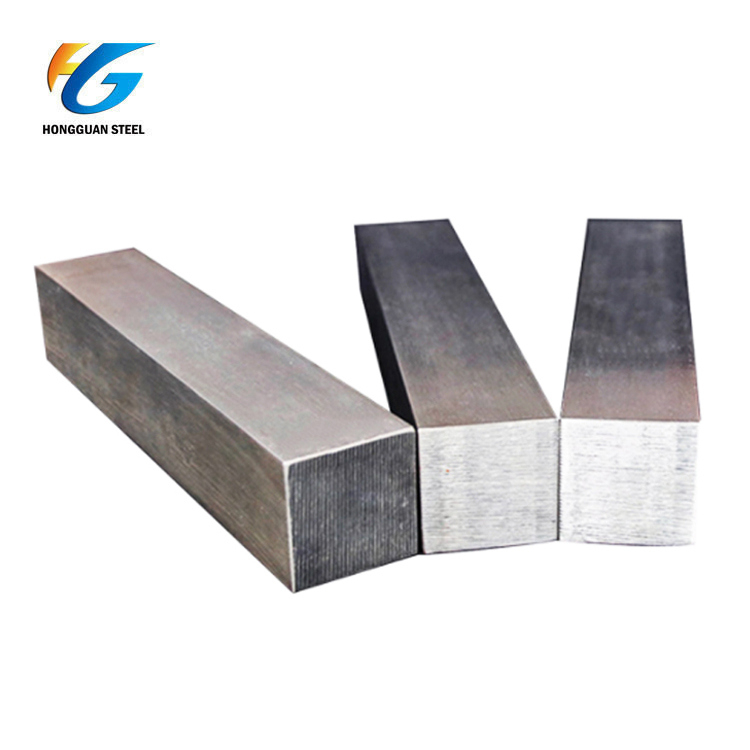

Stainless Steel Square Bar&Rod Show

stainless steel square bar

About us

Hongguan steel is one of the top stainless steel suppliers in China and can produce stainless steel square bar in various grades and thicknesses. We are popular with many companies for our excellent quality and low price. And all of our 316Ti stainless steel square bar are ISO 9001:2015 certified and strictly comply with BS EN 10088-2 specification. Please check our website or contact our professional technical team to learn more about our products.
