As customers' demands
Hongguan
317/317L is a molybdenum-containing austenitic stainless steel that is significantly more resistant to chemical attack than conventional chromium-nickel austenitic stainless steels such as Alloy 304. In addition, alloy 317L has higher creep, stress-rupture and tensile strength at elevated temperatures than conventional stainless steels. It is a low carbon or "L" grade that provides resistance to sensitization during welding and other hot work processes.
Alloy 317L is a low carbon corrosion resistant austenitic chromium-nickel-molybdenum stainless steel. The high content of these elements ensures that the alloy has superior chloride pitting and general corrosion resistance over the traditional 304/304L and 316/316L grades. Relative to 316L, this alloy provides better corrosion resistance in strong corrosive environments containing sulfur media, chlorides and other halides.
The low carbon content of alloy 317L allows it to be used in the welded condition without intergranular corrosion due to precipitation of chromium carbide. With the addition of nitrogen as a strengthening agent, the alloy can be double certified as Alloy 317.
Alloy 317L is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, but the material will be hardened by cold working. Alloy 317L can be easily welded and machined by standard shop fabrication methods.

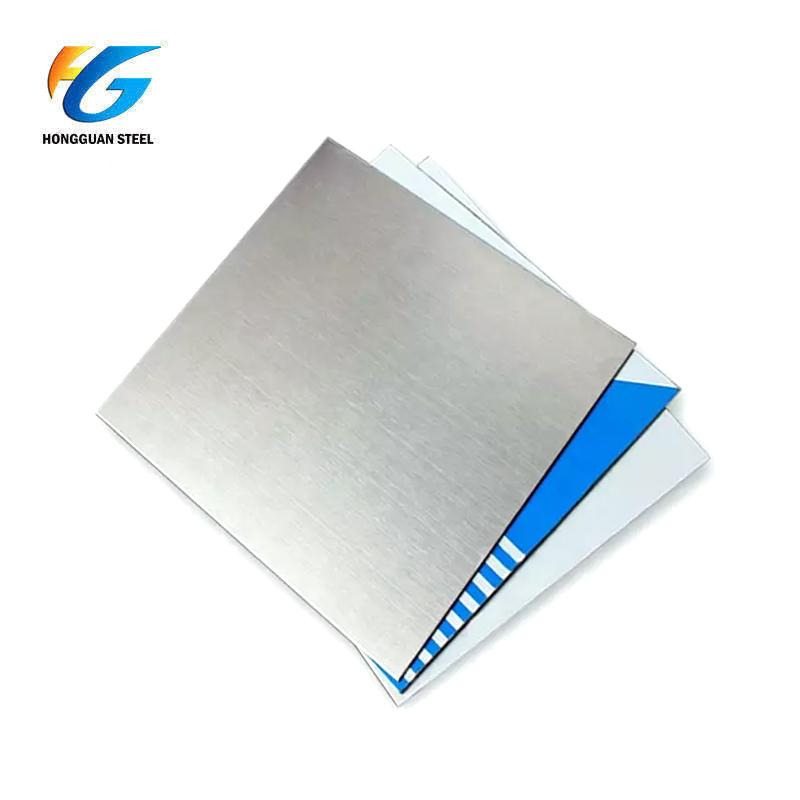

| Product | 317/317L Stainless Steel Sheet/Plate |
| Surface Finish | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Technique | Hot Rolled / Cold Rolled |
| Standard | GB JIS ASTM ASME EN |
| Steel Grade | 317/317L |
| Color | Standard RAL color:red,bule,white,grey,brick,etc. |
| Stock Dimension | 0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm;8mm-80mm x 1500/1800/2000mm/2500 x 6000mm;cut to size according to customers' demands |
| Service | OEM, customized processing service, customized fabrication by drawings |
| Processing Type | Cutting, bending,stamping,welding,cnc machining |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |
| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Surface finish | Characteristics & Application |
| NO.1 | Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
| NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull products can be used as automobile parts, building materrials and pipings. |
| NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright ness with discontinuous coarse stria, used as in ner and ex ter nal or na ments for building, electrical appliances and kitchen uten sils etc. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for lectrical appliances, mirror, kitchen apparatus, or nament materials etc. |
| Chemical Composition (%) of 317/317L Stainless Steel Plate | ||||||||
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum | Manganese | Nickel | Nitrogen |
| 0.03 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 3.0-4.0 | 2 | 11.0-15.0 | 0.1 |
| Mechanical Properties of 317/317L Stainless Steel Plate | |||||
| Yield Strengtd | Ultimate Tensile | Elongation | Hardness | ||
| 0.2% Offset | Strength | in 2 in. | |||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
317/317L is a molybdenum-containing austenitic stainless steel that is significantly more resistant to chemical attack than conventional chromium-nickel austenitic stainless steels such as Alloy 304. In addition, alloy 317L has higher creep, stress-rupture and tensile strength at elevated temperatures than conventional stainless steels. It is a low carbon or "L" grade that provides resistance to sensitization during welding and other hot work processes.
Alloy 317L is a low carbon corrosion resistant austenitic chromium-nickel-molybdenum stainless steel. The high content of these elements ensures that the alloy has superior chloride pitting and general corrosion resistance over the traditional 304/304L and 316/316L grades. Relative to 316L, this alloy provides better corrosion resistance in strong corrosive environments containing sulfur media, chlorides and other halides.
The low carbon content of alloy 317L allows it to be used in the welded condition without intergranular corrosion due to precipitation of chromium carbide. With the addition of nitrogen as a strengthening agent, the alloy can be double certified as Alloy 317.
Alloy 317L is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, but the material will be hardened by cold working. Alloy 317L can be easily welded and machined by standard shop fabrication methods.
| Product | 317/317L Stainless Steel Sheet/Plate |
| Surface Finish | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Technique | Hot Rolled / Cold Rolled |
| Standard | GB JIS ASTM ASME EN |
| Steel Grade | 317/317L |
| Color | Standard RAL color:red,bule,white,grey,brick,etc. |
| Stock Dimension | 0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm;8mm-80mm x 1500/1800/2000mm/2500 x 6000mm;cut to size according to customers' demands |
| Service | OEM, customized processing service, customized fabrication by drawings |
| Processing Type | Cutting, bending,stamping,welding,cnc machining |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |
| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Surface finish | Characteristics & Application |
| NO.1 | Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
| NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull products can be used as automobile parts, building materrials and pipings. |
| NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright ness with discontinuous coarse stria, used as in ner and ex ter nal or na ments for building, electrical appliances and kitchen uten sils etc. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for lectrical appliances, mirror, kitchen apparatus, or nament materials etc. |
| Chemical Composition (%) of 317/317L Stainless Steel Plate | ||||||||
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum | Manganese | Nickel | Nitrogen |
| 0.03 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 3.0-4.0 | 2 | 11.0-15.0 | 0.1 |
| Mechanical Properties of 317/317L Stainless Steel Plate | |||||
| Yield Strengtd | Ultimate Tensile | Elongation | Hardness | ||
| 0.2% Offset | Strength | in 2 in. | |||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
