As customers' demands
Hongguan
316Ti (UNS S31635) is a titanium-stabilized version of 316 molybdenum-containing austenitic stainless steel. Compared to traditional chromium-nickel austenitic stainless steels such as 304, 316 alloys are more resistant to general corrosion and pitting/cracking corrosion.
They also provide higher creep, stress rupture and tensile strength at elevated temperatures. High-carbon alloy 316 stainless steels are susceptible to sensitization, which is the formation of grain boundary chromium carbides at temperatures of approximately 900 to 1500°F (425 to 815°C), resulting in intergranular corrosion.
The resistance to sensitization of alloy 316Ti is achieved by the addition of titanium to stabilize the structure and prevent precipitation of chromium carbide, which is the source of sensitization. This stabilization is achieved by medium temperature heat treatment, during which the titanium reacts with carbon to form titanium carbide.
By limiting the formation of chromium carbide, this greatly reduces the susceptibility to sensitization in service. As a result, the alloy can be used at high temperatures for long periods of time without compromising its corrosion resistance. 316Ti has the same resistance to sensitization as the low-carbon version 316L.

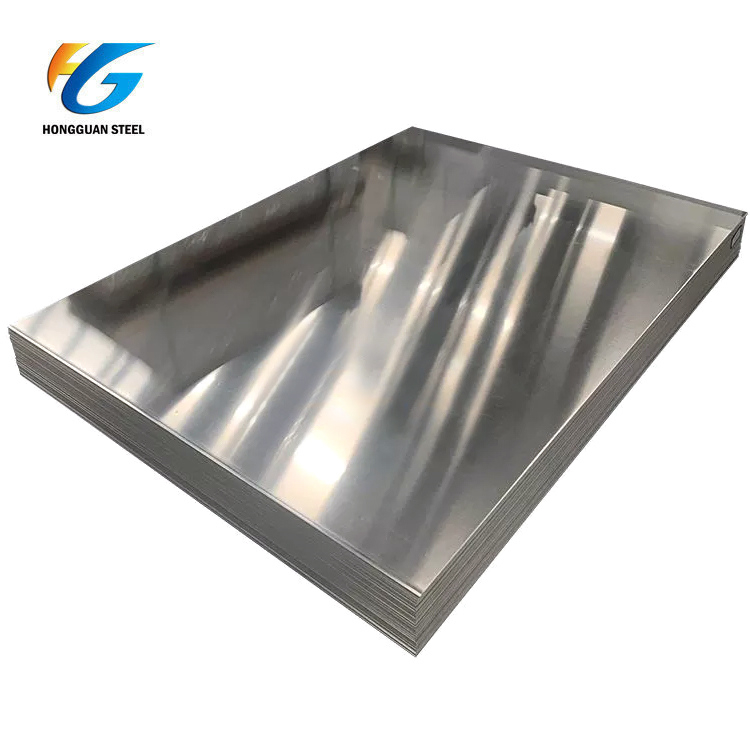

| Product | 316Ti Stainless Steel Sheet/Plate |
| Surface Finish | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Technique | Hot Rolled / Cold Rolled |
| Standard | GB JIS ASTM ASME EN |
| Steel Grade | 316/316L/316H |
| Color | Standard RAL color:red,bule,white,grey,brick,etc. |
| Stock Dimension | 0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm;8mm-80mm x 1500/1800/2000mm/2500 x 6000mm;cut to size according to customers' demands |
| Service | OEM, customized processing service, customized fabrication by drawings |
| Processing Type | Cutting, bending,stamping,welding,cnc machining |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |
| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Surface finish | Characteristics & Application |
| NO.1 | Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
| NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull products can be used as automobile parts, building materrials and pipings. |
| NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright ness with discontinuous coarse stria, used as in ner and ex ter nal or na ments for building, electrical appliances and kitchen uten sils etc. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for lectrical appliances, mirror, kitchen apparatus, or nament materials etc. |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | - | 10 | - | - | - | - | - | 16 | 2 |
| max. | 0.08 | 14 | 0.75 | 0.1 | 0.03 | 2 | 0.045 | 18 | 3 | |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
