As customers' demands
Hongguan

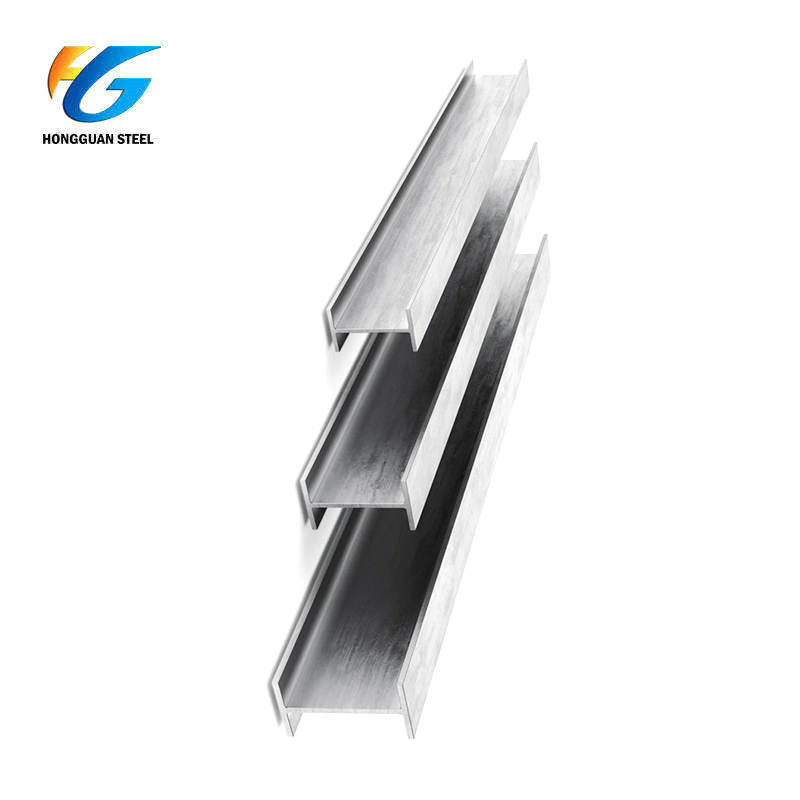

China stainless steel H-beam is processed according to China structural steel H-beam specifications. Our factory can supply both welded and hot rolled stainless steel H-beams, which can be cut to exact length and polished according to customers' stainless steel structural requirements.
| Product Name | 316Ti Stainless steel H-beam / stainless steel I-beam |
| Standard | ASTM, JIS, AISI, ASTM, GB, DIN, EN |
| Grade | 201, 202 , 304 , 304L , 304H , 309, 309S , 310 , 310S ,316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 , |
| 430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-4pH ,N08367 (AL 6XN ) ,etc. | |
| Tolerance | +/-1% |
| Length | 1-12m or customized |
| Size | regular or customized |
| Service | OEM, customized processing service |
| Technique | Hot rolled/Cold Rolled |
| Export packing | Standard export seaworthy package |
| Delivery time | 7-10 days after receiving deposit |
| Application | costruction industry/fabrication industry/home decoration/building materials |
H-beam - H-beam is stronger than I-beam, but it requires more effort to produce. instead of being rolled together as one part, H-beam is made from three separate pieces and welded together. This makes each part stronger because you are using the milling equipment three times to reinforce the material, rather than using the equipment one at a time to fabricate an item. Overall, H-beams are much heavier than I-beams and can withstand more force and stress.
I-beam - is the most common beam in our inventory. I-beams have a center web that can only be rolled as far as the rolling mill equipment can handle (5/8"). I-beams are lighter in weight, which is why they are used so often. The I-beam is also a complete piece of metal. It is rolled from a single part. It can be hot rolled or laser fused.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
