As customers' demands
Hongguan
Alloy 316/316L is a molybdenum-containing austenitic stainless steel. The high nickel and molybdenum content of this grade makes it superior to 304 in overall corrosion resistance, especially pitting and crevice corrosion in chloride environments. In addition, alloy 316/316L has excellent high temperature tensile, creep and tensile strength, as well as excellent formability and weldability. 316L is a low carbon version of 316 that is immune to sensitization, and as such, it is very frequently used in heavy gauge welded parts.

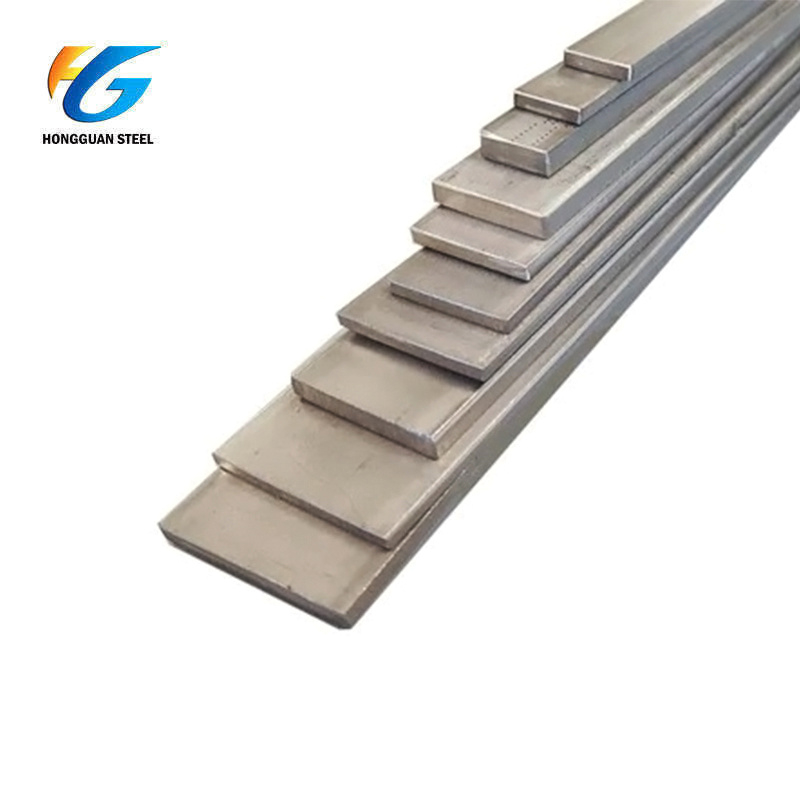

Product Name | 316L Stainless Steel Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 316L (S31603) | 0.03max | 2max | 0.75max | 0.045max | 0.03max | min: 16.0 max:18.0 | min: 2.0 max: 3.0 | min: 10.0 max:14.0 | 0.1 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316L (S31603) | 70 | 25 | 40 | 217 | 95 |
Alloy 316/316L is a molybdenum-containing austenitic stainless steel. The high nickel and molybdenum content of this grade makes it superior to 304 in overall corrosion resistance, especially pitting and crevice corrosion in chloride environments. In addition, alloy 316/316L has excellent high temperature tensile, creep and tensile strength, as well as excellent formability and weldability. 316L is a low carbon version of 316 that is immune to sensitization, and as such, it is very frequently used in heavy gauge welded parts.
Product Name | 316L Stainless Steel Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 316L (S31603) | 0.03max | 2max | 0.75max | 0.045max | 0.03max | min: 16.0 max:18.0 | min: 2.0 max: 3.0 | min: 10.0 max:14.0 | 0.1 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316L (S31603) | 70 | 25 | 40 | 217 | 95 |
