As customers' demands
Hongguan

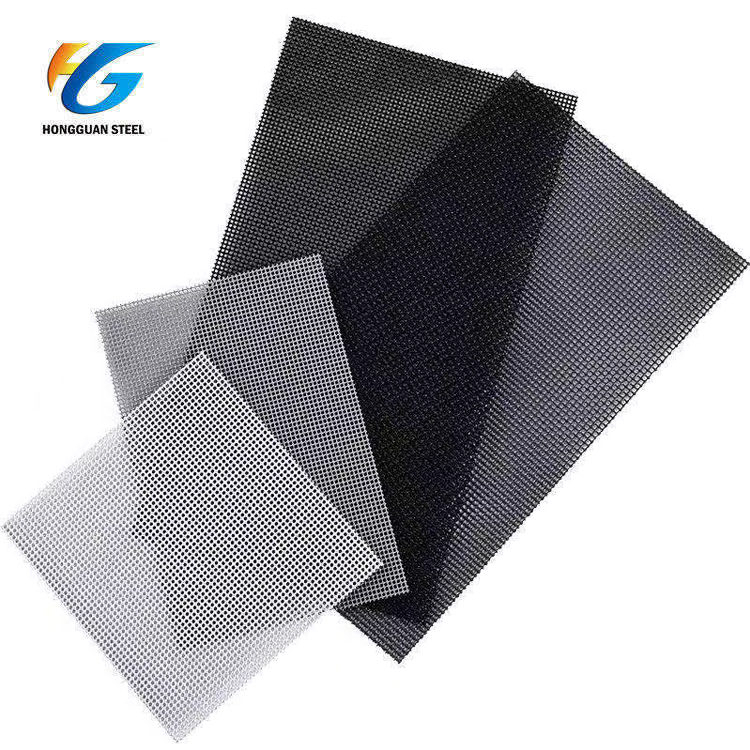

316/316L stainless steel (Din1.4401/1.4404 or ASTM S31600/31603) is an austenitic stainless steel. Its corrosion resistance and high temperature strength are greatly improved due to the addition of Mo elements. It can withstand temperatures of 1200-1300 degrees and can be used under severe conditions. After drawing and annealing, 316/316L stainless steel can be produced into wire mesh. Gaoyuan is a professional manufacturer and seller of 316/316L stainless steel wire mesh.
Properties of 316/316L stainless steel wire mesh
Corrosion resistance
The corrosion resistance is better than 304/304L stainless steel wire mesh, and it has good corrosion resistance in the production of pulp and paper. In addition, 316/316L stainless steel wire mesh is resistant to marine and aggressive industrial environments.
Heat Resistance
316/316L stainless steel wire mesh (06Cr17Ni12Mo2) has good oxidation resistance in intermittent use up to 871°C (1600°F) and continuous use above 927°C (1700°F). In the range of 427°C-857°C (800°F-1575°F), it is best not to use 316 stainless steel continuously, but when 316/316L stainless steel wire mesh is used continuously outside this temperature range, the stainless steel has good heat resistance.
316/316L stainless steel wire mesh weaving terminology
Plain weave,Twill weave,Dutch weave,Welded weave,Knitted weave,Embossed weave
| Stainless Steel Wire Mesh | |||||
| Mesh/inch | Wire Diameter | Aperture | Mesh/inch | Wire diameter | Aperture |
| (mm) | (mm) | (mm) | (mm) | ||
| 2mesh | 1.8 | 10.9 | 60mesh | 0.15 | 0.273 |
| 3mesh | 1.6 | 6.866 | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.2 | 5.15 | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.8 | 3.433 | 100mesh | 0.1 | 0.154 |
| 8mesh | 0.6 | 2.575 | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.99 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.5 | 1.616 | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.4 | 1.188 | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.06 | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.3 | 0.97 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
| Stainless steel | Chemical Composition | ||||||||||
| AISI | EN/DIN | UNS/ASTM | C | Mn | P | S | Si | Cr | Ni | Mo | Ti |
| 316 | 14401 | S31600 | ≤0.08 | ≤2 | ≤0.045 | ≤0.030 | ≤1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | |
| 316L | 14404 | S31603 | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| Stainless steel | Mechanical properties | |||||
| AISI | EN/DIN | UNS/ASTM | Tensile Strength | Elongation | Melt | Max. Operating Temperature |
| 316 | 14401 | S31600 | 104 Kpsi | 44% | 2500-2550° F | 1600° F |
| 316L | 14404 | S31603 | 104 Kpsi | 44% | 2500-2550° F | 1600° F |
(1)Fast delivery time, good quality and reasonable price
(2) We can process different finished products according to your requirements
(3) High production capacity will shorten your waiting time
(4) Accepting buyer's specification
(5) Experienced R&D department
For more details about our products, please contact our sales for more information. Thank you for visiting
