As customers' demands
Hongguan

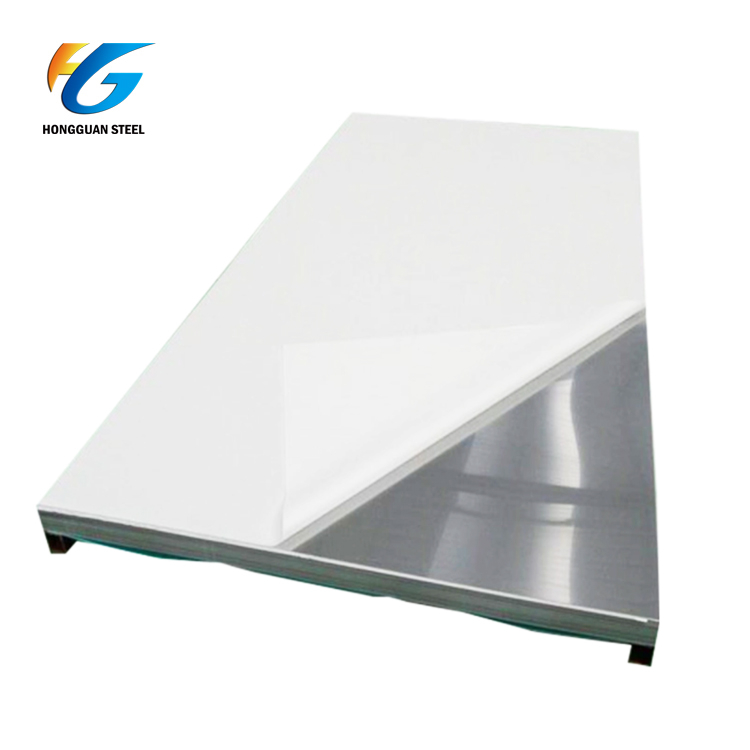

SS 316L stainless steel sheet is a low carbon version of 316 grade sheet. These SS UNS S31603 plates have reduced grain boundary deposits and are widely used for large gauge welded parts (over approximately 6 mm). 316L stainless steel plates have excellent toughness and corrosion resistance. We typically use 316 and 316L plates in highly corrosive industries such as seawater treatment and oil pipelines.
Standard 316/316L stainless steel sheets and plating provides extreme corrosion and heat resistance along with the added benefit of increased strength over other metals. The molybdenum content within 316 stainless steel grade plating provides increased corrosion resistance over 304 stainless steel, which means that it can be used in more corrosive environments. 316 stainless steel sheets also provide outstanding welding characteristics, which means that it can be used for a wide range of applications.
In addition, 316/316L stainless steel sheet has excellent forming and welding characteristics. It can be brake or roll formed into numerous types of parts for applications in the industrial, architectural, and transportation fields. Additionally, stainless steel alloy 316 does not require post-weld annealing when welding thin sections.
| Product | 316/316L Stainless Steel Sheet/Plate |
| Surface Finish | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Technique | Hot Rolled / Cold Rolled |
| Standard | GB JIS ASTM ASME EN |
| Steel Grade | 316/316L |
| Color | Standard RAL color:red,bule,white,grey,brick,etc. |
| Stock Dimension | 0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm;8mm-80mm x 1500/1800/2000mm/2500 x 6000mm;cut to size according to customers' demands |
| Service | OEM, customized processing service, customized fabrication by drawings |
| Processing Type | Cutting, bending,stamping,welding,cnc machining |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |
| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Surface finish | Characteristics & Application |
| NO.1 | Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
| NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull products can be used as automobile parts, building materrials and pipings. |
| NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright ness with discontinuous coarse stria, used as in ner and ex ter nal or na ments for building, electrical appliances and kitchen uten sils etc. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for lectrical appliances, mirror, kitchen apparatus, or nament materials etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16 | 2 | 10 | - |
| Max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316L | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
| max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
SS 316L stainless steel sheet is a low carbon version of 316 grade sheet. These SS UNS S31603 plates have reduced grain boundary deposits and are widely used for large gauge welded parts (over approximately 6 mm). 316L stainless steel plates have excellent toughness and corrosion resistance. We typically use 316 and 316L plates in highly corrosive industries such as seawater treatment and oil pipelines.
Standard 316/316L stainless steel sheets and plating provides extreme corrosion and heat resistance along with the added benefit of increased strength over other metals. The molybdenum content within 316 stainless steel grade plating provides increased corrosion resistance over 304 stainless steel, which means that it can be used in more corrosive environments. 316 stainless steel sheets also provide outstanding welding characteristics, which means that it can be used for a wide range of applications.
In addition, 316/316L stainless steel sheet has excellent forming and welding characteristics. It can be brake or roll formed into numerous types of parts for applications in the industrial, architectural, and transportation fields. Additionally, stainless steel alloy 316 does not require post-weld annealing when welding thin sections.
| Product | 316/316L Stainless Steel Sheet/Plate |
| Surface Finish | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple |
| Technique | Hot Rolled / Cold Rolled |
| Standard | GB JIS ASTM ASME EN |
| Steel Grade | 316/316L |
| Color | Standard RAL color:red,bule,white,grey,brick,etc. |
| Stock Dimension | 0.5mm-4mm x 1220mm/1500mm x 2440mm/2500mm; 5mm-25mm x 1220mm/1500mm x 2440mm/2500mm/6000mm;8mm-80mm x 1500/1800/2000mm/2500 x 6000mm;cut to size according to customers' demands |
| Service | OEM, customized processing service, customized fabrication by drawings |
| Processing Type | Cutting, bending,stamping,welding,cnc machining |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration |
| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Surface finish | Characteristics & Application |
| NO.1 | Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices. |
| NO.2D | Cold-rolled, an nealed and pick led with out skinpassing the dull products can be used as automobile parts, building materrials and pipings. |
| NO.2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abra sive belt of grit #100#120,have bet ter bright ness with discontinuous coarse stria, used as in ner and ex ter nal or na ments for building, electrical appliances and kitchen uten sils etc. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for lectrical appliances, mirror, kitchen apparatus, or nament materials etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16 | 2 | 10 | - |
| Max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316L | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
| max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
