As customers' demands
Hongguan
Type 309 is an austenitic chromium-nickel stainless steel (0.08% maximum carbon). Type 309 is suitable for parts requiring corrosion resistance, heat resistance and oxidation resistance to 2000 degrees Fahrenheit. Strength at elevated temperatures is similar to that of 18-8 stainless steel. This alloy has excellent oxidation resistance and high tensile and creep strength at elevated temperatures. It is more resistant to marine atmospheres than Type 304. It is often considered a heat resistant alloy.

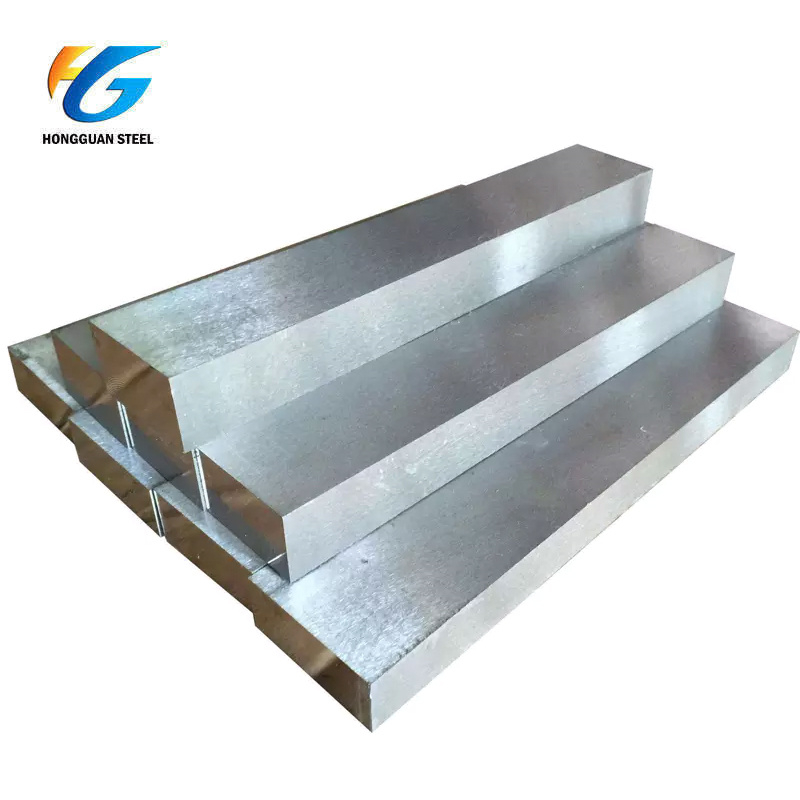

Product Name | 309 Stainless Steel Flat Bar | |
Grade | 200, 300, 400series, etc | |
Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, etc | |
Type | Round, Square, Hexagonal, Flat, Angle | |
Specification | Round bar | Diameter: 3mm~800mm |
Hexagonal | Size: 2mm~100mm | |
Square bar | Size: 4mm*4mm~100mm*100mm | |
Flat bar | Thickness: 2mm~100mm, Width: 10mm~500mm | |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
Standard | AISI, ASTM, DIN, GB, JIS, SUS, ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, GB/T 1220 | |
Treatment | Hot rolled, Cold drawn, Annealed, Grinding | |
Trade Terms | EXW, FOB, CFR, CIF | |
| Grade | C | Mn | Si | P | S | Cr | Ni | Fe |
| 309 | max: 0.20 | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 22.0 max: 24.0 | min: 12.0 max: 15.0 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
| 309 | 40 | 30 | 40 | 217 |
Type 309 is an austenitic chromium-nickel stainless steel (0.08% maximum carbon). Type 309 is suitable for parts requiring corrosion resistance, heat resistance and oxidation resistance to 2000 degrees Fahrenheit. Strength at elevated temperatures is similar to that of 18-8 stainless steel. This alloy has excellent oxidation resistance and high tensile and creep strength at elevated temperatures. It is more resistant to marine atmospheres than Type 304. It is often considered a heat resistant alloy.
