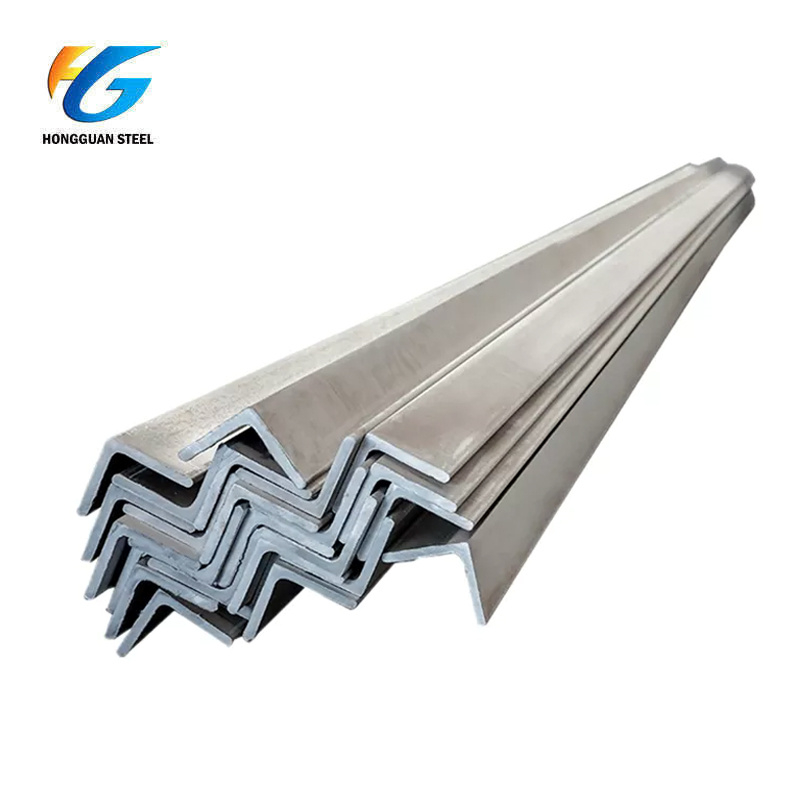

304LN Stainless Steel Angle

Stainless steel angle is a kind of carbon structural steel for construction. In use, it is required to have good weldability, plastic deformation properties and a certain amount of mechanical strength. The raw material billet for the production of stainless steel angle is low carbon billet, and the finished stainless steel angle is delivered in hot rolled, normalized or hot rolled condition. It is widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse racks, etc.
  • As customers' demands

  • Hongguan

Stainless Steel 304LN Angle Bar Manufacturer&Supplier

Stainless Steel Grade 304 is the most commonly used stainless steel. Stainless Steel Grade 304LN is a nitrogen-reinforced version of Stainless Steel Grade 304.

Standard Specification Of 304LN Angle Bar

Specifications ASTM  A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M
SS  317 Angle 5mm to 9mm
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Type Angle, C Channel, U Channel, H Beam, I  Beam, T Beam, W Beam, Chain

304LN Stainless Steel Angle1

304LN Stainless Steel Angle Surface

304LN Stainless Steel Angle Surface

304LN Stainless Steel Angle Chemical Composition

Element Content (%)
Chromium, Cr 18-20
Nickel, Ni 8-12
Manganese, Mn 2 max
Silicon, Si 1 max
Nitrogen, N 0.1-0.16
Phosphorous, P 0.045 max
Carbon, C 0.03 max
Sulfur, S 0.03 max
Iron,  Fe Remainder

304LN Stainless Steel Angle Mechanical Properties

Properties Metric Imperial
Tensile strength 515 MPa 74694 psi
Yield strength 205 MPa 29732 psi
Elongation at break (in 50 mm) 40% 40%
Hardness, Brinell 217 217
Hardness,  Rockwell B 95 95

Stainless Steel Angle Bar Production Workshop

304LN Stainless Steel Angle


304LN Stainless Steel Angle
