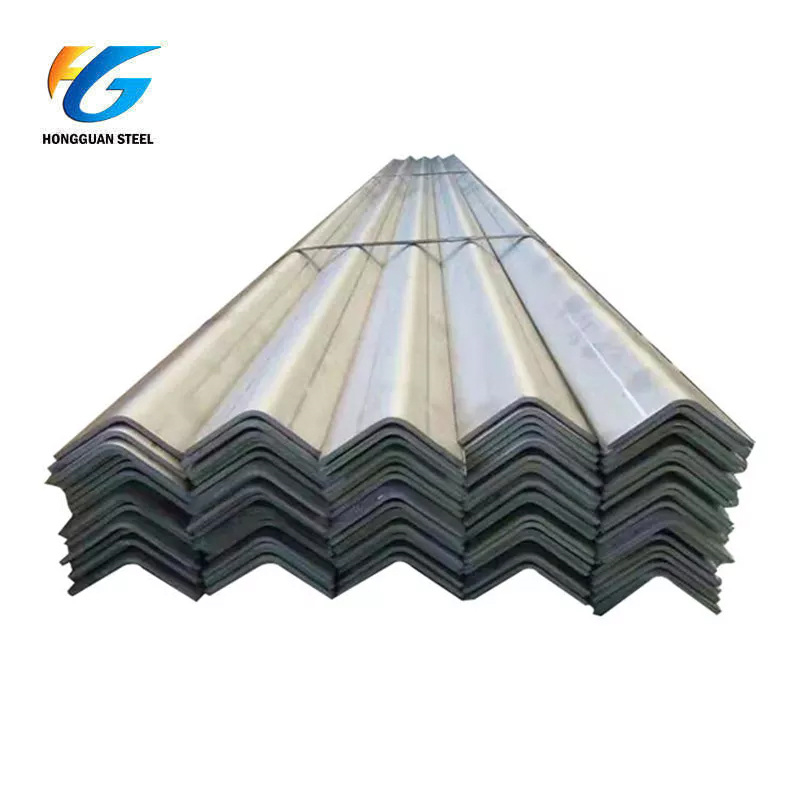

304H Stainless Steel Angle

Stainless steel angle is a kind of carbon structural steel for construction. In use, it is required to have good weldability, plastic deformation properties and a certain amount of mechanical strength. The raw material billet for the production of stainless steel angle is low carbon billet, and the finished stainless steel angle is delivered in hot rolled, normalized or hot rolled condition. It is widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse racks, etc.
  • As customers' demands

  • Hongguan

Stainless Steel 304H Angle Bar Manufacturer&Supplier

Alloy 304 is a T-300 series stainless steel austenitic, which has a minimum of 18% chromium and 8% nickel with a maximum of 0.08% carbon. It is the standard "18/8 stainless steel" commonly used in pans and cooking tools. Alloy 304 is the most versatile and widely used alloy in the stainless steel family. It is used in a wide range of domestic and commercial applications, has excellent corrosion resistance, high ease of fabrication, outstanding formability and great strength. Austenitic stainless steel is also considered to be the most weldable high-alloy steel and can be welded by all fusion and resistance welding processes. With its controlled carbon content of 0.04 to 0.10, Alloy 304H provides improved high temperature strength at temperatures above 800oC Fahrenheit. Alloy 304H offers greater short and long term creep strength at temperatures above 500oC and is more resistant to sensitization than Alloy 304L.

Standard Specification Of 304H Angle Bar

Specifications ASTM  A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M
SS  317 Angle 5mm to 9mm
Thickness 3.0mm – 120mm
Length 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Type Angle, C Channel, U Channel, H Beam, I  Beam, T Beam, W Beam, Chain

304H Stainless Steel Angle1

304H Stainless Steel Angle Surface

304H Stainless Steel Angle Surface

304H Stainless Steel Angle Chemical Composition

Grade Cr Ni C Si Mn P S N
304H min: 18.0 min: 8.0 min: 0.04 0.75 2 0.45 0.03 0.1
max:20.0 max: 10.5 max:0.10 max max max max max

304H Stainless Steel Angle Mechanical Properties

Grade Tensile Strength
ksi  (min.)
Yield Strength 0.2%
Offset ksi (min.)
Elongation -
% in
50 mm (min.)
(Brinell) MAX
(Rockwell B) MAX
304H 75 30 40 201 92

Stainless Steel Angle Bar Production Workshop

304H Stainless Steel Angle


304H Stainless Steel Angle
