As customers' demands
Hongguan

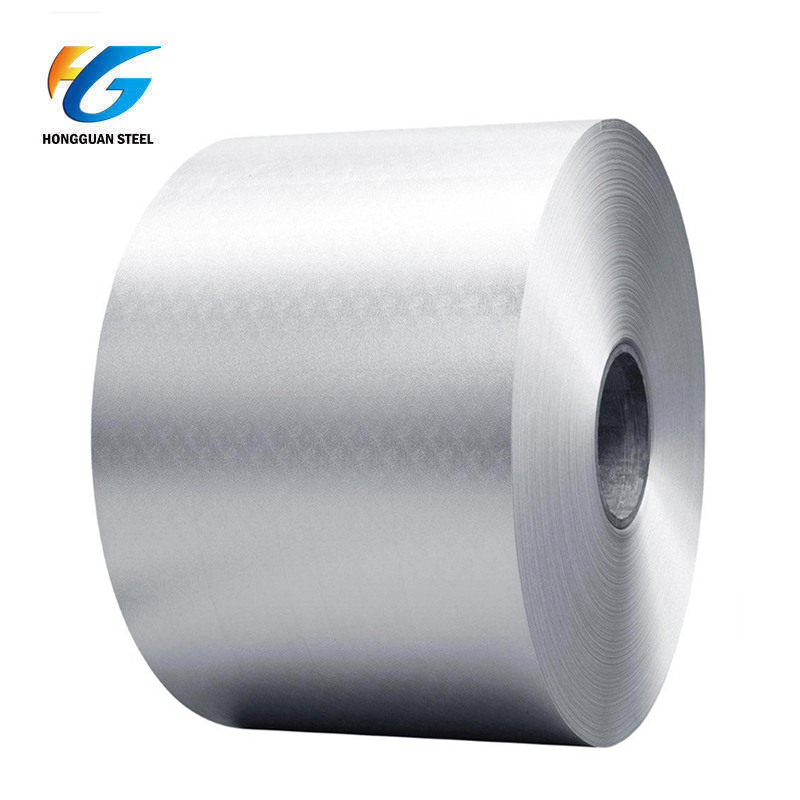

3004 aluminum Coil is an alloy in the forged aluminum-manganese series (3000 or 3000 series). It is similar to the 3003 alloy, except that about 1% magnesium is added. It can be cold worked (but unlike other types of aluminum alloys, it can be heat treated) to produce higher strength temperatures, but with lower ductility. Like most other Al-Mn alloys, 3004 is a general purpose alloy with moderate strength, good workability and good corrosion resistance. It is commonly rolled and extruded (for making beverage cans), but is not usually forged. As a wrought alloy, it is not used for casting.
| Produt Name | 3004 Aluminium Coil |
| Grade | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 2000 Series: 2014, 2024, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 4000 Series: 4045, 4047, 4343, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. |
| Width | 2mm-2200mm |
| Thickness | 0.1mm-200mm |
| Length | As required |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc |
| Temper | 0-H112,T3-T8, T351-851 |
| Surface | Mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc |
| Shipment Time | Within 7-15 workdays after receiving deposit or L/C |
| Export Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package. Suit for all kinds of transport,or as required |
| Free Sample | Send Inquiry to get Free Sample for evaluation |
| Elements | Si | Cu | Mg | Zn | Mn | Fe | Al |
| Contents | 0.3 | 0.25 | 0.8-1.3 | 0.25 | 1-1.5 | 0.7 | rests |
| Mechanical Property | ||||||||
| Aluminum Coil | Grade | Normal Temper | Temper | Tensile Strength N/mm² | Yield Strength N/mm² | Elongation% | Brinell Hardness HB | |
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) | 3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
Free samples
Factory direct sales, low price
Rich market forecast advice
Timely response
Advanced production line with solid production capacity.
Professional order system, complete operation.
Support third-party testing
