As customers' demands
Hongguan

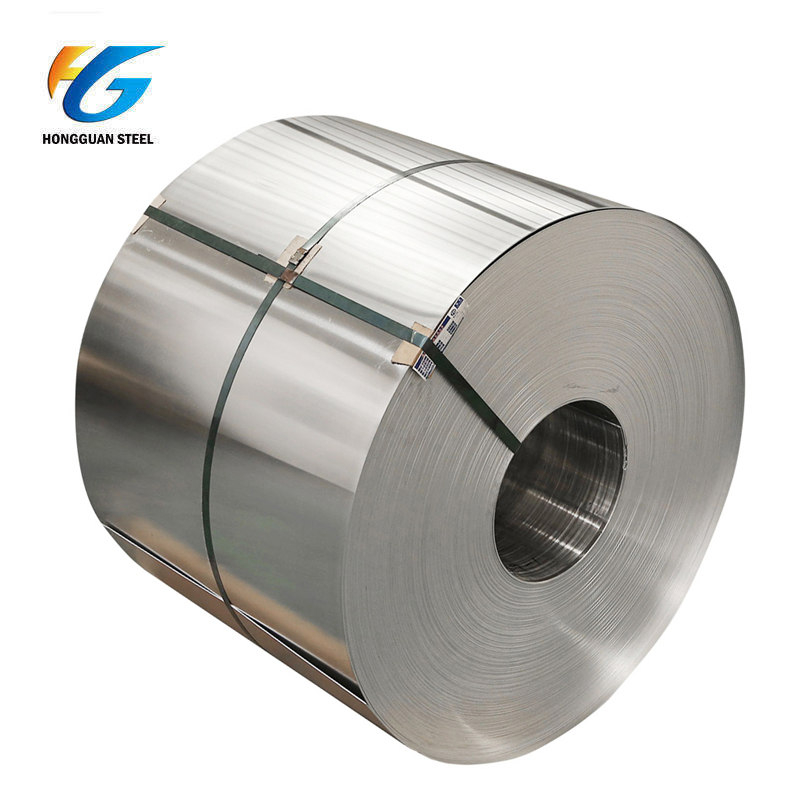

3003 aluminum coil is the most widely used aluminum alloy. It is composed of aluminum, copper, iron, manganese, silicon and zinc. It is commonly used because it is highly corrosion resistant and moderately strong. 3003 aluminum coil is 20% stronger than 1100 grade alloys because it is fused with manganese.
Because it cannot be heat treated, it must be strengthened using cold working alone. The most common applications for 3003 aluminum coil are fuel tanks, sheet metal work and other types of projects that require a stronger metal than 1100 series aluminum. In some cases, it is used in cooking appliances, refrigerator panels, gas piping, storage tanks, garage doors, builder's hardware and awning slats.
| Produt Name | 3003 Aluminium Coil |
| Grade | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 2000 Series: 2014, 2024, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 4000 Series: 4045, 4047, 4343, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. |
| Width | 2mm-2200mm |
| Thickness | 0.1mm-200mm |
| Length | As required |
| Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc |
| Temper | 0-H112,T3-T8, T351-851 |
| Surface | Mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc |
| Shipment Time | Within 7-15 workdays after receiving deposit or L/C |
| Export Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package. Suit for all kinds of transport,or as required |
| Free Sample | Send Inquiry to get Free Sample for evaluation |
| Mechanical Property | ||||||||
| Aluminum Coil | Grade | Normal Temper | Temper | Tensile Strength N/mm² | Yield Strength N/mm² | Elongation% | Brinell Hardness HB | |
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) | 3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
Free samples
Factory direct sales, low price
Rich market forecast advice
Timely response
Advanced production line with solid production capacity.
Professional order system, complete operation.
Support third-party testing
