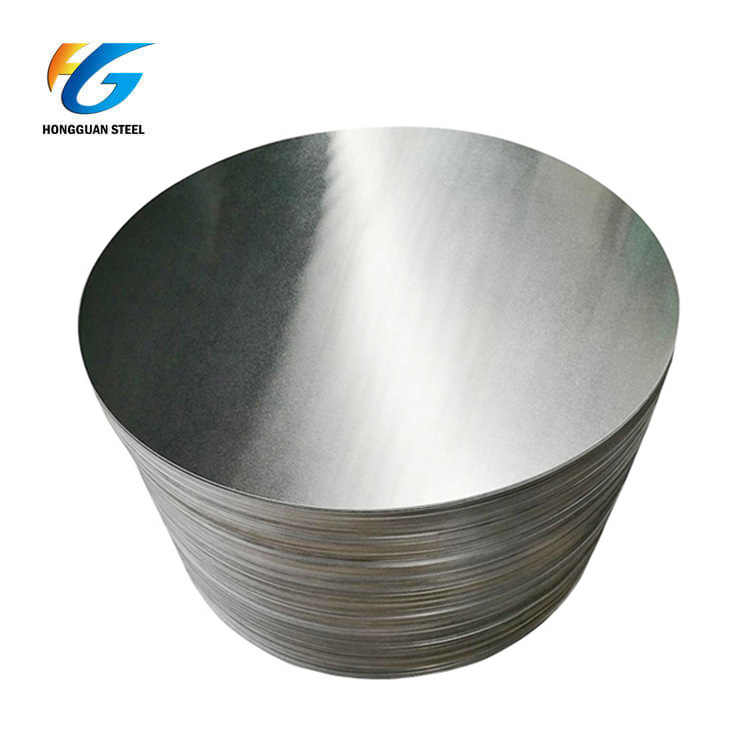

3003 Aluminum Circle Disc

Aluminum circle, also known as aluminum disc, is the best material for making aluminum round metal. Its thickness is usually 0.3mm-10mm and its diameter is 100mm-800mm. it is widely used in electronics, daily chemical, medicine, literature and education, auto parts and other industries. Especially 1xxx and 3xxx aluminum rounds are used for making kitchen utensils, cookware, such as non-stick pans, casseroles, pizza pans, pressure cookers, and other hardware, such as lamp shades, water heater housings, etc. Our aluminum rounds are manufactured in accordance with international standards ASTM B209, ASME SB 221, EN573 and EN485.

Quantity:
Availability:





Inquire Add to Basket

Model:
As customers' demands
Brand:
Hongguan

Product Description

3003 Aluminum Circle Disc Description

3003 aluminum alloy disc is light weight, good luster, beautiful appearance, light weight, non-toxic and harmless, moisture resistant, high strength, good current, heat conduction properties, processing properties and corrosion resistance.

Product Name	Aluminum Circle Disc
Alloy/Grade	1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series,8000 Series
Temper	O-H112,T3-T8,T351-T851
Thickness	0.13mm-6.5mm
Width	3mm-2600mm
Length	As per your requirements
Application	Industry,Decoration,Building,Packing,Pressing,Etc.
Surface treatment	Mill Finish,Coated,Powder Coated,Anodized,Polished mirror,Embossed,Etc.
Tolerances	As per your requirements
Delivery time	7-30 days after order confirmation
MOQ	1 ton
Loading Port	China Main Port
Coil ID	As per your requirements
Price terms	FOB, CIF, Etc.
Payment terms	T/T ,L/C

Aluminum Grade
Alloy	Temper	Thickness (MM)	Diameter (MM)	Application
1050, 1060, 1100	O, H14, H14, H16, H18, H22, H24, H26	1.0-6.0	100-1600	Ordinary cookware: pot lid, aluminum pot; lamp accessories: lampshade, street lamp
3003, 3304	O, H14, H14, H16, H18, H22, H24, H26	1.0-6.0	100-1600	Advanced cookware: pressure cooker, non-stick cookware
5052, 5754	O, H18, H32, H34, H36	1.0-6.0	100-1600	Road signs, high-grade cookware
8011	OH12, H14, H16, H18, H22, H24, H26	1.0-4.5	100-1600	Liner for cookware and ther

Aluminum Circle Disc

3003 Aluminum Circle Disc Chemical Properties

Chemical composition
Alloy (%)	AA 1050	AA 1070	AA 1100	AA 3003
Fe	0.40	0.25	1.00	0.70
Si	0.25	0.20	(Fr + Si)	0.60
Mg	0.05	0.03	-	-
Mn	0.05	0.03	0.05	1.00 _ 1.50
Cu	0.05	0.04	0.05	0.05 _ 0.20
Zn	0.05	0.04	0.10	0.10
Ti	0.03	0.03	0.05	0.10 (Ti + Zr)
Cr	-	-	-	-
Each (others)	0.03	0.03	0.05	0.05
Total (Others)	-	-	0.125	0.15
Al	99.50	99.70	99.00	Remaining

3003 Aluminum Circle Disc Mechanical Properties

Mechanical properties
Alloy (AA)	Temper	%E (min) (at 50 mm gauge length)	UTS (mpa)		Bend test: radius of bend (T=material thickness)
Alloy (AA)	Temper	%E (min) (at 50 mm gauge length)	Min	Max	Bend test: radius of bend (T=material thickness)
1050	O	29	55	95	close
	H14	6	95	125	1/2T
	H18	4	125	-	1T
1070	O	29	95	-	close
	H14	6	95	120	1/2T
	H18	4	120	-	1T
3003	O	25	90	130	close
	H14	5	130	180	1/2T
	H16	4	150	195	1T
	H18	3	170	-	3T
