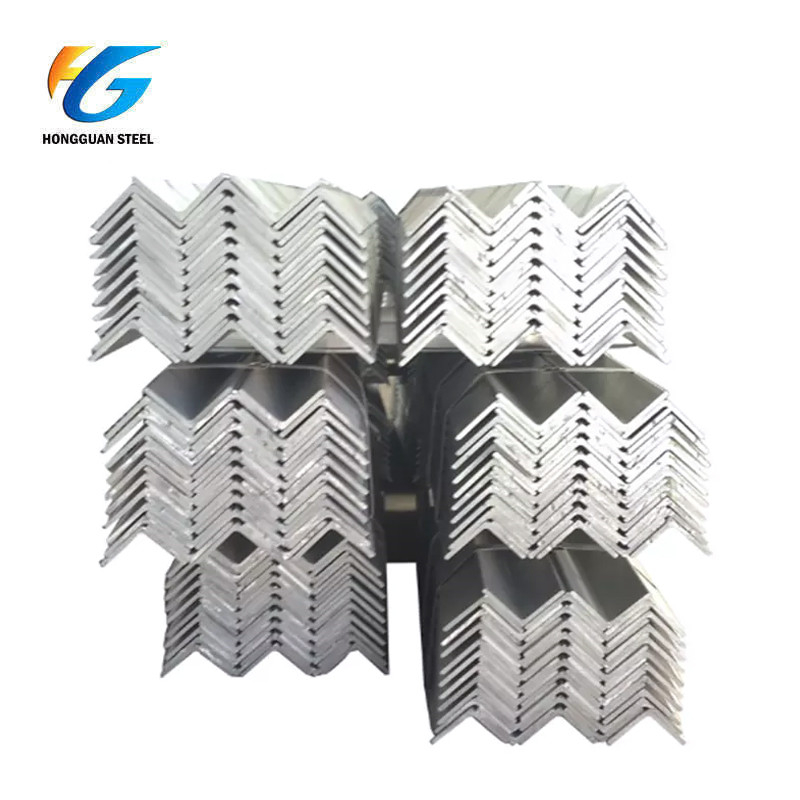

2507 Stainless Steel Angle

Stainless steel angle is a kind of carbon structural steel for construction. In use, it is required to have good weldability, plastic deformation properties and a certain amount of mechanical strength. The raw material billet for the production of stainless steel angle is low carbon billet, and the finished stainless steel angle is delivered in hot rolled, normalized or hot rolled condition. It is widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse racks, etc.
  • As customers' demands

  • Hongguan

Stainless Steel Angle 2507 Manufacturer&Supplier

2507 duplex stainless steel contains 25% chromium, 4% molybdenum and 7% nickel. It has high strength and corrosion resistance and is mainly used in chemical processing, petrochemical and subsea equipment. Also, it has excellent resistance to chlorine corrosion, high thermal conductivity and low coefficient of thermal expansion. In addition, higher mesh.

Molybdenum and nickel content also provide good resistance to pitting, crevice and uniform corrosion.

The impact strength of 2507 duplex stainless steel is also high. 2507 stainless steel should not be used for long periods of time in temperatures above 570°F, which will reduce the toughness of the stainless steel.

2507 is a ferritic-austenitic (duplex) stainless steel that combines many of the most favorable characteristics of ferritic and austenitic steels. It has excellent resistance to pitting, crevice and uniform corrosion due to the high content of chromium and molybdenum. The duplex microstructure ensures that the steel has a high resistance to stress corrosion cracking and high mechanical strength.

2507 stainless steel is used in the oil and gas industry; offshore Hippolyte oil platforms (heat exchanger tubes, water treatment and supply systems, fire-fighting systems, water spray systems, water stabilization systems; petrochemical equipment; desalination (desalination) equipment (and high-pressure pipes in equipment, seawater pipes); machinery and structural components requiring both high strength and high corrosion resistance; combustion (exhaust) gas purification equipment. Main components. 25Cr-7Ni-4Mo-0.27N

Standard Specification Of 2507 Angle Bar

Specifications ASTM A276
Diameter 3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length 2000mm, 2500mm,   3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
Surface Black 、 bright、 pickling   、etc
Finish Hot rolled plate (HR),   Cold rolled sheet (CR),
Form Angle, Round, Channel   Bar, Rings, Round Angle, Triangle, Hollow, Rectangle, T-Bar, Flat Bar,   Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half   Round Bar, Ingot, Billet, I/H Bar, Forging etc.

2507 Stainless Steel Angle1

2507 Stainless Steel Angle Surface

2507 Stainless Steel Angle Surface

2507 Stainless Steel Angle Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
2507 Min. / / / / / 24 3 6 0.24
Max. 0.03 1.2 0.8 0.035 0.02 26 5 8 0.32

2507 Stainless Steel Angle Mechanical Properties

Grade Tensile  Strength Yield  Strength Elongation Hardness
(MPa) 0.2% Proof  (MPa) (% in 50mm) Rockwell  B(HR B) Brinell(HB)
2507 795 550 15 29 -

Stainless Steel Angle Bar Production Workshop

2507 Stainless Steel Angle


2507 Stainless Steel Angle
