As customers' demands
Hongguan

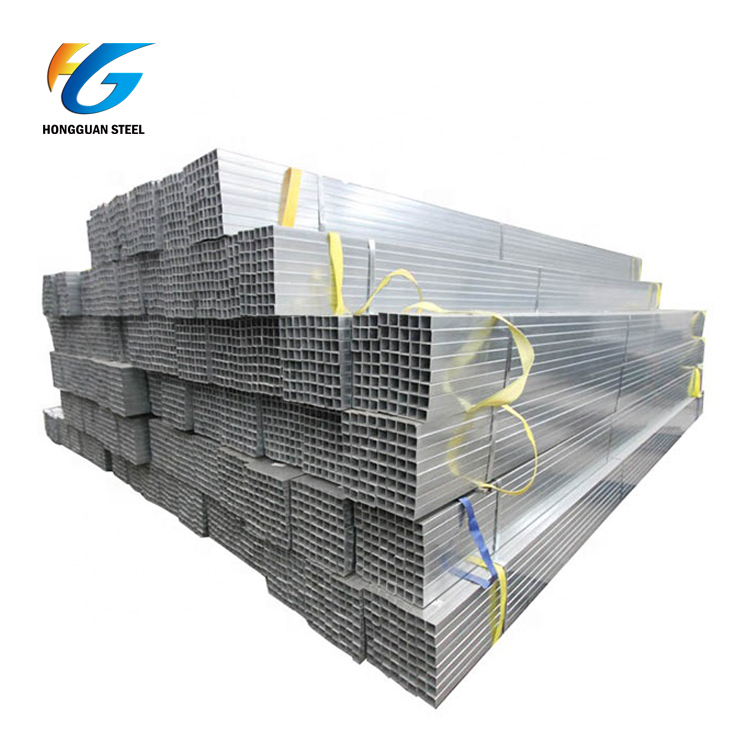

The 201 stainless steel square pipe is also known as stainless steel decorative pipe. It has an excellent combination of Cr, Fe and Mn, Ni. Si, N., and C. This pipe was originally designed to protect Ni. Different industries use 201 stainless steel square pipe, such as cement, pump, and petrochemicals. China 201 stainless steel square tube is 7.86 g/cm3 in density and can be used in both low- and high-temperature settings. This pipe is very formable and can be made using standard welding techniques. It is also ideal for sanitary applications because of its excellent mechanical properties.
Grade | 201 stainless steel square pipe/tube |
---|---|
Size | Outer Dia: 11.3mm- 660mm, According to customer requirements |
Wall Thickness: 0.5mm-100mm, According to customer requirements | |
Length:1-16m, According to customer requirements | |
Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
DIN 1.4301 Pipe table | SCH5、SCH10、SCH10S、SCH20、SCH30、SCH40、SCH40S、STD、SCH80、XS、SCH60、SCH80、SCH120、SCH140、SCH160、XXS |
Surface treatment | 2B, BA, 2D, 6K, 8K, NO.1, NO.4, HL, SB,or according to customer requirement |
Shape | Round, hydraulic, "U" bend or hollow, LSAW, boiler, straight, composite, rectangular, square, etc. |
Type | Welded, seamless, ERW, EFW, prefabricated, "U" shaped bent or hollow, hydraulic, LSAW, boiler, straight, coil, round, rectangular, square, etc. |
Surface | Flat end, beveled end, patterned tube |
Mark | Standard, grade, OD, thickness, length, furnace number (or according to customer requirements) |
Value-added services | Stretching and extending, polishing (electrical and commercial) annealing and pickling bending, machining, etc. according to the required size and length |
Inspection certificates | ASME, ASTM, EN, BS, GB, DIN, JIS, etc. Third party inspection accepted |
We can also cut, thread and groove 201 grade stainless steel pipe to meet your specifications. Pipe sizes ANSI/ ASME B36.10, B36.19, B2.1 |
Honggang steel is an ISO certified China 201 stainless square steel pipe exporter. Our Ss 201 stainless steel square pipe/tube is tested to international standards and specifications by DIN, JIS, EN, ASTM, etc. As a distributor and dealer of 201 stainless steel square tubes in your country/region, we are a trustworthy supplier. We have a large inventory in Asia, GCC, Gulf, the Middle East, UK, supplying more than 38 countries, and we provide various services as follows.
Support third-party inspection
Customized processing stainless steel one-stop sourcing
Provide free samples
Provide a full range of stainless steel customization
24 hours online, able to reply on time
Thank you for visiting Honggang steel. Please send us an email to start our first cooperation. For more details of each item, please contact our sales for information.
The 201 stainless steel square pipe is also known as stainless steel decorative pipe. It has an excellent combination of Cr, Fe and Mn, Ni. Si, N., and C. This pipe was originally designed to protect Ni. Different industries use 201 stainless steel square pipe, such as cement, pump, and petrochemicals. China 201 stainless steel square tube is 7.86 g/cm3 in density and can be used in both low- and high-temperature settings. This pipe is very formable and can be made using standard welding techniques. It is also ideal for sanitary applications because of its excellent mechanical properties.
Grade | 201 stainless steel square pipe/tube |
---|---|
Size | Outer Dia: 11.3mm- 660mm, According to customer requirements |
Wall Thickness: 0.5mm-100mm, According to customer requirements | |
Length:1-16m, According to customer requirements | |
Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
DIN 1.4301 Pipe table | SCH5、SCH10、SCH10S、SCH20、SCH30、SCH40、SCH40S、STD、SCH80、XS、SCH60、SCH80、SCH120、SCH140、SCH160、XXS |
Surface treatment | 2B, BA, 2D, 6K, 8K, NO.1, NO.4, HL, SB,or according to customer requirement |
Shape | Round, hydraulic, "U" bend or hollow, LSAW, boiler, straight, composite, rectangular, square, etc. |
Type | Welded, seamless, ERW, EFW, prefabricated, "U" shaped bent or hollow, hydraulic, LSAW, boiler, straight, coil, round, rectangular, square, etc. |
Surface | Flat end, beveled end, patterned tube |
Mark | Standard, grade, OD, thickness, length, furnace number (or according to customer requirements) |
Value-added services | Stretching and extending, polishing (electrical and commercial) annealing and pickling bending, machining, etc. according to the required size and length |
Inspection certificates | ASME, ASTM, EN, BS, GB, DIN, JIS, etc. Third party inspection accepted |
We can also cut, thread and groove 201 grade stainless steel pipe to meet your specifications. Pipe sizes ANSI/ ASME B36.10, B36.19, B2.1 |
Honggang steel is an ISO certified China 201 stainless square steel pipe exporter. Our Ss 201 stainless steel square pipe/tube is tested to international standards and specifications by DIN, JIS, EN, ASTM, etc. As a distributor and dealer of 201 stainless steel square tubes in your country/region, we are a trustworthy supplier. We have a large inventory in Asia, GCC, Gulf, the Middle East, UK, supplying more than 38 countries, and we provide various services as follows.
Support third-party inspection
Customized processing stainless steel one-stop sourcing
Provide free samples
Provide a full range of stainless steel customization
24 hours online, able to reply on time
Thank you for visiting Honggang steel. Please send us an email to start our first cooperation. For more details of each item, please contact our sales for information.
Chemical composition and mechanical properties of 201 stainless steel tube/pipe | |||||||||
---|---|---|---|---|---|---|---|---|---|
Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
201 | 0.15 | ≤1 | 7.5 | ≤0.06 | ≤0.03 | 3.50/5.50 | 16.0/18.0 | - | HB≤217,HRB≤95, HV≤260 |
Chemical composition and mechanical properties of 201 stainless steel tube/pipe | |||||||||
---|---|---|---|---|---|---|---|---|---|
Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
201 | 0.15 | ≤1 | 7.5 | ≤0.06 | ≤0.03 | 3.50/5.50 | 16.0/18.0 | - | HB≤217,HRB≤95, HV≤260 |
AISI Grade: 201
UNS: S 201 00
JIS Grade: SUS 201
EN/DIN Symbolical: X12CrMnNiN17-7-5
EN/DIN Numerical: (EN) 1.4372
AISI Grade: 201
UNS: S 201 00
JIS Grade: SUS 201
EN/DIN Symbolical: X12CrMnNiN17-7-5
EN/DIN Numerical: (EN) 1.4372
