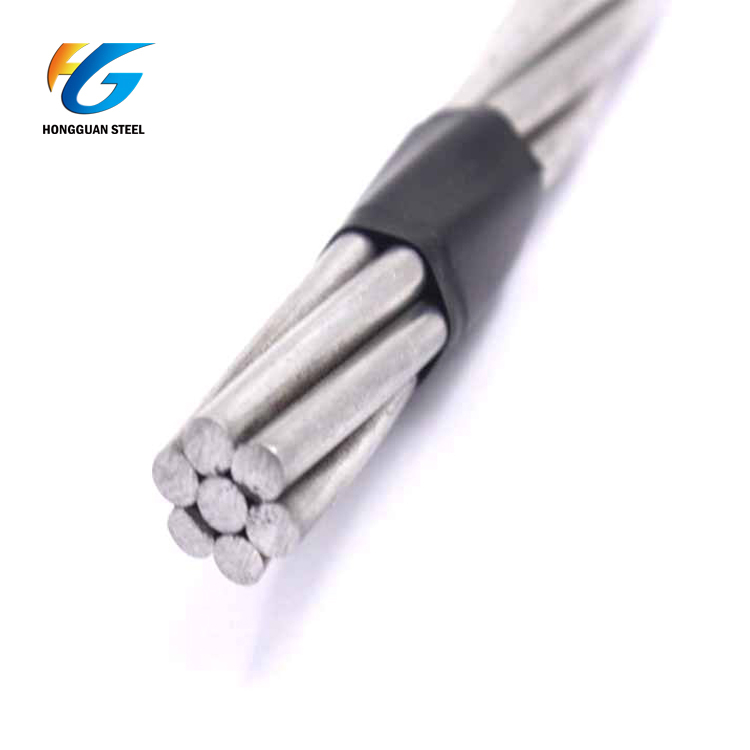

Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.
Product Description
Application:
- Used for electric power, communication, processing support line, underground support wire and messenger wire.
- S-S cable is used as support wire of telephone communication cable
- It is also used as support wire of internet communication cable.
- It is also used for fish fraps.
- It is also used for out-casing which performs redrawing after plating.
Features
- Normal tensile, high tensile and Extra-high tensile.
Construction
- Galvanized Steel Wire Strand is made to ASTM B498; ASTM A 475; BS 183,IEC 888 etc.
- The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel.
- Galvanized wire for cable application is available in a Class A coating; Class B coating and Class C coating.
- Class A coatings are smoother, however less corrosion resistant than heavy galvanized coatings and are often used in normal wire working applications. Some typical end users include cages, bucket handles, coat hangers and baskets.
- Class B and Class C coatings are used in conditions where atmospheric corrosion is severe. End users include crop support wires where chemicals are used, pool fencing or chain mesh in coastal areas.
- Diameter Range of steel wire: 1.57 -4.00 mm.
Standards
- Stay wire,Guy Wire (Galvanized Steel Wire Strand) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Click on the link for strand structure, diameters and other technical features >>>
Galvanized steel wire strand | ||||||||
In (mm) Dia | No of wire | ln (mm) Wire Dia | Weight lb/1000ft (kg/km) | Common Grade lbf (KN) | Siemens Martin Grade lbf (KN) | High Strength Grade lbf (KN) | Extra High Strength Grade lbf (KN) | Zinc Coating Mass (g/m2) |
1/8 (3.18) | 7 | 0.041 (1.04) | 32(48) | 540 (2.402) | 910 (4.048) | 1330 (5.916) | 1830 (8.140) | 122 |
5/32 (3.97) | 7 | 0.052 (1.32) | 51 (76) | 870 (3.870) | 1470 (6.539) | 2140 (9.519) | 2940 (13.078) | 122 |
3/16 (4.76) | 7 | 0.062 (1.57) | 73 (109) | 1150 (5.115) | 1900 (8.452) | 2850 (12.677) | 3990 (17.748) | 153 |
7/32 (5.56) | 3 | 0.104 (2.64) | 88 (131) | 1400 (6.228) | 2340 (10.409) | 3500 (15.569) | 4900 (21.796) | 244 |
7/32 (5.56) | 7 | 0.072 (1.83) | 98 (146) | 1540 (6.850) | 2560 (11.387) | 3850 (17.126) | 5400 (24.020) | 153 |
1/4 (6.35) | 3 | 0.120 (3.05) | 117 (174) | 1860 (8.274) | 3040 (13.523) | 4730 (21.040) | 6740 (29.981) | 259 |
1/4 (6.35) | 7 | 0.08 (2.03) | 121 (180) | 1900 (8.452) | 3150 (14.012) | 4750 (21.129) | 6650 (29.581) | 183 |
9/32 (7.14) | 3 | 0.130 (3.30) | 137 (204) | 2080 (9.252) | 3380 (15.035) | 5260 (23.398) | 7500 (33.362) | 259 |
9/32 (7.14) | 7 | 0.093 (2.36) | 164 (244) | 2570 (11.432) | 4250 (18.905) | 6400 (28.469) | 8950 (39.812) | 214 |
5/16 (7.94) | 3 | 0.145 (3.68) | 171 (255) | 2490 (11.076) | 4090 (18.193) | 6350 (28.246) | 9100 (40.479) | 275 |
5/16 (7.94) | 7 | 0.104 (2.64) | 205 (305) | 3200(14.234) | 5350 (23.798) | 8000 (35.586) | 11200 (49.820) | 244 |
3/8 (9.52) | 3 | 0.165 (4.19) | 220 (328) | 3330 (14.813) | 5569 (24.732) | 8360 (37.187) | 11800 (52.489) | 275 |
3/8 (9.52) | 7 | 0.120 (3.05) | 273 (407) | 4250 (18.905) | 6950 (30.915) | 10800 (48.040) | 15400 (68.503) | 259 |
7/16 (11.11) | 7 | 0.145 (3.68) | 399 (595) | 5700 (25.355) | 9350 (41.591) | 14500 (64.499) | 20800 (92.523) | 275 |
9/16 (14.29) | 7 | 0.188 (4.78) | 671 (1000) | 9600 (42.703) | 15700 (69.837) | 24500 (108.981) | 35000 (155.688) | 305 |
9/16 (14.29) | 19 | 0.113 (2.87) | 637 (949) | 9640 (42.881) | 16100 (71.616) | 24100 (107.202) | 33700 (149.905) | 244 |
5/8 (15.88) | 19 | 0.125 (3.18) | 796 (1186) | 11000 (49.930) | 18100 (80.513) | 28100 (124.995) | 40200 (178.819) | 259 |
3/4 (19.05) | 19 | 0.150 (3.81) | 1155 (1721) | 16000 (71.172) | 26200 (116.543) | 40800 (181.487) | 58300 (259.331) | 275 |
Description:
1.Galvanized steel wire rope refers to any steel wire product that has been galvanized to improve its corrosion resistance.
2.The process usually involves immersing the finished wire in a heated zinc compound bath to form a scratch and corrosion resistant coating on the entire surface of the wire
3.Zinc based coating grades for steel strand / stay wires: Class A, class B and class C
Shandong Hongguan Steel Group Co., Ltd. is located in the city of Jinan, Shandong Province, China. We are a company mainly producing and processing carbon steel plate/coil and rod, stainless steel plate/coil/rod, cold rolled sheet/coil, aluminum coil/plate, galvanized steel plate/coil, color coated galvanized sheet and other high quality products.
Product Description
Application:
- Used for electric power, communication, processing support line, underground support wire and messenger wire.
- S-S cable is used as support wire of telephone communication cable
- It is also used as support wire of internet communication cable.
- It is also used for fish fraps.
- It is also used for out-casing which performs redrawing after plating.
Features
- Normal tensile, high tensile and Extra-high tensile.
Construction
- Galvanized Steel Wire Strand is made to ASTM B498; ASTM A 475; BS 183,IEC 888 etc.
- The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel.
- Galvanized wire for cable application is available in a Class A coating; Class B coating and Class C coating.
- Class A coatings are smoother, however less corrosion resistant than heavy galvanized coatings and are often used in normal wire working applications. Some typical end users include cages, bucket handles, coat hangers and baskets.
- Class B and Class C coatings are used in conditions where atmospheric corrosion is severe. End users include crop support wires where chemicals are used, pool fencing or chain mesh in coastal areas.
- Diameter Range of steel wire: 1.57 -4.00 mm.
Standards
- Stay wire,Guy Wire (Galvanized Steel Wire Strand) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Click on the link for strand structure, diameters and other technical features >>>
Galvanized steel wire strand | ||||||||
In (mm) Dia | No of wire | ln (mm) Wire Dia | Weight lb/1000ft (kg/km) | Common Grade lbf (KN) | Siemens Martin Grade lbf (KN) | High Strength Grade lbf (KN) | Extra High Strength Grade lbf (KN) | Zinc Coating Mass (g/m2) |
1/8 (3.18) | 7 | 0.041 (1.04) | 32(48) | 540 (2.402) | 910 (4.048) | 1330 (5.916) | 1830 (8.140) | 122 |
5/32 (3.97) | 7 | 0.052 (1.32) | 51 (76) | 870 (3.870) | 1470 (6.539) | 2140 (9.519) | 2940 (13.078) | 122 |
3/16 (4.76) | 7 | 0.062 (1.57) | 73 (109) | 1150 (5.115) | 1900 (8.452) | 2850 (12.677) | 3990 (17.748) | 153 |
7/32 (5.56) | 3 | 0.104 (2.64) | 88 (131) | 1400 (6.228) | 2340 (10.409) | 3500 (15.569) | 4900 (21.796) | 244 |
7/32 (5.56) | 7 | 0.072 (1.83) | 98 (146) | 1540 (6.850) | 2560 (11.387) | 3850 (17.126) | 5400 (24.020) | 153 |
1/4 (6.35) | 3 | 0.120 (3.05) | 117 (174) | 1860 (8.274) | 3040 (13.523) | 4730 (21.040) | 6740 (29.981) | 259 |
1/4 (6.35) | 7 | 0.08 (2.03) | 121 (180) | 1900 (8.452) | 3150 (14.012) | 4750 (21.129) | 6650 (29.581) | 183 |
9/32 (7.14) | 3 | 0.130 (3.30) | 137 (204) | 2080 (9.252) | 3380 (15.035) | 5260 (23.398) | 7500 (33.362) | 259 |
9/32 (7.14) | 7 | 0.093 (2.36) | 164 (244) | 2570 (11.432) | 4250 (18.905) | 6400 (28.469) | 8950 (39.812) | 214 |
5/16 (7.94) | 3 | 0.145 (3.68) | 171 (255) | 2490 (11.076) | 4090 (18.193) | 6350 (28.246) | 9100 (40.479) | 275 |
5/16 (7.94) | 7 | 0.104 (2.64) | 205 (305) | 3200(14.234) | 5350 (23.798) | 8000 (35.586) | 11200 (49.820) | 244 |
3/8 (9.52) | 3 | 0.165 (4.19) | 220 (328) | 3330 (14.813) | 5569 (24.732) | 8360 (37.187) | 11800 (52.489) | 275 |
3/8 (9.52) | 7 | 0.120 (3.05) | 273 (407) | 4250 (18.905) | 6950 (30.915) | 10800 (48.040) | 15400 (68.503) | 259 |
7/16 (11.11) | 7 | 0.145 (3.68) | 399 (595) | 5700 (25.355) | 9350 (41.591) | 14500 (64.499) | 20800 (92.523) | 275 |
9/16 (14.29) | 7 | 0.188 (4.78) | 671 (1000) | 9600 (42.703) | 15700 (69.837) | 24500 (108.981) | 35000 (155.688) | 305 |
9/16 (14.29) | 19 | 0.113 (2.87) | 637 (949) | 9640 (42.881) | 16100 (71.616) | 24100 (107.202) | 33700 (149.905) | 244 |
5/8 (15.88) | 19 | 0.125 (3.18) | 796 (1186) | 11000 (49.930) | 18100 (80.513) | 28100 (124.995) | 40200 (178.819) | 259 |
3/4 (19.05) | 19 | 0.150 (3.81) | 1155 (1721) | 16000 (71.172) | 26200 (116.543) | 40800 (181.487) | 58300 (259.331) | 275 |
Description:
1.Galvanized steel wire rope refers to any steel wire product that has been galvanized to improve its corrosion resistance.
2.The process usually involves immersing the finished wire in a heated zinc compound bath to form a scratch and corrosion resistant coating on the entire surface of the wire
3.Zinc based coating grades for steel strand / stay wires: Class A, class B and class C
